Atlas Auto Equipment
Atlas Automotive ATEATTD-414 - 14,000 lb 4 Post Vehicle Lift - Commercial Grade
- Regular price
- $8,349.00
- Regular price
- $8,349.00
Safety Requirements
Safety Requirements
IMPORTANT INSTALLATION REQUIREMENTS
2 & 4 post vehicle lifts must be installed on a concrete slab with a minimum thickness of 4 inches and 6.5 inches for heavier lifts and a minimum compressive strength of 3,000 PSI. Scissor lifts must be installed on a concrete slab with a minimum thickness of 3.9 inches and a minimum compressive strength of 3,000 PSI.
Installation on inadequate or improperly prepared concrete may result in lift instability, equipment failure, serious injury, or death.
It is the customer’s responsibility to verify that all installation surfaces and site conditions meet the manufacturer’s specifications prior to purchase and installation.
Forge Work Supply assumes no liability for damage, equipment failure, injuries, or losses resulting from improper installation, insufficient concrete specifications, or failure to follow manufacturer installation requirements.
Freight Shipping
Freight Shipping
Please review the following freight shipping information carefully before placing your order.
Shipping Delays & Availability
Seasonal shipping delays may occur. In some cases, orders may take up to 3 weeks for delivery. If you require expedited processing or need to confirm inventory availability prior to ordering, please contact our team for assistance.
Shipping Coverage
Freight shipping is available within the contiguous United States (lower 48 states).
Estimated fulfillment time for freight orders is typically 6–10 business days.
Two-Post, Four-Post & Scissor Lift Deliveries
Customers are required to provide a forklift or suitable unloading equipment at the time of delivery.
Additional Freight Services
The following optional freight services are available for an additional fee:
- Residential Delivery: $80
- Liftgate Service: $80
Please note: Liftgate service is not available for two-post lifts, four-post lifts, and scissor lifts. Contact us before ordering to confirm availability.
Customer Responsibilities
Customers are responsible for unloading freight shipments from the delivery truck.
A forklift, loading dock, or appropriate unloading equipment is strongly recommended for all heavy equipment deliveries.
Customers are responsible for any additional charges incurred due to:
- Failed delivery attempts
- Inability to unload freight at the delivery location
- Incorrect delivery information provided at checkout
Shipment Inspection & Damage Claims
All shipments must be carefully inspected before signing the Bill of Lading or delivery receipt.
- Any visible damage, shortages, or missing items must be noted on the delivery receipt at the time of delivery.
- Do not sign for damaged or incomplete shipments without documenting the issue with the carrier.
- Concealed damage or shortages must be reported within 48 hours of delivery.
Failure to document freight damage at the time of delivery may limit the ability to file a freight claim.
If no damage or shortages are noted upon delivery, the shipment will be considered received in acceptable condition.
Contact Information
For freight assistance, delivery questions, or damage claims, please contact our Customer Support team:
Phone: (866) 671-5917
Email: support@forgeworksupply.com
What is your Return and Refund Policy?
What is your Return and Refund Policy?
Returns and refunds for this item are subject to Forge Work Supply’s standard Return and Refund Policy.
Customers may request a return within 30 days of delivery, provided the item is unused, undamaged, and in its original packaging. Proof of purchase is required.
Change-of-mind returns may be subject to a restocking fee. Defective, damaged, incorrect, or lost items are eligible for a replacement or full refund, as applicable.
Refunds are issued to the original payment method after the returned item is received and inspected.
Atlas Auto Equipment
Atlas Automotive ATEATTD-414 - 14,000 lb 4 Post Vehicle Lift - Commercial Grade
- Regular price
- $8,349.00
Description
Heavy-Duty 14,000 lb Capacity. Commercial-Grade Construction. Extra-Tall, Extra-Wide & Extra-Long Design for Professional Shops and Heavy-Duty Vehicles.
The Atlas Automotive 414 14,000 lb 4-Post Vehicle Lift is designed for professional automotive shops, commercial service facilities, and vehicle owners who need additional lifting capacity and working space for larger vehicles. With a 14,000 lb lifting capacity and an extended four-post configuration, the Atlas 414 accommodates a wide range of compatible passenger vehicles, SUVs, full-size pickups, and heavy-duty trucks.
Built for demanding shop environments, the Atlas 414 features a heavy-duty commercial-grade design with diamond-plated steel runways, a high-strength cable system, and an oversized hydraulic cylinder. Its free-standing, portable configuration provides flexibility for shop layouts, while the air-operated single-point lock release and lock ladder system with a double-lock safety design support convenient operation and secure lifting. An air supply is required for the lock release and is not included.
With a maximum lifting height of 80 inches to the top of the runways and 71 1/4 inches of clearance underneath, the Atlas 414 provides substantial space for vehicle storage and service applications. Its 208 5/8-inch runways, 116-inch clearance between columns, and 102 1/8-inch drive-through dimension provide room for many longer and wider vehicles. The lift also supports compatible rolling bridge jacks, available separately, for additional wheel and suspension service access.
The Atlas 414 operates on 220V single-phase power and requires hydraulic oil, which is not included. Its large commercial-grade construction makes it suitable for professional automotive environments where lifting capacity and vehicle clearance are priorities. Before purchasing, verify the lift dimensions against your available floor space, ceiling height, concrete specifications, vehicle weight, wheelbase, and track width.
Perfect for: Professional automotive shops • Commercial service facilities • Full-size pickups • Heavy-duty vehicles • Vehicle storage • Long-wheelbase vehicles • Compatible rolling bridge jack applications
Benefits of the Atlas Automotive 414
The 14,000 lb capacity and heavy-duty construction make the Atlas 414 suitable for professional shops and compatible larger vehicles. Always verify vehicle weight and proper lifting-point requirements before use.
The 208 5/8-inch runways, 116-inch clearance between columns, and 102 1/8-inch drive-through dimension provide additional room for many larger vehicles. Confirm wheelbase, track width, and overall vehicle dimensions before purchasing.

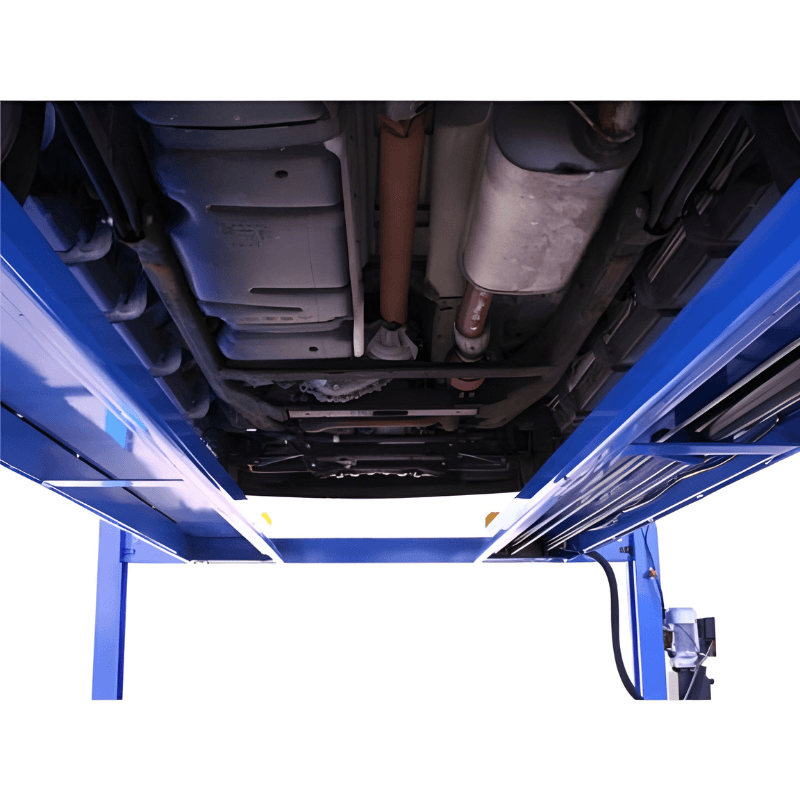

With 71 1/4 inches of clearance underneath the runways, the Atlas 414 provides useful space for vehicle storage and compatible service applications. Actual usable clearance depends on vehicle dimensions and the intended application.

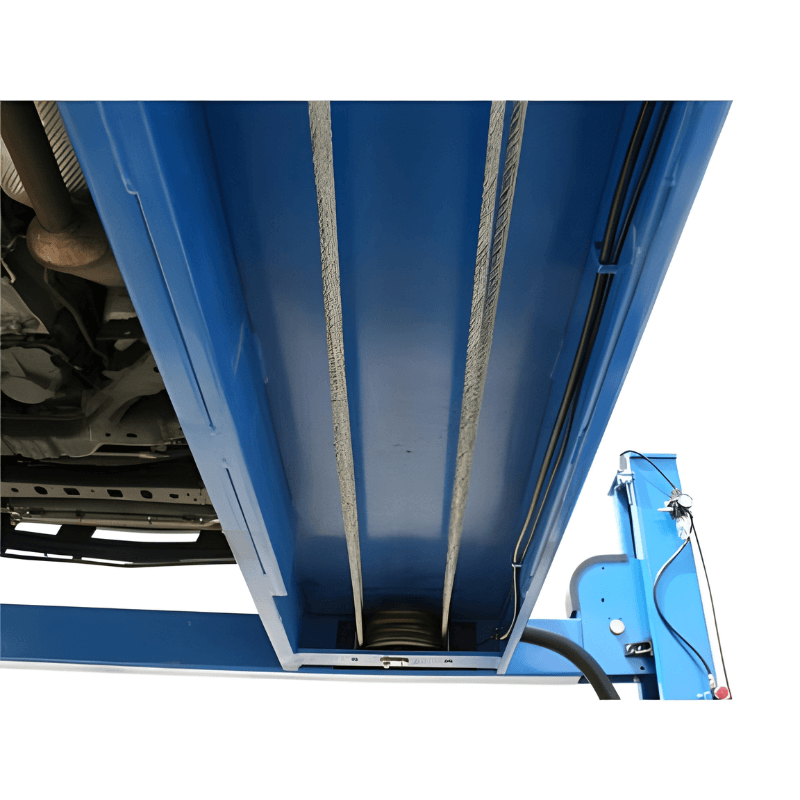

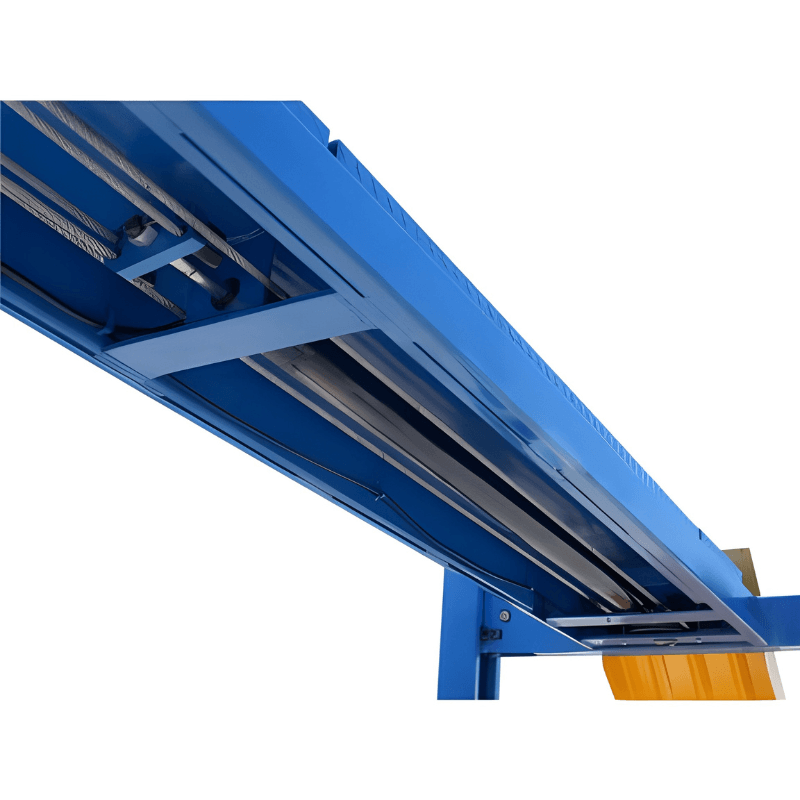

The oversized hydraulic cylinder and high-strength cable system are designed to support the lift's heavy-duty capacity and demanding shop applications.
The air-operated single-point lock release and lock ladder with a double-lock safety system provide convenient lock operation and additional security. A suitable compressed-air supply is required for the lock release and must be provided separately.
The Atlas 414 can be used with compatible rolling bridge jacks, such as the optional Atlas RJ8000BK, sold separately. This can provide additional flexibility for wheel, brake, and suspension service when configured according to manufacturer requirements.
Diamond-plated runways, a powder-coated finish, and a five-year structural warranty with a two-year hydraulic parts-only warranty make the Atlas 414 a practical option for demanding automotive environments.
Features
Lift Capacity & Design
- 14,000 lb lifting capacity
- Heavy-duty commercial-grade construction
- Extra-tall, extra-wide, and extra-long configuration
- Free-standing, portable four-post design
- Diamond-plated steel runways
- Powder-coated finish
Lifting Height & Runways
- 80-inch maximum lifting height
- 71 1/4-inch clearance underneath the runways
- 208 5/8-inch runway length
- 20-inch runway width
- 8 3/4-inch runway thickness
- Steel approach ramps included
Lock System & Safety

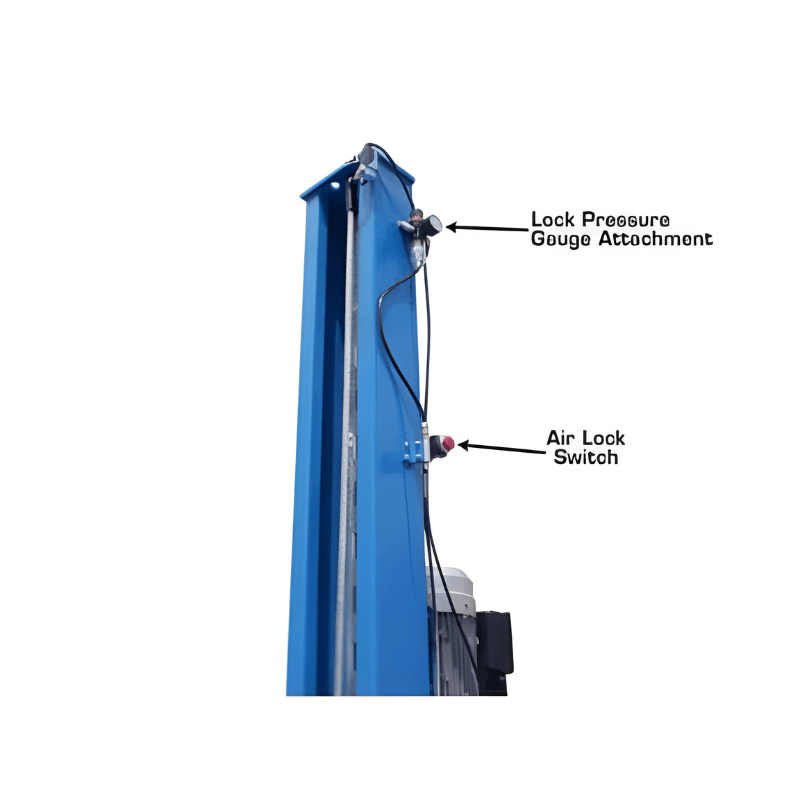

- Air-operated single-point lock release

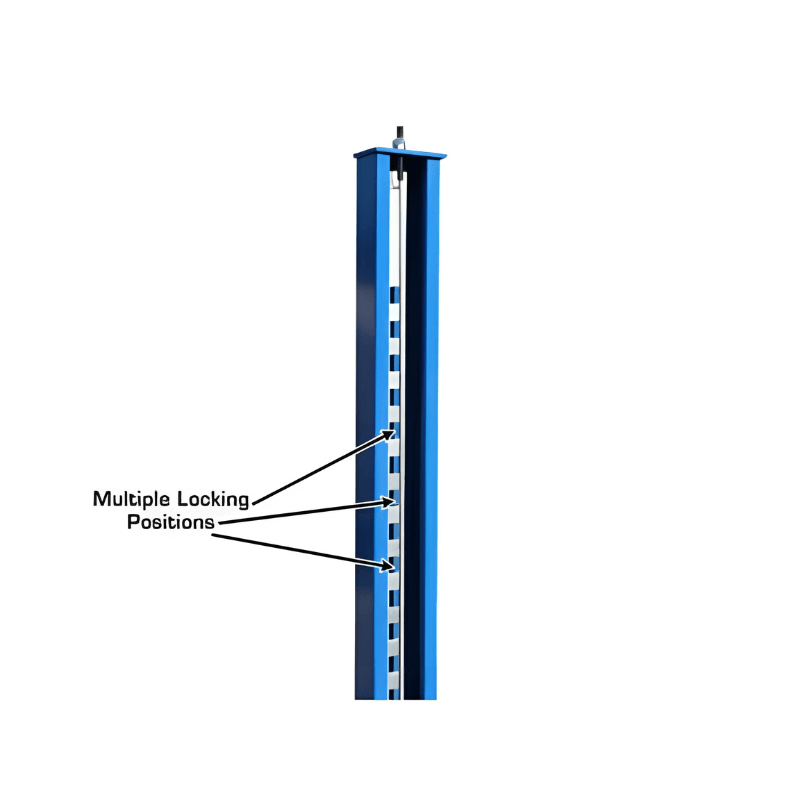

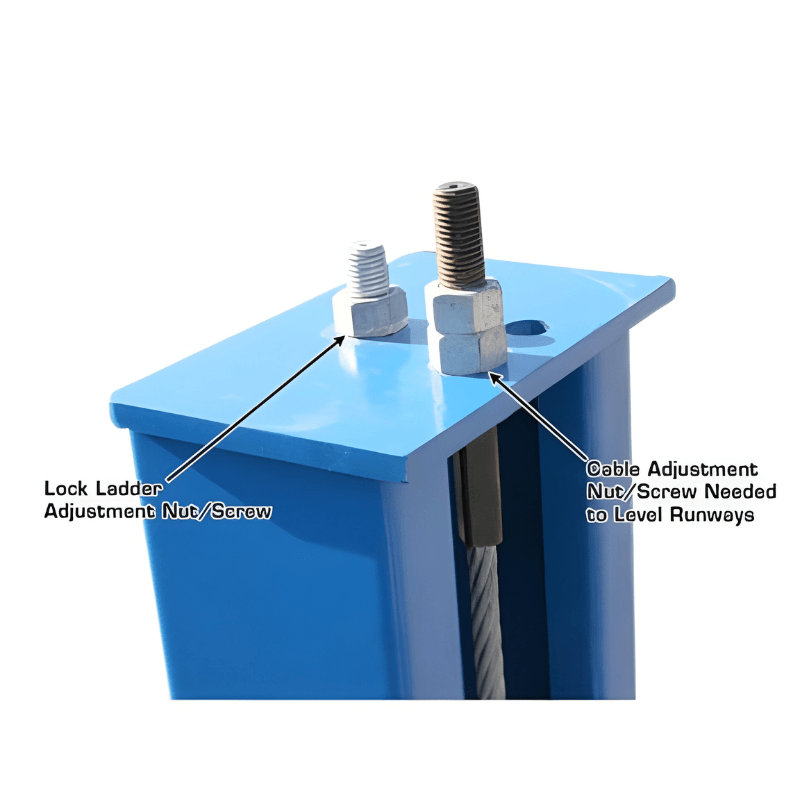

- Lock ladder system
- Double-lock safety system
- Compressed-air supply required and not included
- Follow manufacturer instructions for safe lifting and storage
Vehicle Fit & Clearance
- Maximum wheelbase: 197 inches
- Clearance between columns: 116 inches
- Length between columns: 197 1/4 inches
- Drive-through dimension: 102 1/8 inches
- Width between runways: 46 7/8 inches
- Verify vehicle dimensions and compatibility before purchase
Compatibility & Accessories
- Steel approach ramps included

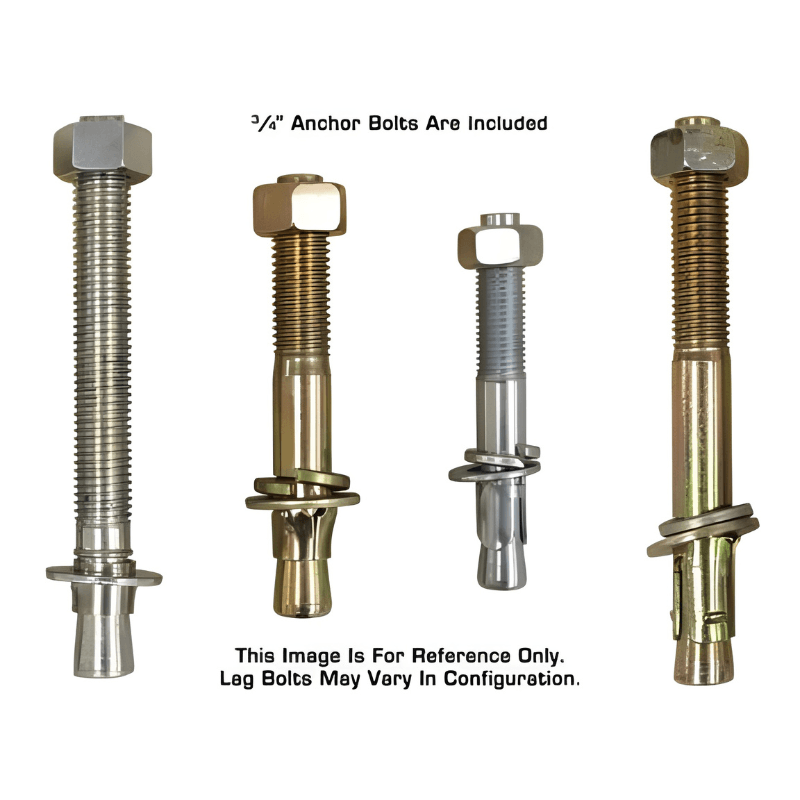

- Mounting hardware included
- Compatible rolling bridge jacks available separately
- Optional Atlas RJ8000BK rolling jack
- Free-standing, portable design
Power & Installation
- 220V single-phase electrical supply
- Recommended 30-amp breaker
- Minimum 6-inch-thick concrete
- Concrete strength: 3,000 PSI minimum
- Hydraulic oil: 3–5 gallons of AW32 or AW46, not included
- Compressed-air supply required for the lock release
Specifications
General
- Manufacturer: Atlas Automotive Equipment
- Model: 414 (ATTD-414)
- Product Type: 4-Post Vehicle Lift
- Lifting Capacity: 14,000 lbs
- Configuration: Four-post, free-standing, portable design
- Construction: Commercial-grade, powder-coated finish
- Runway Surface: Diamond-plated steel
Lifting Performance
- Lifting Height: 80 in (6 ft 8 in)
- Under-Runway Clearance: 71 1/4 in (5 ft 11 1/4 in)
- Maximum Wheelbase: 197 in (16 ft 5 in)
- Lock System: Air-operated single-point release
- Safety System: Lock ladder with double-lock safety design
- Hydraulic Cylinder: Oversized design
- Cable System: High-strength design
Structure & Dimensions
- Column Height: 91 1/8 in (7 ft 7 1/8 in)
- Overall Width Without Motor: 130 7/8 in (10 ft 10 7/8 in)
- Overall Width With Motor: 138 7/8 in (11 ft 6 7/8 in)
- Overall Length with Approach Ramp: 255 in (21 ft 3 in)
- Runway Length: 208 5/8 in (17 ft 4 5/8 in)
- Runway Width: 20 in
- Runway Thickness: 8 3/4 in
- Width Between Runways: 46 7/8 in
- Width Between Runways with Rails: 44 3/8 in
- Outside Runway to Outside Runway: 86 7/8 in (7 ft 2 7/8 in)
- Clearance Between Columns: 116 in (9 ft 8 in)
- Length Between Columns: 197 1/4 in (16 ft 5 1/4 in)
- Drive-Through Dimension: 102 1/8 in (8 ft 6 1/8 in)
Power & Installation
- Electrical Requirement: 220V single-phase
- Recommended Breaker: 30 amp
- Concrete Thickness: Minimum 6 in
- Concrete Strength: 3,000 PSI minimum
- Hydraulic Oil: 3–5 gallons of AW32 or AW46
- Hydraulic Oil Included: No
- Air Supply: Required for lock release, 85–115 PSI
- Air Supply Included: No
Included Accessories & Warranty
- Steel approach ramps
- Mounting hardware
- Structural Warranty: 5 years
-
Hydraulic Warranty: 2 years, parts only
Shipping & Delivery

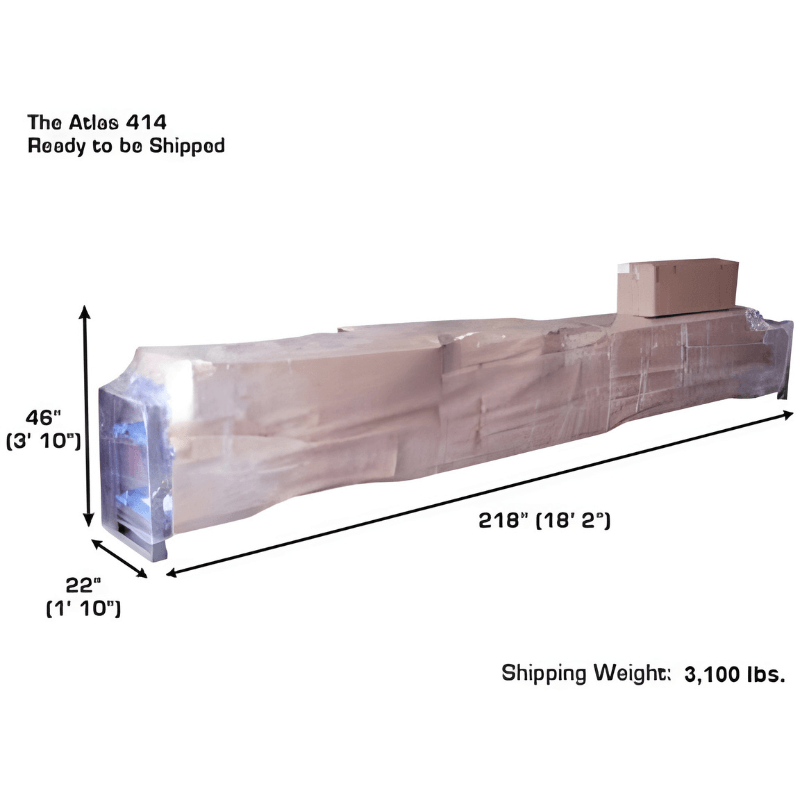

- Shipping Weight: 3,100 lbs
- Pallet Dimensions: 218 in L x 46 in H x 22 in W
- Freight Terminal Delivery: Unavailable due to oversized shipment
- Warehouse Pickup: Available at designated pickup locations
- Pickup Locations: Atlanta, GA; Dallas, TX; Indianapolis, IN; Phoenix, AZ; Somerset, NJ
Downloads
- Atlas Automotive 414 Product Manual (PDF)
- Atlas 414 Lift Diagram
- Atlas 4 Post Lift Bleeding Manual (PDF)
Important: The Atlas 414 requires a suitable concrete surface with a minimum thickness of 6 inches and a minimum strength of 3,000 PSI. A 220V single-phase electrical supply is required, with a 30-amp breaker recommended. Hydraulic oil and the compressed-air supply for the lock release are not included. Verify vehicle weight, wheelbase, track width, and overall dimensions before use. Due to its oversized dimensions, freight-terminal delivery is unavailable. Follow all manufacturer installation, operating, and safety instructions.
-
