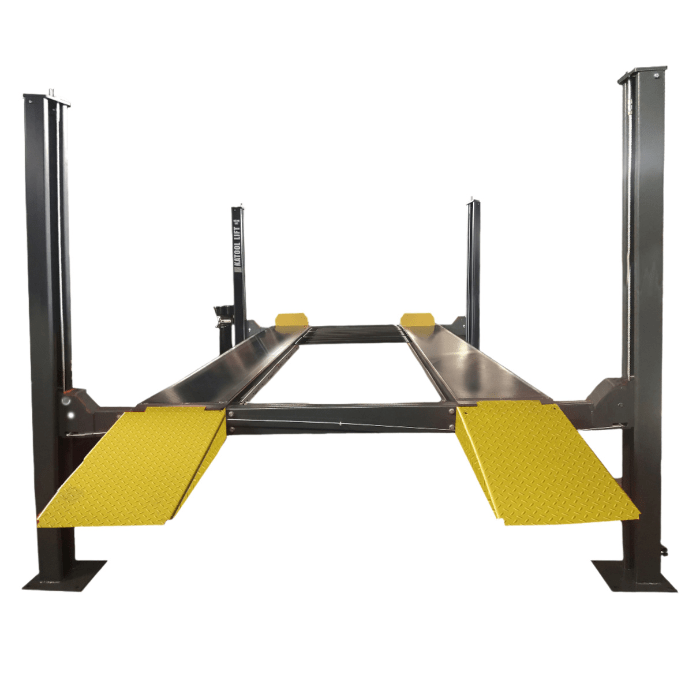

files/The_Front_side_view_of_the_Katool_4H850_8_500lb_Four-Post_Auto_Lift_not_holding_a_car.png
-

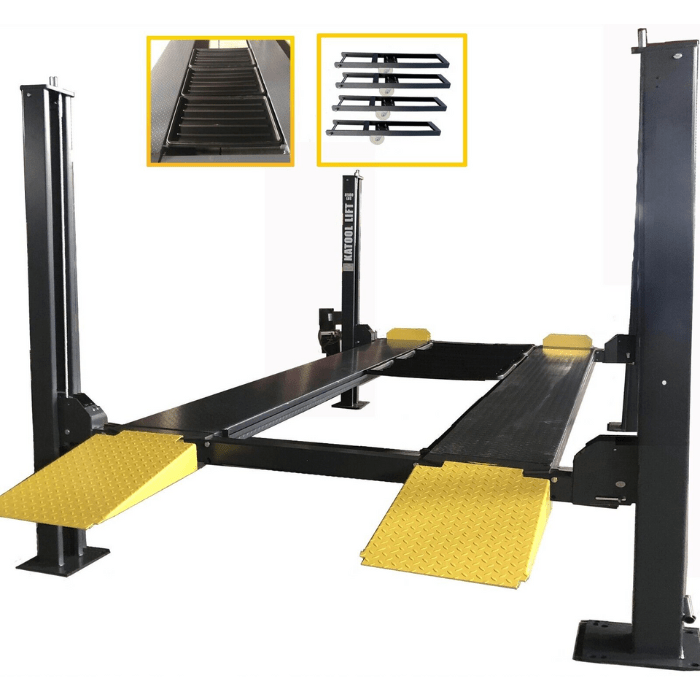

files/Katool_4-post_car_lift_with_yellow_diamond_plate_ramps_and_included_caster_kit_drip_trays_and_jack_tray.png
-

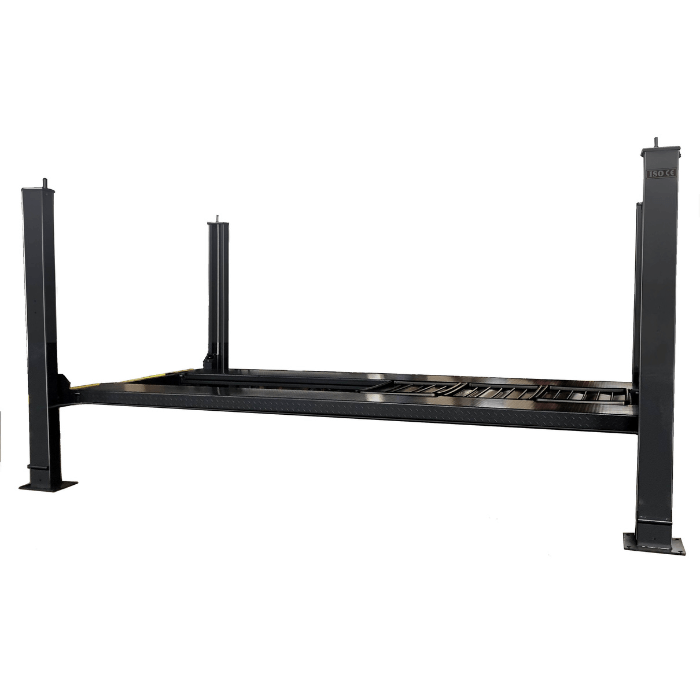

files/Side_view_of_the_Katool_4H850_8_500lb_Four-Post_Auto_Lift.png
-

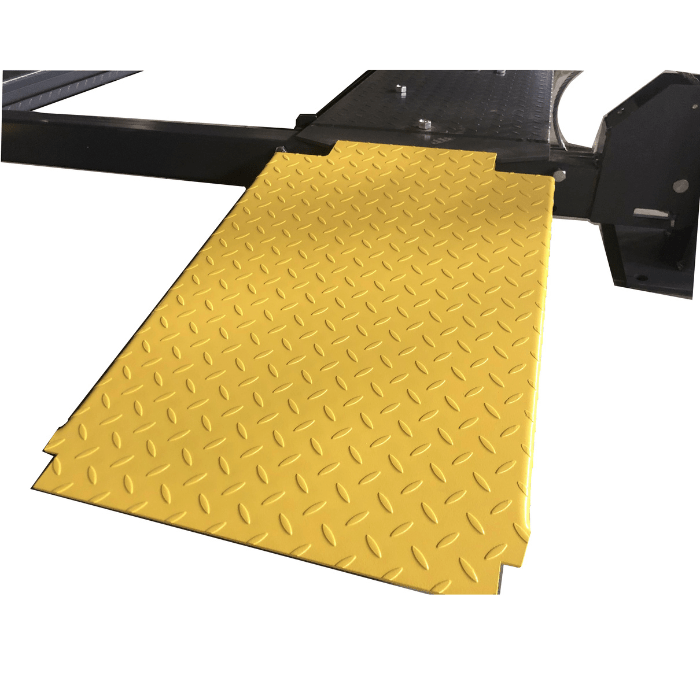

files/Closeup_on_one_of_the_ramps_on_the_Katool_4H850_Vehicle_Lift.png
-

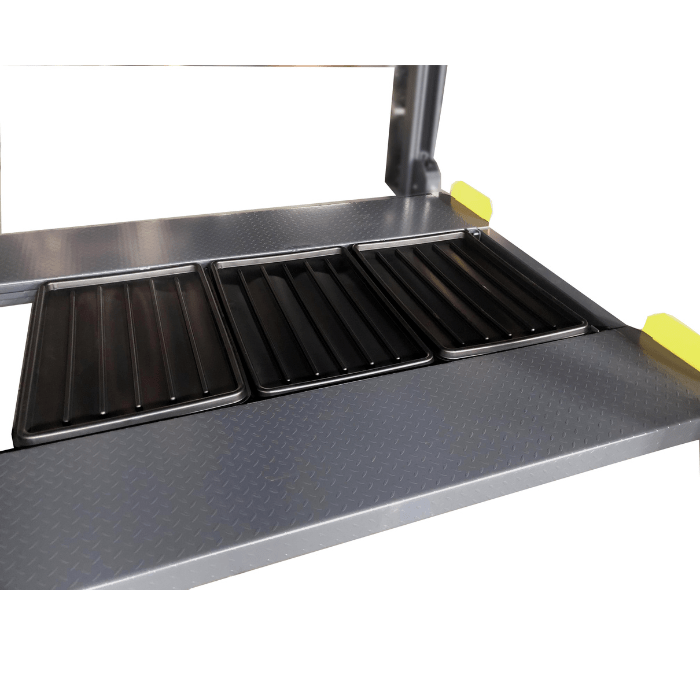

files/Top_down_view_on_the_KT-4H850_4-Post_Lift.png
-
files/Closeup_of_the_cable_on_the_KT-4H850_8_500Lbs_4-Post_Car_Lift_by_Katool.png
-

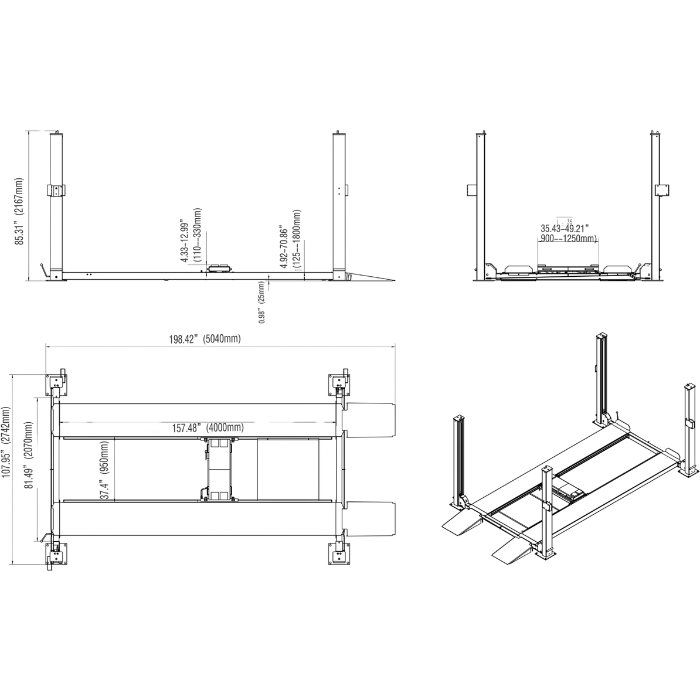

files/Technical_schematic_and_dimensions_of_Katool_4-post_lift_model_4H850_with_top_side_front_and_3D_views.png
-

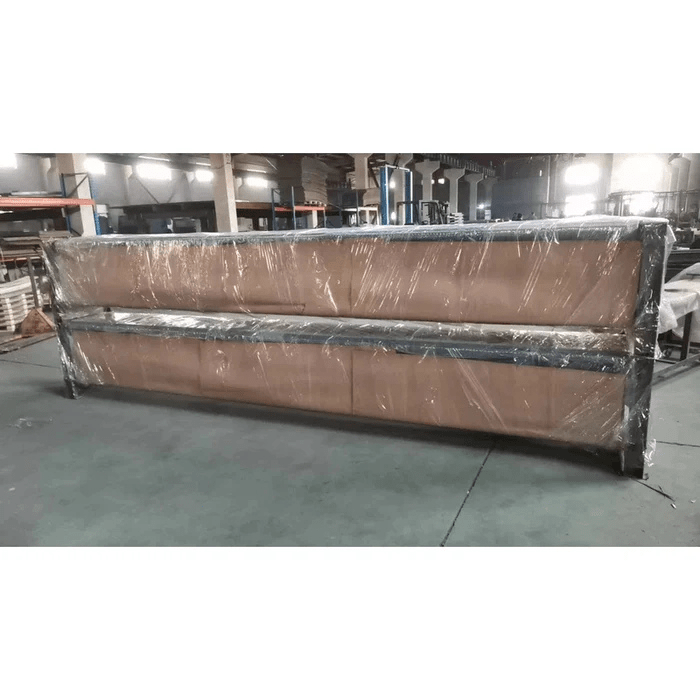

files/Shipping_Pallet_for_the_Katool_Lifts_8b71dac2-2717-44f4-8d14-0693430a6b93.png
-

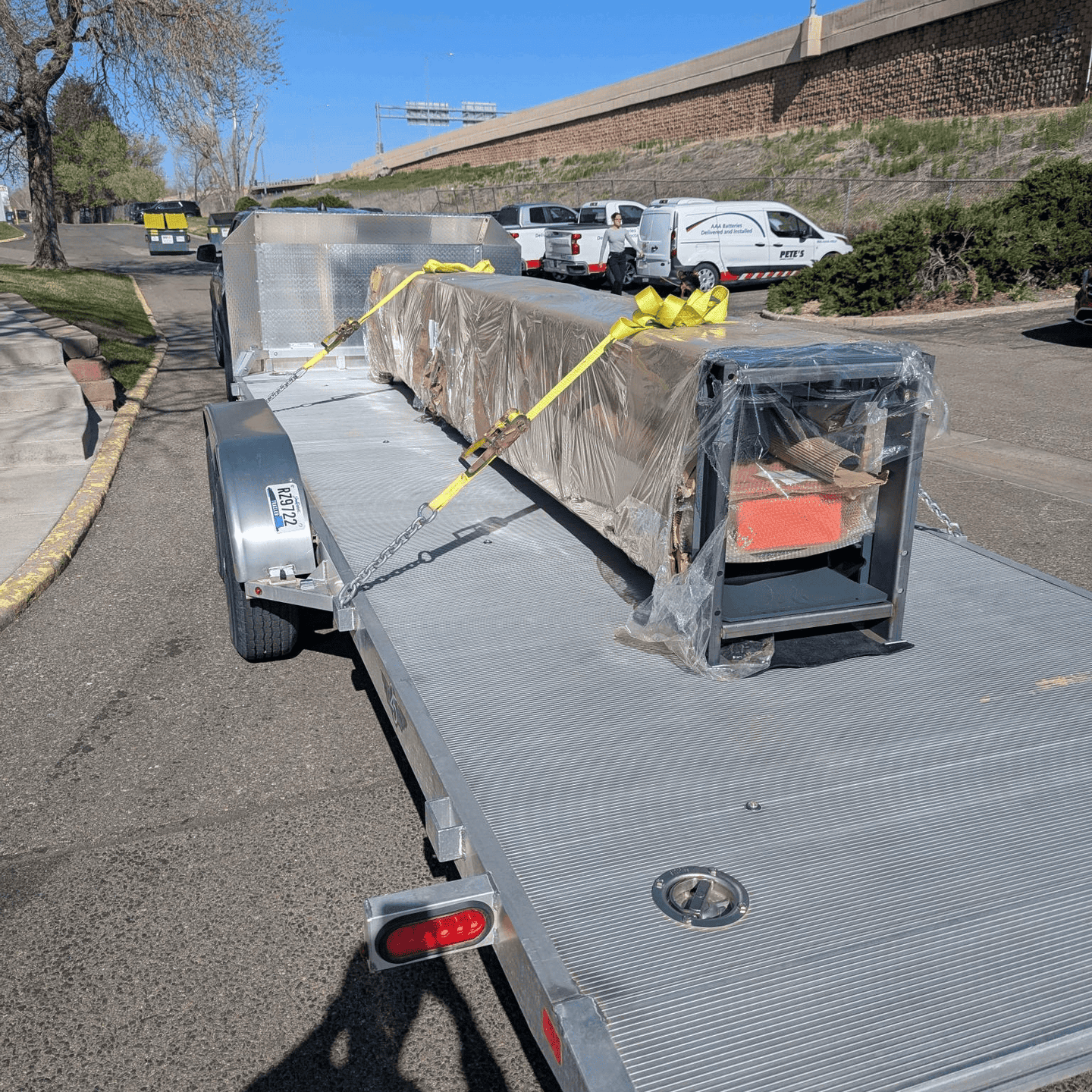

files/katool_pallet_loaded_at_warehouse_b4bbe7b6-296d-4e89-a077-3bb7737ae046.png
- Regular price
- $2,699.00
Estimated shipping and delivery charges for this equipment.
- Regular price
- $2,699.00
Safety Requirements
Safety Requirements
IMPORTANT INSTALLATION REQUIREMENTS
This vehicle lift must be installed on a concrete slab with a minimum thickness of 6.5 inches and a minimum compressive strength of 3,000 PSI. Installation on inadequate or improperly prepared concrete may result in lift instability, equipment failure, serious injury, or death.
It is the customer’s responsibility to verify that all installation surfaces and site conditions meet the manufacturer’s specifications prior to purchase and installation.
Forge Work Supply assumes no liability for damage, equipment failure, injuries, or losses resulting from improper installation, insufficient concrete specifications, or failure to follow manufacturer installation requirements.
Freight Shipping
Freight Shipping
Please review the following freight shipping information carefully before placing your order.
Shipping Delays & Availability
Seasonal shipping delays may occur. In some cases, orders may take up to 3 weeks for delivery. If you require expedited processing or need to confirm inventory availability prior to ordering, please contact our team for assistance.
Shipping Coverage
Freight shipping is available within the contiguous United States (lower 48 states).
Estimated fulfillment time for freight orders is typically 6–10 business days.
Two-Post & Four-Post Lift Deliveries
Customers are required to provide a forklift or suitable unloading equipment at the time of delivery.
Additional Freight Services
The following optional freight services are available for an additional fee:
- Residential Delivery: $80
- Liftgate Service: $80
Please note: Liftgate service is not available for most two-post lifts, four-post lifts, and certain scissor lift models. Contact us before ordering to confirm availability.
Customer Responsibilities
Customers are responsible for unloading freight shipments from the delivery truck.
A forklift, loading dock, or appropriate unloading equipment is strongly recommended for all heavy equipment deliveries.
Customers are responsible for any additional charges incurred due to:
- Failed delivery attempts
- Inability to unload freight at the delivery location
- Incorrect delivery information provided at checkout
Shipment Inspection & Damage Claims
All shipments must be carefully inspected before signing the Bill of Lading or delivery receipt.
- Any visible damage, shortages, or missing items must be noted on the delivery receipt at the time of delivery.
- Do not sign for damaged or incomplete shipments without documenting the issue with the carrier.
- Concealed damage or shortages must be reported within 48 hours of delivery.
Failure to document freight damage at the time of delivery may limit the ability to file a freight claim.
If no damage or shortages are noted upon delivery, the shipment will be considered received in acceptable condition.
Contact Information
For freight assistance, delivery questions, or damage claims, please contact our Customer Support team:
Phone: (866) 671-5917
Email: support@forgeworksupply.com
What is your Return and Refund Policy?
What is your Return and Refund Policy?
Returns and refunds for this item are subject to Forge Work Supply’s standard Return and Refund Policy.
Customers may request a return within 30 days of delivery, provided the item is unused, undamaged, and in its original packaging. Proof of purchase is required.
Change-of-mind returns may be subject to a restocking fee. Defective, damaged, incorrect, or lost items are eligible for a replacement or full refund, as applicable.
Refunds are issued to the original payment method after the returned item is received and inspected.
Description
Reliable 4-Post Lifting Power. Compact Footprint. Built for SUVs, Trucks & Everyday Shop Use.
The Katool KT-4H850 4-Post Lift is designed for users who need real lifting capability without stepping into oversized commercial equipment. With a solid 8,500 lb rated capacity, it comfortably handles most cars, SUVs, and light trucks while maintaining stability and ease of use in both home garages and professional settings.
This model is CE-certified and rigorously tested for safety, including 115% dynamic load testing and 150% static load testing, giving you confidence under working conditions. Four independent mechanical locking systems engage through 12 adjustable height positions spaced every 4.7 inches, providing secure and flexible working heights for a wide range of service tasks.
Non-slip diamond-plate runways help keep vehicles firmly in place during loading and lifting, while a single-point manual release system allows all four locks to be disengaged from one control location for simplified operation and improved efficiency.
Speed and usability are built in, with a lifting cycle of approximately 75 seconds up and 40 seconds down, helping reduce downtime between jobs. The compact design makes it especially practical for garages with limited ceiling height, featuring posts at 83.66 inches and a maximum lift height of 70.87 inches.
Installation flexibility is another advantage— the power column can be mounted on any side of the lift to better suit your workspace layout. This unit is also fully free-standing with no anchor bolts required, making setup more straightforward in a variety of shop environments.
Each lift includes a caster kit, two drip trays, and a jack tray, providing added mobility and convenience right out of the box. Whether for storage, maintenance, or routine service work, the KT-4H850 delivers dependable performance in a compact, user-friendly package.
Perfect for: Home garages • Small repair shops • SUV & light truck maintenance • Vehicle storage • General automotive service • Space-conscious workshops
Benefits of the Katool KT-4H850
Store vehicles vertically to instantly free up floor space for tools, equipment, or another vehicle. Ideal for making the most of smaller or crowded garage environments.
Four independent locking mechanisms with dual safety engagement at each post, combined with non-skid diamond-plate runways, help keep vehicles secure during lifting, storage, and service.
Perfect for maintenance, inspections, detailing, and long-term storage. Designed to support both home garage users and small professional shop environments.
Built with a lower profile height and flexible installation layout, making it suitable for garages with limited ceiling clearance or tighter workspace constraints.
Includes a caster kit that allows you to reposition the lift within your garage without disassembly or heavy equipment, improving layout flexibility when needed.
Ships complete with caster kit, two drip trays, and a jack tray, so you can start using the lift without needing additional accessories or add-on purchases.
Features
Capacity & Performance
- 8,500 lb lifting capacity for cars, SUVs, and light-duty trucks
- CE certified with 115% dynamic and 150% static load testing
- Built for everyday use without operating at maximum stress limits
Locking System Control
- 12-position locking ladder with adjustments every 4.7 inches
- Four-post mechanical locking system for secure elevation support
- Single-point manual release controls all locks from one location
Compact Garage Fit
- 83.66" post height designed for lower ceiling garages
- 70.87" max lift height for full undercarriage access
- Ideal for residential and space-limited shop environments
Mobility & Flexibility
- Includes caster kit for easy repositioning in the garage
- Allows movement without disassembly or heavy equipment
- Helps adapt layout as workspace needs change
Power & Operation
- Compatible with 110V standard motor with optional 220V upgrade
- Requires dedicated 30-amp circuit with proper wiring for safe operation
- Fast cycle times: 75 seconds up / 40 seconds down
Runway & Stability Design
- Diamond-plate non-skid runways for improved tire grip
- Stable platform for storage, inspections, and light service work
- Helps maintain secure vehicle positioning during lifting cycles
Free-Standing Installation
- No anchor bolts required for standard setup
- Simplifies installation in home or shop environments
- Ideal for users who may relocate or reconfigure workspace later
Specifications
General
- Manufacturer: Katool
- Lifting Capacity: 8,500 lbs (3,850 kg)
- Net Weight: 1,820 lbs (826 kg)
Lifting Performance
- Max Lifting Height: 70.87" (1,800 mm)
- Lifting Time: 75 sec up / 40 sec down
- Min Runway Height: 4.76" (121 mm)
- Lock Positions: 12 positions at 4.7" intervals
Dimensions
- Post Height: 83.66" (2,125 mm)
- Overall Width: 107.95" (2,742 mm)
- Inside Columns: 94.72" (2,406 mm)
- Inside Runway Width: 37" (940 mm)
- Overall Length (with ramps): 198.43" (5,040 mm)
- Overall Length (without ramps): 172" (4,370 mm)
Power & Electrical
- Motor: 110V / 60Hz / 3HP (220V optional)
- Electrical Requirement: Dedicated 30-amp circuit
- Wire Requirement: 10-gauge wiring recommended
- Operation: Hydraulic lift system
Safety System
- Lock System: Four-post mechanical locking design
- Release: Single-point manual safety release

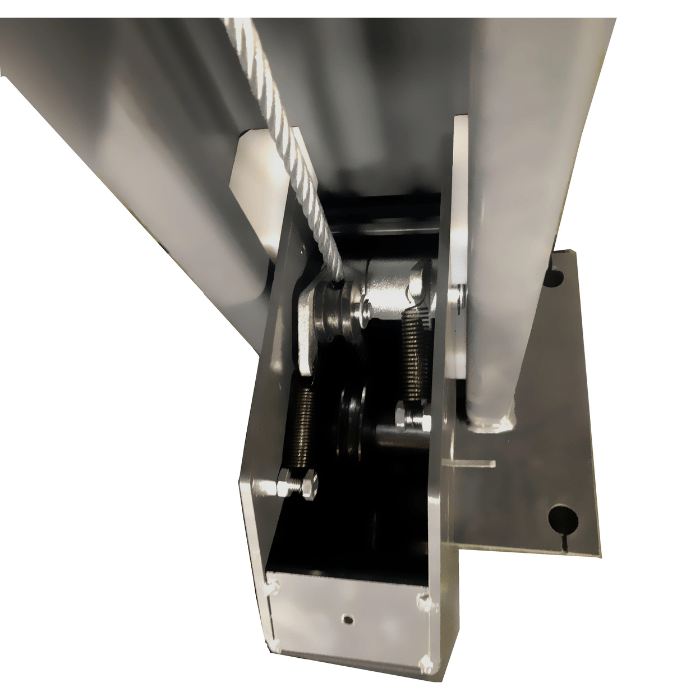

- Cable: 3/8" steel equalization cable
- Operation: Multiple redundant safety lock positions
Included Equipment
- Caster Kit: Included
- Drip Trays: Two included
- Jack Tray: One included
- Runway Surface: Diamond-plate non-skid steel
Shipping & Warranty
- Shipping Weight: 1,890 lbs (approx.)
- Shipping Dimensions: 167" L x 23" W x 30" H
- Warranty: 1-year limited parts & defects
- Structural Warranty: 3-year coverage
Downloads
-
Vendor: KATOOL
Katool 12,000 lb 4 Post Alignment Lift - KT-4H120X Heavy-Duty Shop Lift
Regular price $4,500.00 -
Vendor: KATOOL
Katool 15,000 lb 4 Post Alignment Lift - KT-4H150 Heavy-Duty Shop Lift
Regular price $5,700.00 -
Vendor: KATOOL
Katool 9500 lb 4 Post Storage Lift - KT-4H950
Regular price $2,999.00 -
Vendor: KATOOL
Katool 11,000 lb 4 Post Vehicle Lift - KT-4H110 - Heavy Duty Shop Lift
Regular price $3,299.00
| 4-POST LIFT COMPARISON |
 KT-4H850
4-Post Storage Lift
8,500 LB
|
 KT-4H950
4-Post Storage Lift
9,500 LB
|
 KT-4H110
Heavy-Duty 4-Post Lift
11,000 LB
|
 KT-4H120X
Alignment Lift
12,000 LB
|
 KT-4H150
Alignment Lift
15,000 LB
|
|---|---|---|---|---|---|
| Capacity & Vehicle Support | |||||
| Lifting Capacity | 8,500 lbs | 9,500 lbs | 11,000 lbs | 12,000 lbs | 15,000 lbs |
| Best Vehicle Fit | Cars, SUVs, Light Trucks | Cars, SUVs, Performance Vehicles | Trucks & Long-Wheelbase Vehicles | Fleet Vehicles & Commercial Trucks | Duallys, Fleet Vans & Heavy Trucks |
| Lift Type | Storage / Parking Lift | Storage / Parking Lift | Heavy-Duty Service Lift | Alignment Lift | Heavy-Duty Alignment Lift |
| Lifting Performance | |||||
| Max Lift Height | 70.87" | 81" | 84.25" | 86.9" | ~75–76" |
| Underneath Clearance | — | 76.5" | 78.7" | 80" | Approx. 67" |
| Lifting Speed | 75 sec up / 40 sec down | 90 sec up / 40 sec down | 83 sec up / 40 sec down | ≤ 83 sec up / ≥ 40 sec down | ~60–95 sec up / ~55 sec down |
| Lock Positions | 12 Positions | Multiple Locks | 14 Positions | Mechanical Locks | 12 Positions |
| Structure & Dimensions | |||||
| Post Height | 83.66" | 97" | 94.88" | 94.88" | ~91.8–92" |
| Overall Width | 107.95" | 112.7" | 126" | 135.2" | ~136–138.8" |
| Overall Length (With Ramps) | 198.43" | 214.96" | 229.73" | 258" | ~245.31" |
| Runway Length | 172" | 173" | 181.9" | 205" | Heavy-Duty Diamond Plate |
| Width Between Columns | 94.72" | 99.4" | 112.81" | 112.81" | 118.11" |
| Power & Electrical | |||||
| Motor Configuration | 110V Standard / 220V Optional | 110V or 220V / 3HP | 110V or 220V / 3HP | 220V / 1PH | 220V / 1PH (110V Optional) |
| Breaker Requirement | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit |
| Concrete Requirement | Standard Garage Slab | 4" @ 3,000 PSI | Standard Shop Concrete | 5.9" @ 3,000 PSI | 5.9" @ 3,000 PSI |
| Safety & System Design | |||||
| Safety Certification | CE Certified | Mechanical Lock System | CE Certified | Dual Lock + Limit Switch | CE Certified |
| Lock Release | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual |
| Synchronization | Steel Equalization Cable | Cable & Pulley System | Hydraulic + Cable System | Quad Cable & Pulley System | Steel Cable & Pulley System |
| Included Equipment & Features | |||||
| Rolling Jack Included | No | Optional | Optional | RJ70 7,000 lb Included | 6,000 lb Included |
| Alignment Ready | No | No | No | Yes | Yes |
| Included Accessories | Caster Kit, Drip Trays, Jack Tray | Casters, Aluminum Ramps, Jack Tray | Drip Trays, Jack Tray, Ramps | RJ70 Rolling Jack Included | Rolling Jack, Jack Tray, Drip Trays |
| Runway Surface | Diamond-Plate Non-Skid | Diamond-Plate Non-Skid | Non-Skid Steel | Alignment Platform | Diamond-Plate Non-Skid |
| Best For... |
Low Ceiling Garages Residential users needing an affordable storage lift with mobility. |
Vehicle Storage Stacked parking, collector cars, and light-duty maintenance work. |
Heavy-Duty Home Shops Long-wheelbase trucks, SUVs, and general repair service applications. |
Alignment & Fleet Work Commercial shops needing alignment capability and wheels-free service. |
Maximum Capacity Heavy commercial vehicles, dually trucks, and high-volume service facilities. |
