Safety Requirements
Safety Requirements
IMPORTANT INSTALLATION REQUIREMENTS
This vehicle lift must be installed on a concrete slab with a minimum thickness of 6.5 inches and a minimum compressive strength of 3,000 PSI. Installation on inadequate or improperly prepared concrete may result in lift instability, equipment failure, serious injury, or death.
It is the customer’s responsibility to verify that all installation surfaces and site conditions meet the manufacturer’s specifications prior to purchase and installation.
Forge Work Supply assumes no liability for damage, equipment failure, injuries, or losses resulting from improper installation, insufficient concrete specifications, or failure to follow manufacturer installation requirements.
Freight Shipping
Freight Shipping
Please review the following freight shipping information carefully before placing your order.
Shipping Delays & Availability
Seasonal shipping delays may occur. In some cases, orders may take up to 3 weeks for delivery. If you require expedited processing or need to confirm inventory availability prior to ordering, please contact our team for assistance.
Shipping Coverage
Freight shipping is available within the contiguous United States (lower 48 states).
Estimated fulfillment time for freight orders is typically 6–10 business days.
Two-Post & Four-Post Lift Deliveries
Customers are required to provide a forklift or suitable unloading equipment at the time of delivery.
Additional Freight Services
The following optional freight services are available for an additional fee:
- Residential Delivery: $80
- Liftgate Service: $80
Please note: Liftgate service is not available for most two-post lifts, four-post lifts, and certain scissor lift models. Contact us before ordering to confirm availability.
Customer Responsibilities
Customers are responsible for unloading freight shipments from the delivery truck.
A forklift, loading dock, or appropriate unloading equipment is strongly recommended for all heavy equipment deliveries.
Customers are responsible for any additional charges incurred due to:
- Failed delivery attempts
- Inability to unload freight at the delivery location
- Incorrect delivery information provided at checkout
Shipment Inspection & Damage Claims
All shipments must be carefully inspected before signing the Bill of Lading or delivery receipt.
- Any visible damage, shortages, or missing items must be noted on the delivery receipt at the time of delivery.
- Do not sign for damaged or incomplete shipments without documenting the issue with the carrier.
- Concealed damage or shortages must be reported within 48 hours of delivery.
Failure to document freight damage at the time of delivery may limit the ability to file a freight claim.
If no damage or shortages are noted upon delivery, the shipment will be considered received in acceptable condition.
Contact Information
For freight assistance, delivery questions, or damage claims, please contact our Customer Support team:
Phone: (866) 671-5917
Email: support@forgeworksupply.com
What is your Return and Refund Policy?
What is your Return and Refund Policy?
Returns and refunds for this item are subject to Forge Work Supply’s standard Return and Refund Policy.
Customers may request a return within 30 days of delivery, provided the item is unused, undamaged, and in its original packaging. Proof of purchase is required.
Change-of-mind returns may be subject to a restocking fee. Defective, damaged, incorrect, or lost items are eligible for a replacement or full refund, as applicable.
Refunds are issued to the original payment method after the returned item is received and inspected.
Description
Professional Alignment Capability. Heavy-Duty 12,000 lb Capacity. Complete Service Lift with Included RJ70 Rolling Jack.

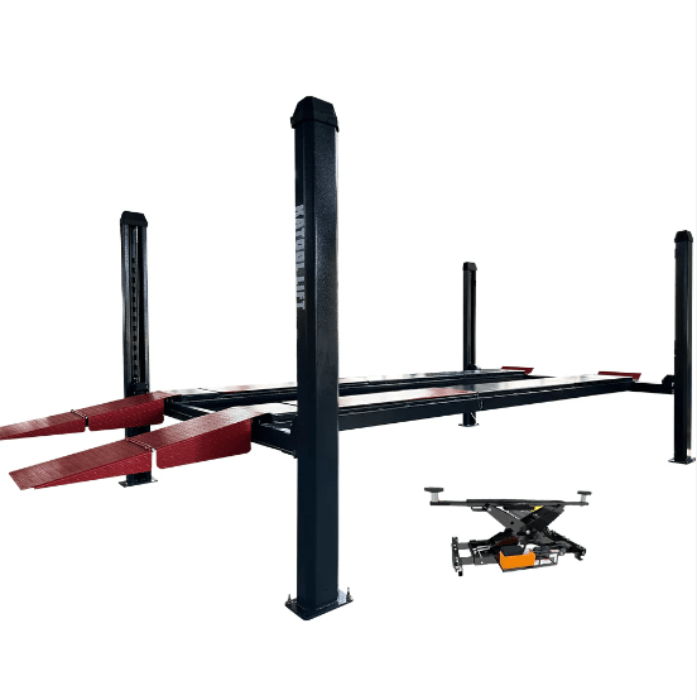

The Katool KT-4H120X 12,000 lb 4-Post Lift is designed for repair facilities, alignment shops, and serious automotive users who need a dependable service lift built for everyday vehicle maintenance and precision alignment work. With a 12,000 lb lifting capacity, this lift easily handles cars, SUVs, trucks, vans, and larger commercial vehicles while maintaining stable lifting performance and generous working clearance.
Engineered for daily shop use, the KT-4H120X features a reinforced four-post structure with diamond-plate non-skid runways that improve traction and vehicle stability during loading and service operations. The lift utilizes a quad-cable synchronization system to maintain balanced runway movement throughout the lifting cycle, while the integrated top-limit switch helps prevent over-travel during operation.
Safety remains a core focus of the design. Each column is equipped with primary and secondary mechanical locking systems that engage automatically as the lift rises. A single-point manual safety release allows operators to disengage the locks from one convenient location for smoother workflow and controlled lowering.
Powered by a 220V single-phase hydraulic system, the KT-4H120X delivers smooth lifting performance with approximately 83 seconds of rise time and 40 seconds of lowering time. With a maximum lifting height of 86.9 inches and approximately 80 inches of underneath clearance, technicians have the working room needed for undercar service, inspections, suspension repairs, and drivetrain access.
Built for full-service versatility, this package includes the RJ70 7,000 lb pneumatic rolling jack, allowing wheels-free access for brake service, tire replacement, suspension repairs, and axle work without removing the vehicle from the lift. Rear slip plates are integrated directly into the runways, and optional front alignment turn plates can be added to create a complete four-wheel alignment setup.
Whether used for alignment service, wheel and tire work, long-wheelbase vehicle maintenance, or heavy-duty storage applications, the Katool KT-4H120X combines commercial-grade lifting capability, professional alignment functionality, and dependable hydraulic performance into a complete 4-post service lift solution.
Perfect for: Alignment shops • Commercial garages • Brake & suspension service • Tire & wheel work • Truck maintenance • Vehicle storage
Benefits of the Katool KT-4H120X
The included RJ70 7,000 lb pneumatic rolling jack allows technicians to lift the axle or frame for brake repairs, suspension work, tire service, and undercar maintenance without removing the vehicle from the lift.
With a 12,000 lb rated capacity, the KT-4H120X is built to handle full-size trucks, SUVs, vans, and fleet vehicles while maintaining stable lifting performance during daily shop use.
An approximate 83-second lifting cycle and controlled 40-second lowering speed help keep service bays productive while maintaining smooth, predictable operation under load.
A maximum lifting height of 86.9 inches and approximately 80 inches of underneath clearance provide technicians with the space needed for inspections, drivetrain repairs, and suspension service.
Integrated rear slip plates support alignment adjustments right out of the box, while optional front turn plates can be added to create a complete four-wheel alignment setup.
The lift operates on a dedicated 220V single-phase power system with clearly defined concrete specifications, helping eliminate uncertainty during installation planning and shop setup.
Features
Capacity & Vehicle Support
- 12,000 lb drive-on lifting capacity for larger vehicles
- Designed for trucks, SUVs, fleet vehicles, and commercial service applications
- Provides additional working margin compared to lighter-duty lifts
Rolling Jack System
- RJ70 7,000 lb pneumatic rolling jack included
- Allows wheels-free access for brake, tire, and suspension work
- Eliminates the need to move the vehicle to a separate lift
Alignment Capability
- Integrated rear slip plates built directly into the runways
- Supports alignment service and suspension adjustments
- Optional front turn plates available for full alignment setup
Safety System
- Multi-layer mechanical safety design
- Primary and secondary locking mechanisms on all four posts
- Includes single-point manual release and integrated top-limit switch
Lift Height & Clearance
- 86.9" maximum lifting height for comfortable service access
- Provides approximately 80" of underneath working clearance
- Improves accessibility for underbody repairs and inspections

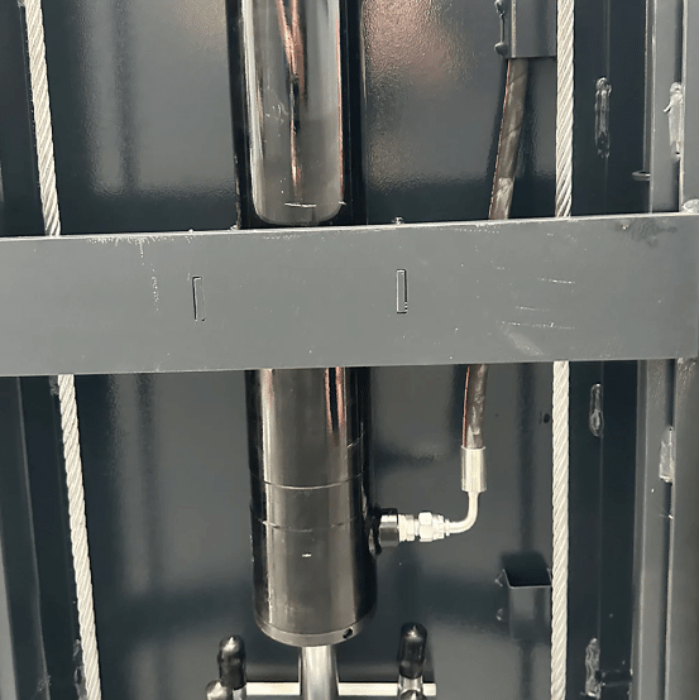

Hydraulic & Electrical System
- Operates on 220V single-phase power
- Fast lifting cycle of approximately 83 seconds
- Designed for smooth lifting and controlled lowering performance
Structural Construction
- Heavy-duty steel frame construction for long-term durability
- Wide column spacing improves compatibility with larger vehicles
- Built for professional shops, fleet facilities, and high-use garages
Installation Requirements
- Free-standing design requires no anchor bolts for normal operation
- Requires dedicated 220V circuit with 10-gauge wiring and 30-amp breaker
- Concrete slab requirement: minimum 5.9" thickness at 3,000 PSI
Specifications
General
- Manufacturer: Katool
- Model: KT-4H120X
- Product Type: 4-Post Alignment Lift
- Rated Capacity: 12,000 lbs
- Net Weight: 3,373 lbs (1,530 kg)
Lifting Performance
- Max Lifting Height: 86.9 in (2,208 mm)
- Underneath Clearance: 80 in (2,032 mm)
- Raising Time: ≤ 83 seconds
- Lowering Time: ≥ 40 seconds
- Lift Design: Drive-on alignment platform

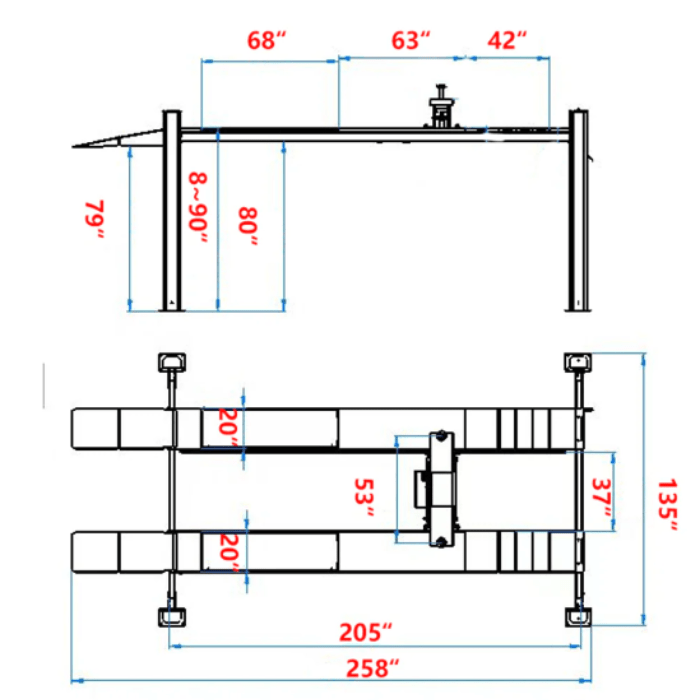

Structure & Dimensions
- Post Height: 94.88 in (2,410 mm)
- Overall Width: 135.2 in (3,435 mm)
- Width Between Columns: 112.81 in (2,865 mm)
- Overall Length (with ramps): 258 in (6,553 mm)
- Runway Length: 205 in (5,207 mm)

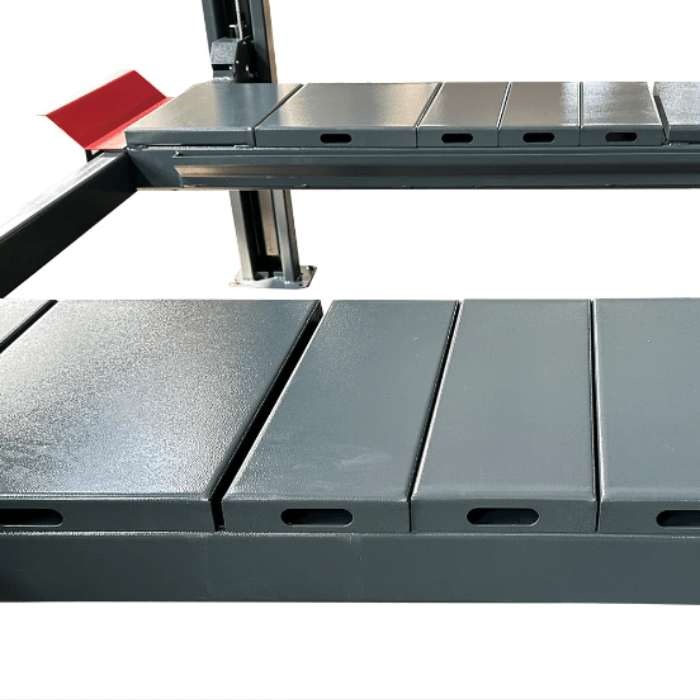

Runway Configuration
- Runway Width: 20 in (508 mm)
- Width Between Runways: 37 in (940 mm)
- Rear Slip Plates: Integrated into runways
- Front Turn Plates: Optional / sold separately
- Alignment Ready: Designed for 4-wheel alignment setups
Safety & Synchronization

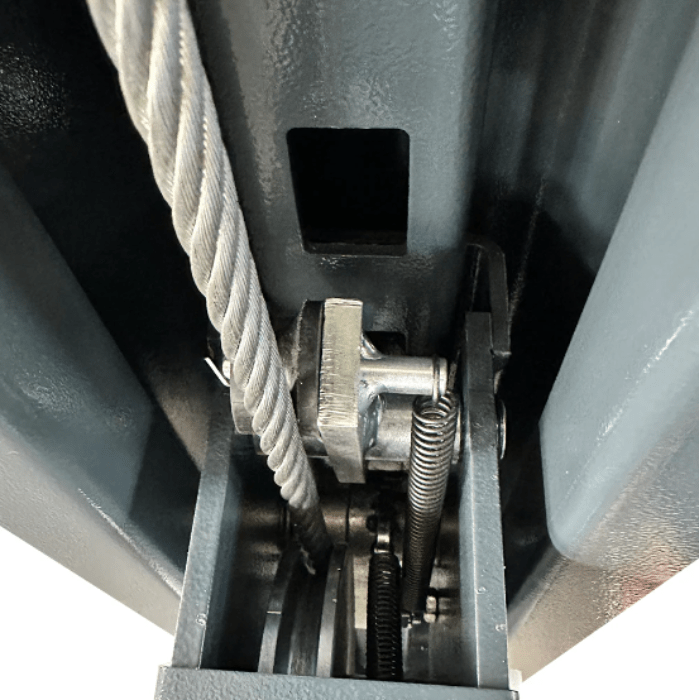

- Safety System: Mechanical locks with primary & secondary backups
- Lock Release: Single-point manual safety release
- Additional Protection: Integrated top limit switch

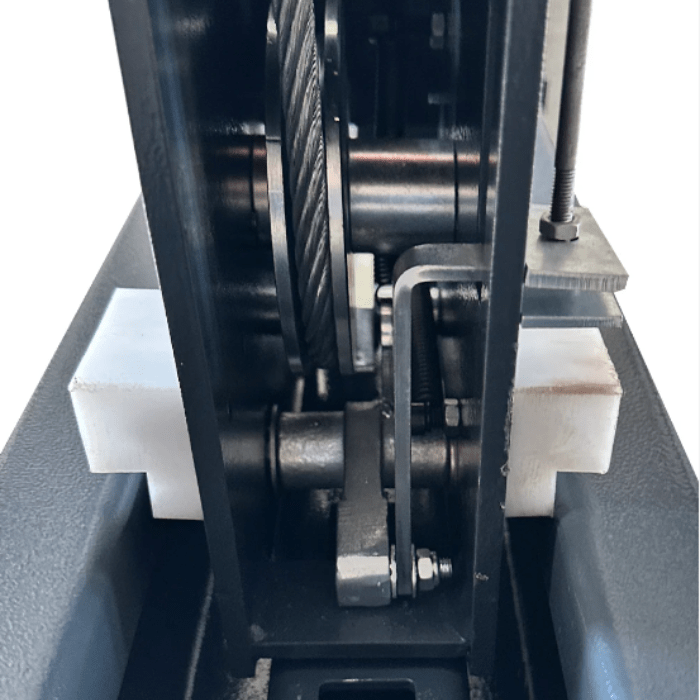

- Synchronization: Quad steel cable & pulley leveling system
- Operation: Balanced and level lifting performance
Power & Electrical
- Motor: 220VAC / 60Hz / 1PH
- Voltage Requirement: 220V only
- Electrical Setup: Dedicated circuit required
- Breaker Requirement: 30-amp breaker with 10-gauge wire
- Power Design: Commercial-grade hydraulic operation
Included Equipment
- Included Rolling Jack: RJ70 7,000 lb pneumatic rolling jack
- Service Capability: Wheels-free brake and suspension work
- Runway Design: Alignment-capable configuration
- Application: Shop service, fleet maintenance, and storage
Installation & Shipping
- Concrete Requirement: 5.9 in (150 mm) minimum @ 3,000 PSI
- Shipping Dimensions: 209 x 36 x 26 in
- Shipping Weight: 3,440 lbs
- Warranty: 1-Year Parts / 3-Year Structural
Downloads
-
Vendor: KATOOL
Katool 15,000 lb 4 Post Alignment Lift - KT-4H150 Heavy-Duty Shop Lift
Regular price $5,700.00 -
Vendor: KATOOL
Katool 9500 lb 4 Post Storage Lift - KT-4H950
Regular price $2,999.00 -
Vendor: KATOOL
Katool 11,000 lb 4 Post Vehicle Lift - KT-4H110 - Heavy Duty Shop Lift
Regular price $3,299.00 -
Vendor: KATOOL
Katool 8,500 lb 4 Post Vehicle lift - KT-4H850 Heavy-Duty Shop Lift
Regular price $2,699.00
Frequently Bought Together
| 4-POST LIFT COMPARISON |
 KT-4H850
4-Post Storage Lift
8,500 LB
|
 KT-4H950
4-Post Storage Lift
9,500 LB
|
 KT-4H110
Heavy-Duty 4-Post Lift
11,000 LB
|
 KT-4H120X
Alignment Lift
12,000 LB
|
 KT-4H150
Alignment Lift
15,000 LB
|
|---|---|---|---|---|---|
| Capacity & Vehicle Support | |||||
| Lifting Capacity | 8,500 lbs | 9,500 lbs | 11,000 lbs | 12,000 lbs | 15,000 lbs |
| Best Vehicle Fit | Cars, SUVs, Light Trucks | Cars, SUVs, Performance Vehicles | Trucks & Long-Wheelbase Vehicles | Fleet Vehicles & Commercial Trucks | Duallys, Fleet Vans & Heavy Trucks |
| Lift Type | Storage / Parking Lift | Storage / Parking Lift | Heavy-Duty Service Lift | Alignment Lift | Heavy-Duty Alignment Lift |
| Lifting Performance | |||||
| Max Lift Height | 70.87" | 81" | 84.25" | 86.9" | ~75–76" |
| Underneath Clearance | — | 76.5" | 78.7" | 80" | Approx. 67" |
| Lifting Speed | 75 sec up / 40 sec down | 90 sec up / 40 sec down | 83 sec up / 40 sec down | ≤ 83 sec up / ≥ 40 sec down | ~60–95 sec up / ~55 sec down |
| Lock Positions | 12 Positions | Multiple Locks | 14 Positions | Mechanical Locks | 12 Positions |
| Structure & Dimensions | |||||
| Post Height | 83.66" | 97" | 94.88" | 94.88" | ~91.8–92" |
| Overall Width | 107.95" | 112.7" | 126" | 135.2" | ~136–138.8" |
| Overall Length (With Ramps) | 198.43" | 214.96" | 229.73" | 258" | ~245.31" |
| Runway Length | 172" | 173" | 181.9" | 205" | Heavy-Duty Diamond Plate |
| Width Between Columns | 94.72" | 99.4" | 112.81" | 112.81" | 118.11" |
| Power & Electrical | |||||
| Motor Configuration | 110V Standard / 220V Optional | 110V or 220V / 3HP | 110V or 220V / 3HP | 220V / 1PH | 220V / 1PH (110V Optional) |
| Breaker Requirement | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit |
| Concrete Requirement | Standard Garage Slab | 4" @ 3,000 PSI | Standard Shop Concrete | 5.9" @ 3,000 PSI | 5.9" @ 3,000 PSI |
| Safety & System Design | |||||
| Safety Certification | CE Certified | Mechanical Lock System | CE Certified | Dual Lock + Limit Switch | CE Certified |
| Lock Release | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual |
| Synchronization | Steel Equalization Cable | Cable & Pulley System | Hydraulic + Cable System | Quad Cable & Pulley System | Steel Cable & Pulley System |
| Included Equipment & Features | |||||
| Rolling Jack Included | No | Optional | Optional | RJ70 7,000 lb Included | 6,000 lb Included |
| Alignment Ready | No | No | No | Yes | Yes |
| Included Accessories | Caster Kit, Drip Trays, Jack Tray | Casters, Aluminum Ramps, Jack Tray | Drip Trays, Jack Tray, Ramps | RJ70 Rolling Jack Included | Rolling Jack, Jack Tray, Drip Trays |
| Runway Surface | Diamond-Plate Non-Skid | Diamond-Plate Non-Skid | Non-Skid Steel | Alignment Platform | Diamond-Plate Non-Skid |
| Best For... |
Low Ceiling Garages Residential users needing an affordable storage lift with mobility. |
Vehicle Storage Stacked parking, collector cars, and light-duty maintenance work. |
Heavy-Duty Home Shops Long-wheelbase trucks, SUVs, and general repair service applications. |
Alignment & Fleet Work Commercial shops needing alignment capability and wheels-free service. |
Maximum Capacity Heavy commercial vehicles, dually trucks, and high-volume service facilities. |
