Atlas Automotive PRO9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ6BK Rolling Bridge Jacks
- Regular price
- $8,399.00
- Regular price
- $8,399.00
Safety Requirements
Safety Requirements
IMPORTANT INSTALLATION REQUIREMENTS
2 & 4 post vehicle lifts must be installed on a concrete slab with a minimum thickness of 4 inches and 6.5 inches for heavier lifts and a minimum compressive strength of 3,000 PSI. Scissor lifts must be installed on a concrete slab with a minimum thickness of 3.9 inches and a minimum compressive strength of 3,000 PSI.
Installation on inadequate or improperly prepared concrete may result in lift instability, equipment failure, serious injury, or death.
It is the customer’s responsibility to verify that all installation surfaces and site conditions meet the manufacturer’s specifications prior to purchase and installation.
Forge Work Supply assumes no liability for damage, equipment failure, injuries, or losses resulting from improper installation, insufficient concrete specifications, or failure to follow manufacturer installation requirements.
Freight Shipping
Freight Shipping
Please review the following freight shipping information carefully before placing your order.
Shipping Delays & Availability
Seasonal shipping delays may occur. In some cases, orders may take up to 3 weeks for delivery. If you require expedited processing or need to confirm inventory availability prior to ordering, please contact our team for assistance.
Shipping Coverage
Freight shipping is available within the contiguous United States (lower 48 states).
Estimated fulfillment time for freight orders is typically 6–10 business days.
Two-Post, Four-Post & Scissor Lift Deliveries
Customers are required to provide a forklift or suitable unloading equipment at the time of delivery.
Additional Freight Services
The following optional freight services are available for an additional fee:
- Residential Delivery: $80
- Liftgate Service: $80
Please note: Liftgate service is not available for two-post lifts, four-post lifts, and scissor lifts. Contact us before ordering to confirm availability.
Customer Responsibilities
Customers are responsible for unloading freight shipments from the delivery truck.
A forklift, loading dock, or appropriate unloading equipment is strongly recommended for all heavy equipment deliveries.
Customers are responsible for any additional charges incurred due to:
- Failed delivery attempts
- Inability to unload freight at the delivery location
- Incorrect delivery information provided at checkout
Shipment Inspection & Damage Claims
All shipments must be carefully inspected before signing the Bill of Lading or delivery receipt.
- Any visible damage, shortages, or missing items must be noted on the delivery receipt at the time of delivery.
- Do not sign for damaged or incomplete shipments without documenting the issue with the carrier.
- Concealed damage or shortages must be reported within 48 hours of delivery.
Failure to document freight damage at the time of delivery may limit the ability to file a freight claim.
If no damage or shortages are noted upon delivery, the shipment will be considered received in acceptable condition.
Contact Information
For freight assistance, delivery questions, or damage claims, please contact our Customer Support team:
Phone: (866) 671-5917
Email: support@forgeworksupply.com
What is your Return and Refund Policy?
What is your Return and Refund Policy?
Returns and refunds for this item are subject to Forge Work Supply’s standard Return and Refund Policy.
Customers may request a return within 30 days of delivery, provided the item is unused, undamaged, and in its original packaging. Proof of purchase is required.
Change-of-mind returns may be subject to a restocking fee. Defective, damaged, incorrect, or lost items are eligible for a replacement or full refund, as applicable.
Refunds are issued to the original payment method after the returned item is received and inspected.
Atlas Auto Equipment
Atlas Automotive PRO9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ6BK Rolling Bridge Jacks
- Regular price
- $8,399.00
Description

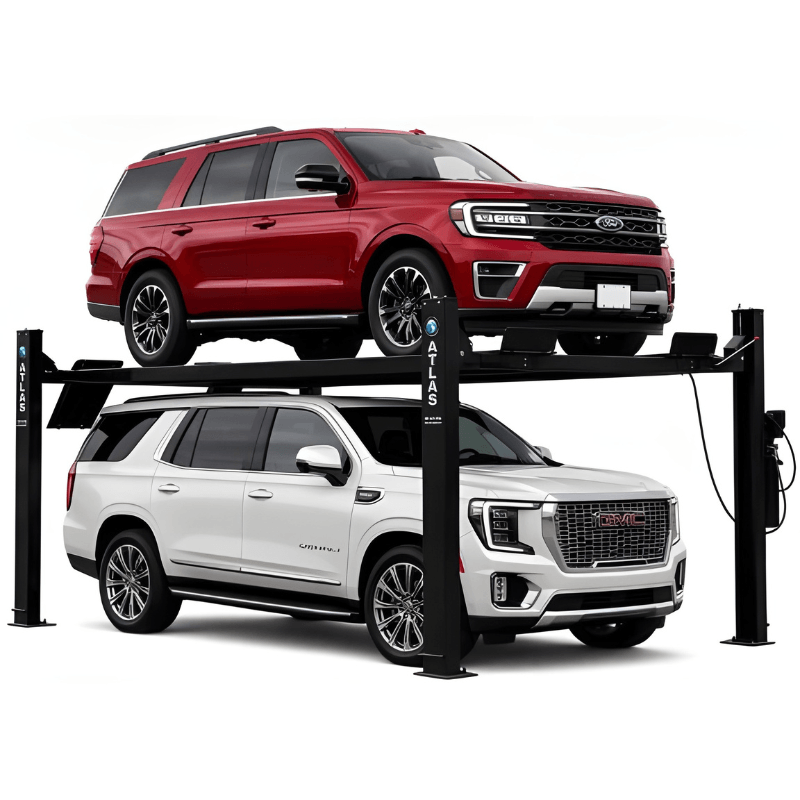

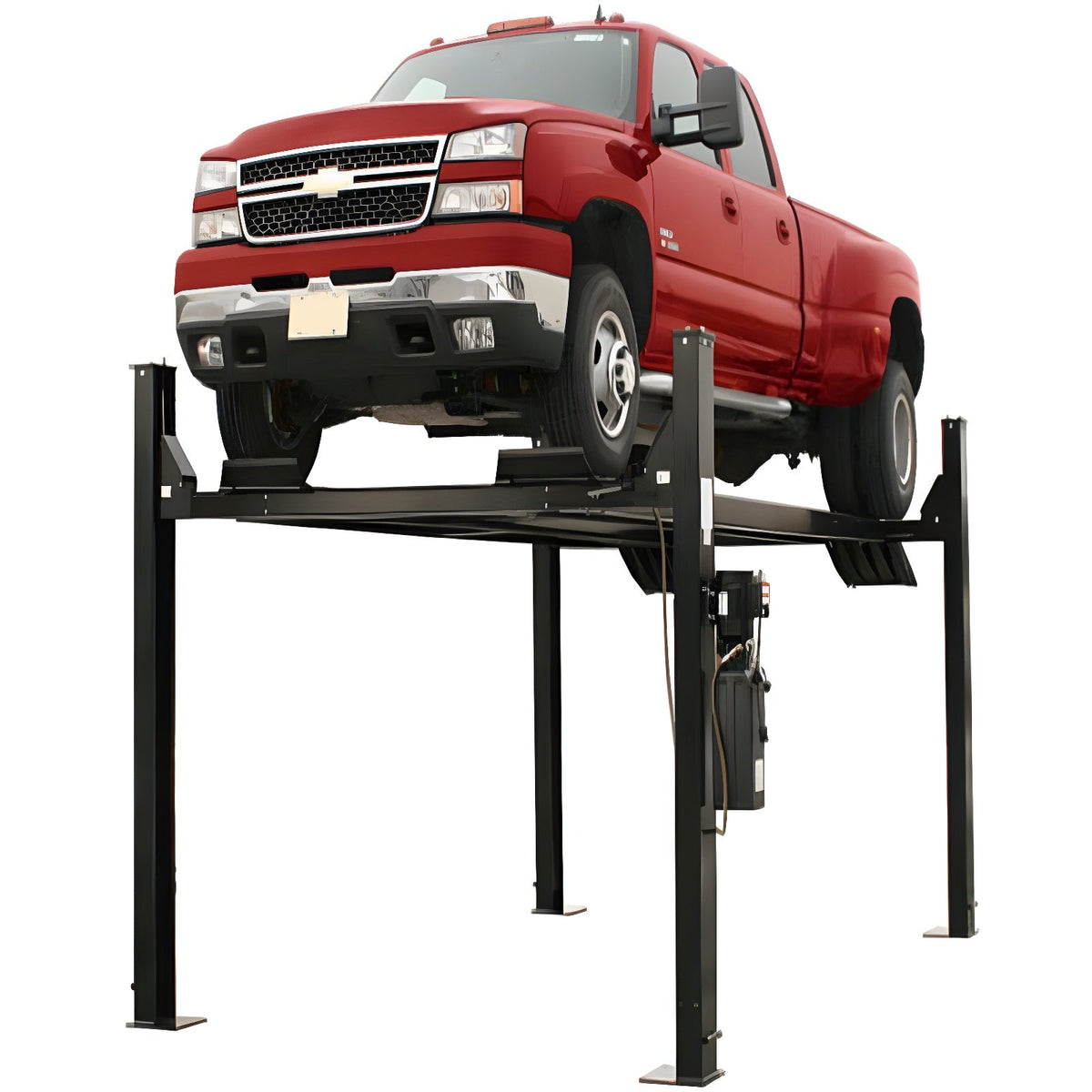

Heavy-Duty 9,000 lb Capacity. Extra-Wide Runways. Complete Lifting Solution with Two 6,000 lb Rolling Bridge Jacks.
The Atlas Automotive PRO9000 9,000 lb 4-Post Lift + (2) RJ6 Rolling Bridge Jacks Combo is designed for automotive shops, home garages, and vehicle enthusiasts who need additional lifting capacity, extended runway length, and room for larger vehicles. With a 9,000 lb lifting capacity, extra-wide configuration, and long runways, the PRO9000 accommodates a wide range of vehicles, including passenger cars, SUVs, full-size pickups, and compatible diesel dually trucks.
Built around a heavy-duty four-post design, the PRO9000 features a free-standing, portable configuration and an included caster kit with polyurethane wheels. Its single-point lock release, lock ladder design, and double-lock safety system provide convenient operation and additional security when raising and lowering vehicles. Included accessories feature steel approach ramps, a steel jack tray, four plastic drip trays, and two rubber wheel chocks.
This combo package includes two Atlas RJ6 6,000 lb rolling bridge jacks, allowing you to lift a vehicle's wheels off the runways for tire changes, brake service, and other maintenance work. Each RJ6 features air/hydraulic operation, multiple safety lock positions, smooth-rolling movement, and a scissor mechanism designed to support level lifting. A four-piece truck adapter set is included with each jack.
With a lifting height of up to 85 inches to the top of the runways and 80 1/4 inches of clearance underneath, the PRO9000 provides substantial vertical space for vehicle storage and service work. Its 199 1/2-inch runways, generous clearance between columns, and wide drive-through dimensions make it a versatile option for larger vehicles and long-wheelbase applications.
Whether you're maximizing garage storage, servicing trucks, or equipping a professional automotive shop, the Atlas PRO9000 and two RJ6 rolling bridge jacks combine vehicle storage capability with added wheel-free service access in one comprehensive lifting package.
Perfect for: Home garages • Diesel dually trucks • Full-size pickups • SUVs • Vehicle storage • Tire and brake service • Suspension work • Automotive repair shops
Benefits of the Atlas Automotive PRO9000 + (2) RJ6 Combo
The 9,000 lb capacity and extra-wide, extended-runway design accommodate a broad range of vehicles, including full-size pickups, SUVs, and compatible diesel dually trucks. Always verify vehicle weight, wheelbase, track width, and lifting-point compatibility before use.
The four-post lift provides elevated vehicle storage, while the two included RJ6 rolling bridge jacks provide additional flexibility for lifting vehicle wheels off the runways for maintenance. Together, they offer a versatile solution for both storage and service applications.
Each RJ6 uses an air/hydraulic system and scissor mechanism to lift a vehicle from the runways. Having two rolling jacks included provides additional flexibility for wheel, tire, brake, and other wheel-end service tasks when used within the manufacturer's requirements.
The 199 1/2-inch runways and generous clearance between columns provide space for many longer and wider vehicles. The PRO9000's extra height also provides substantial under-runway clearance for vehicle storage.
The single-point lock release, lock ladder design, and double-lock safety system help simplify lift operation. Each RJ6 also includes multiple safety lock positions. Always follow the manufacturer's instructions for lifting, locking, and supporting vehicles.
The free-standing design and included caster kit support relocation when needed. Installation, movement, and operation must follow the manufacturer's requirements, including the specified concrete and electrical provisions.
Features
Lift Capacity & Design
- 9,000 lb lifting capacity
- Extra-tall, extra-wide, and extra-long configuration
- Designed for compatible passenger cars, SUVs, and full-size trucks
- Free-standing, portable four-post lift design
- Suitable for vehicle storage and service applications
Lifting Height & Runways
- 85-inch lifting height to the top of the runways
- 80 1/4-inch clearance underneath the runways
- 199 1/2-inch runway length
- 21 1/4-inch runway width including rails

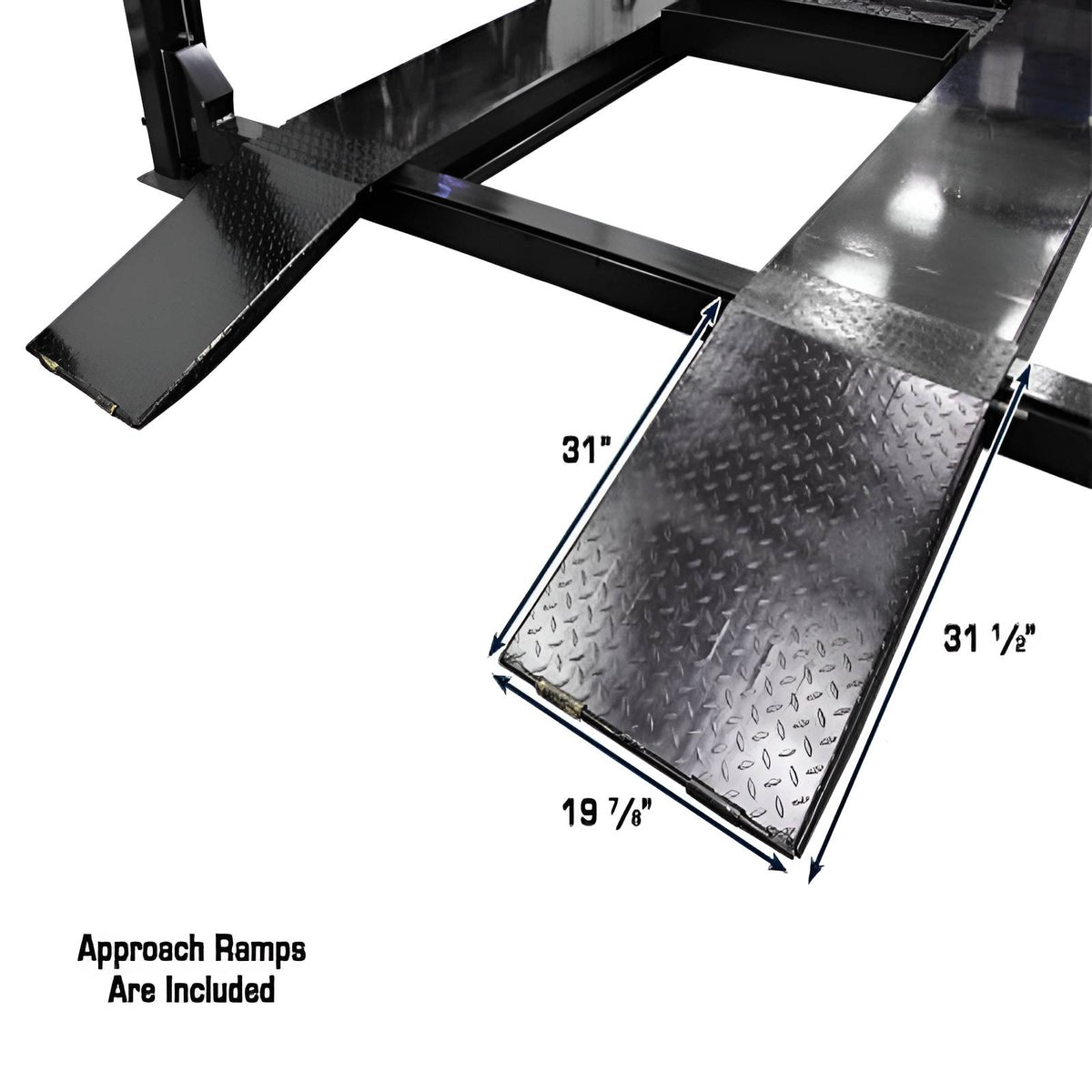

- 31-inch steel approach ramps

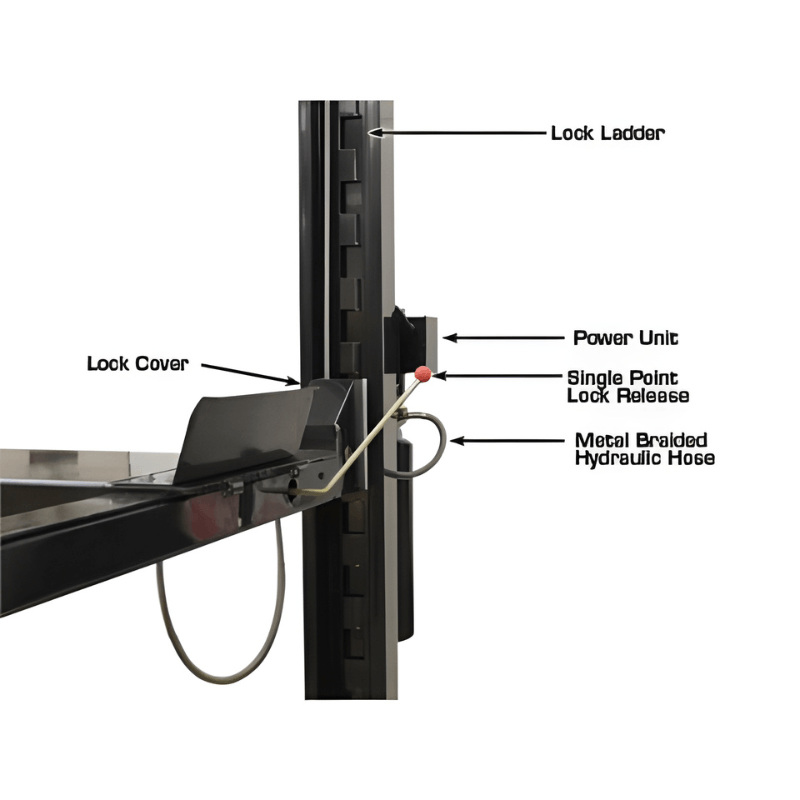

Lock System & Safety
- Single-point lock release

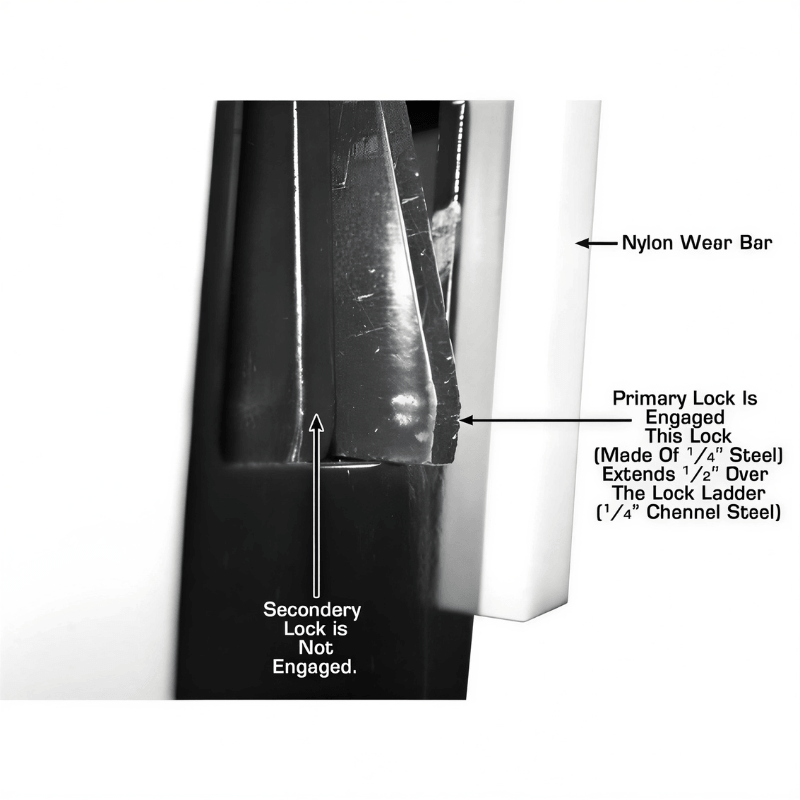

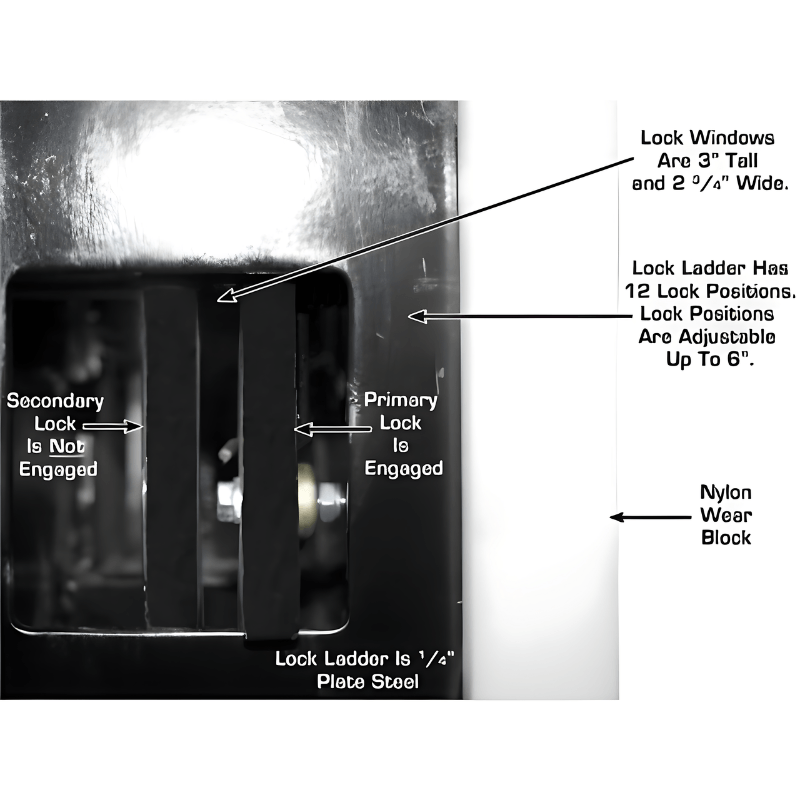

- Lock ladder design
- Double-lock safety system

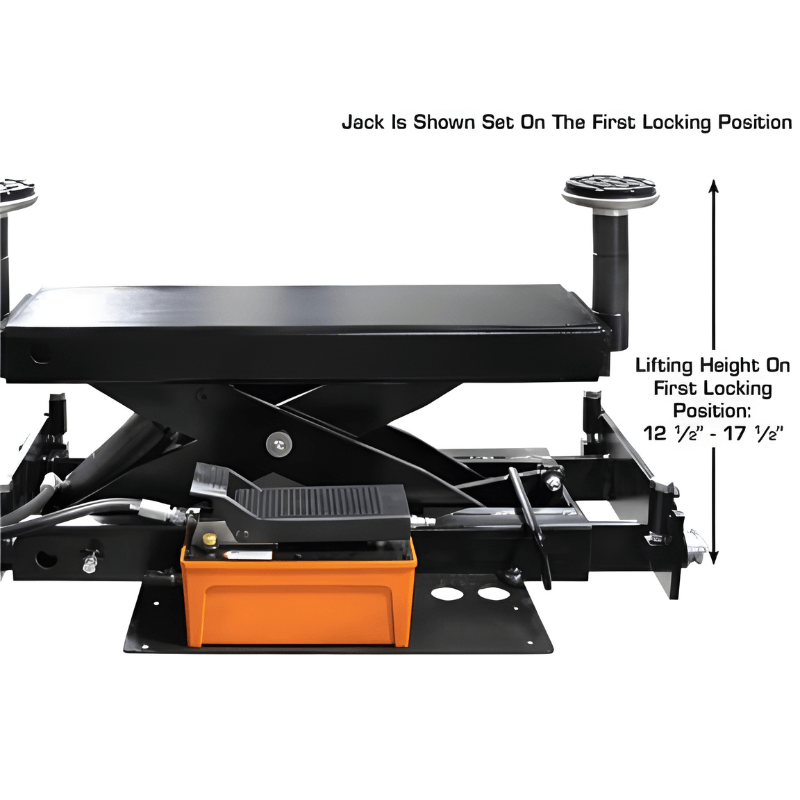

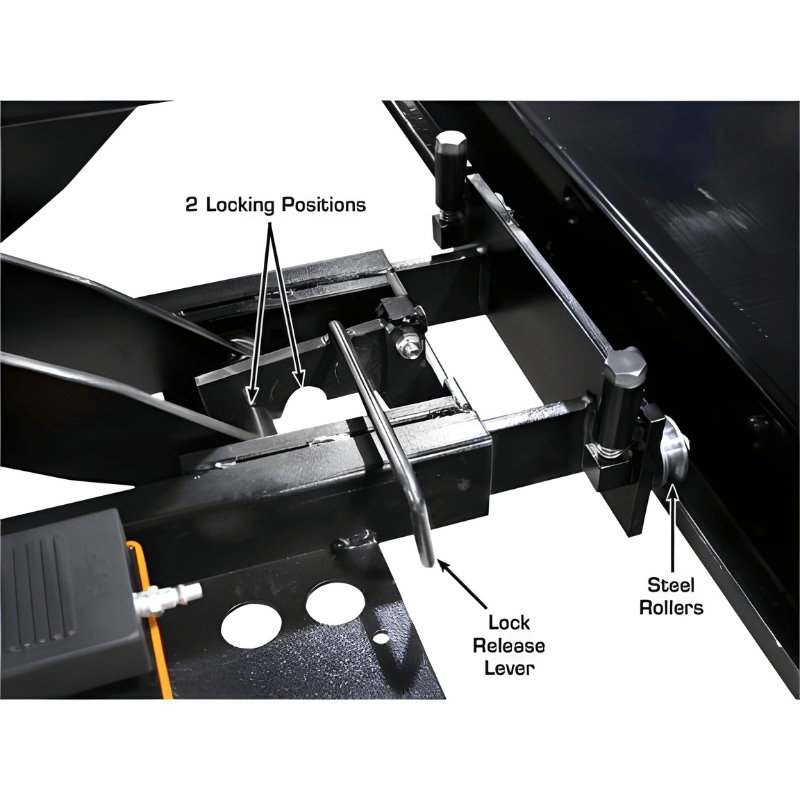

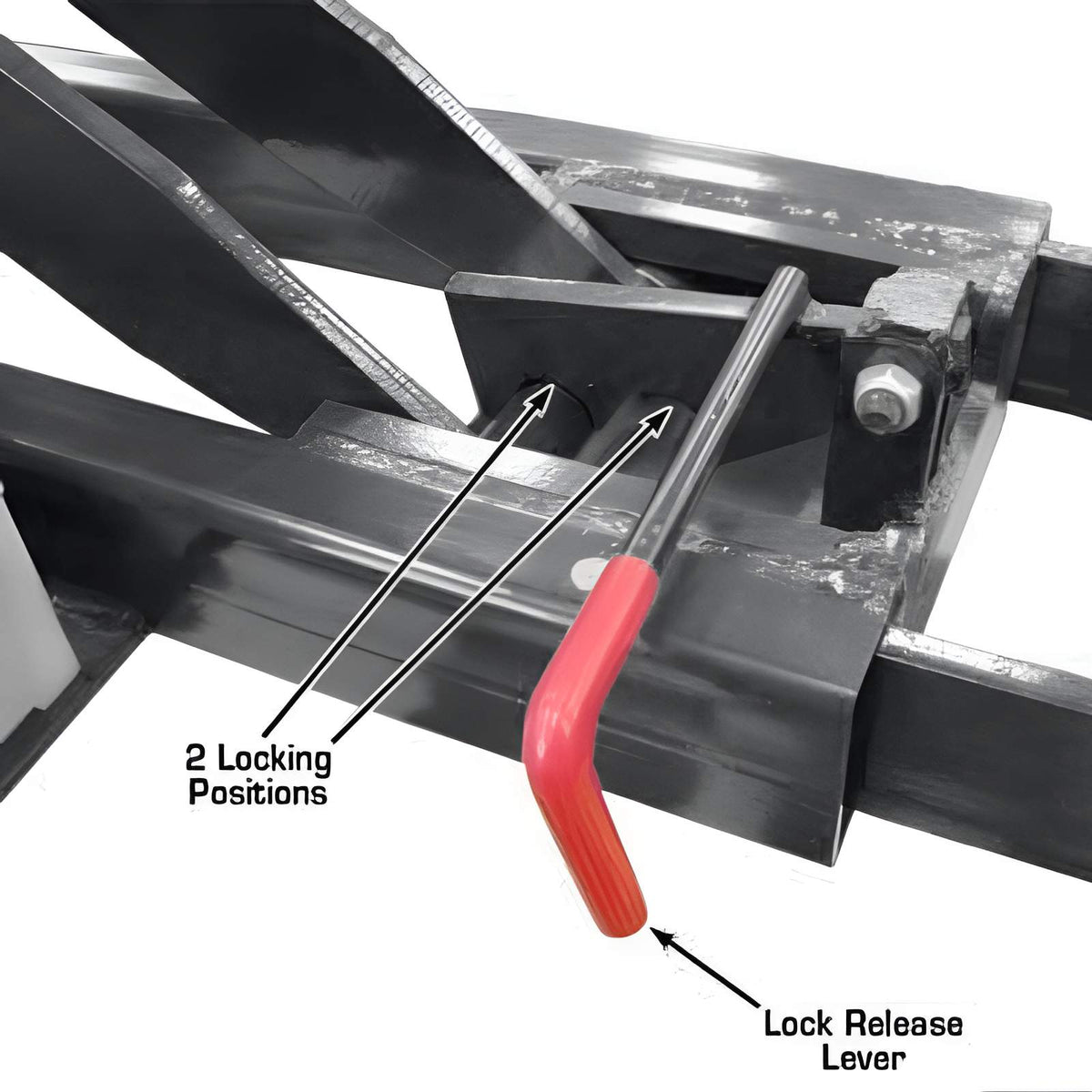

- Each RJ6 includes multiple safety lock positions
- Follow manufacturer instructions for safe lifting and storage
Two RJ6 Rolling Bridge Jacks
- Two jacks included
- 6,000 lb capacity per jack
- Air/hydraulic operation

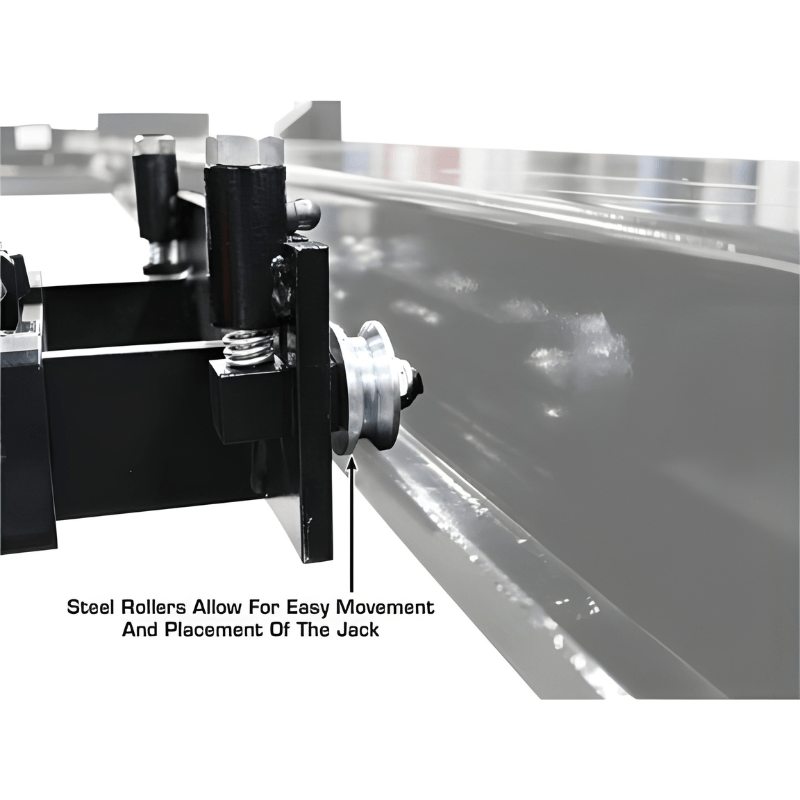

- Roller width adjusts from 35 to 55 inches
- Runway spacing capability: 32–52 inches

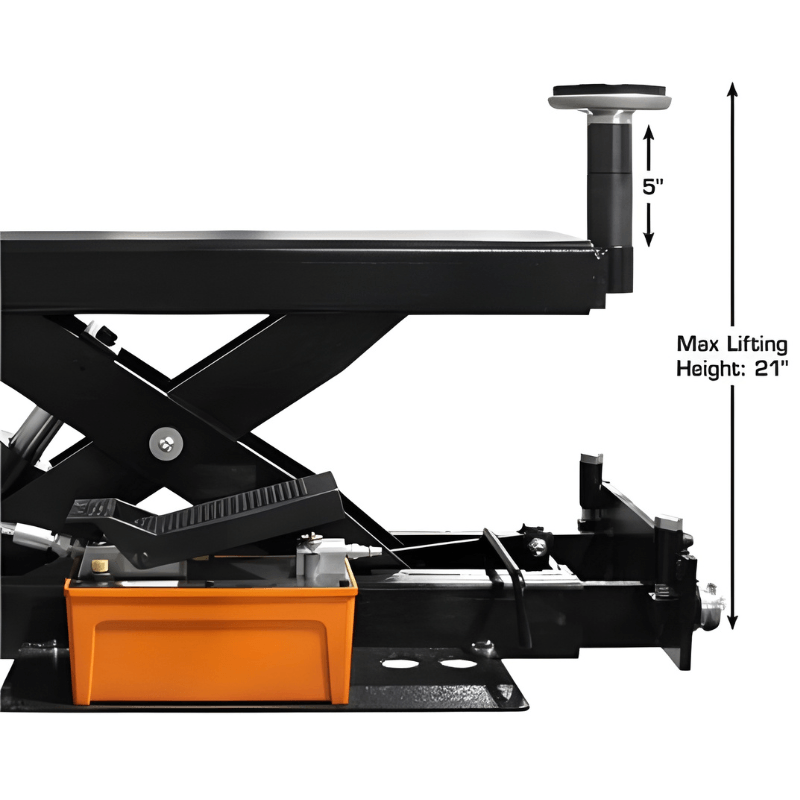

- Maximum lifting height with adapters: 21 inches

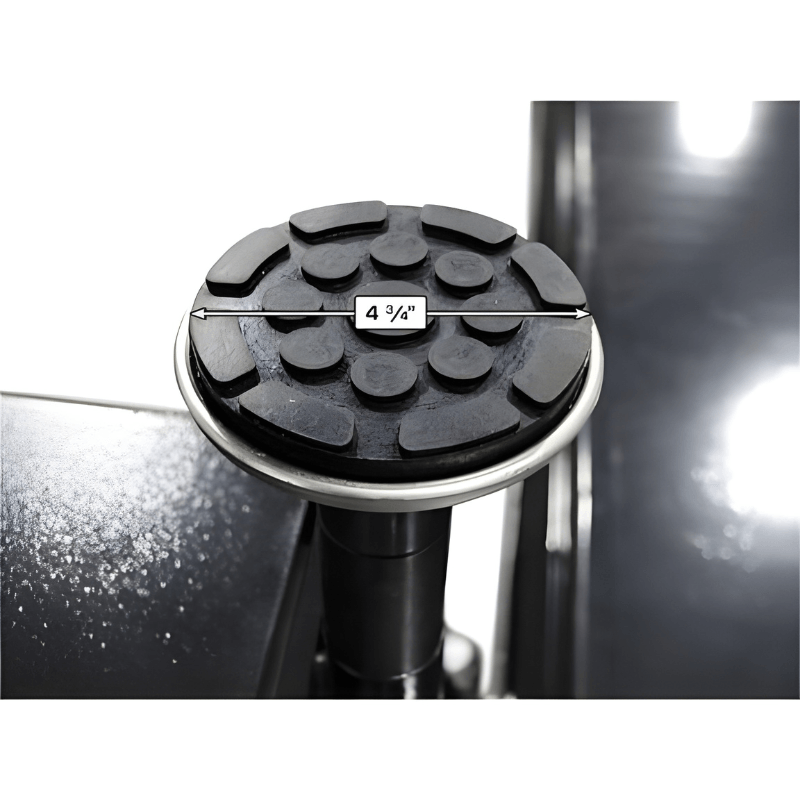

- Four-piece truck adapter set included with each jack
Mobility & Included Accessories

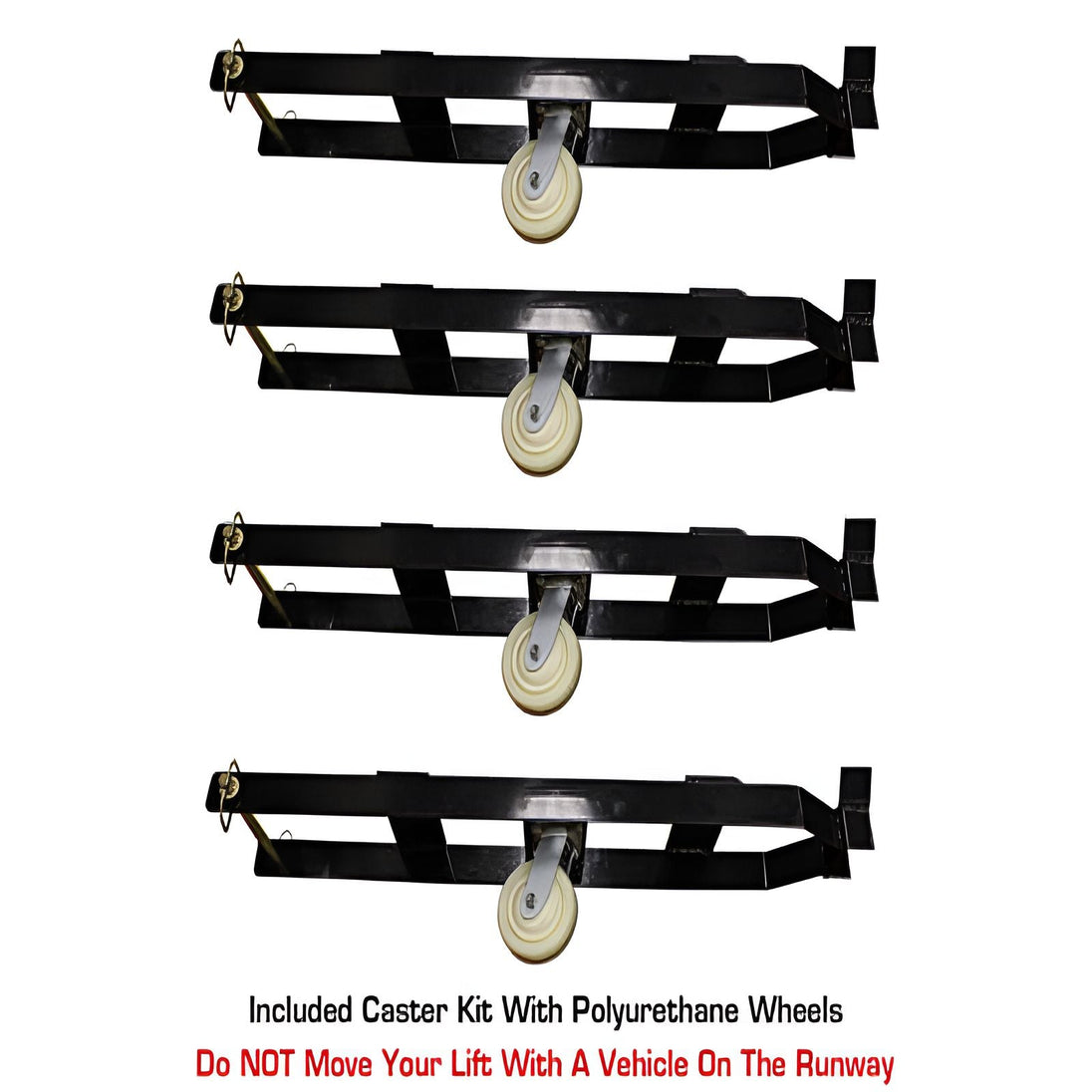

- Caster kit with polyurethane wheels
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays

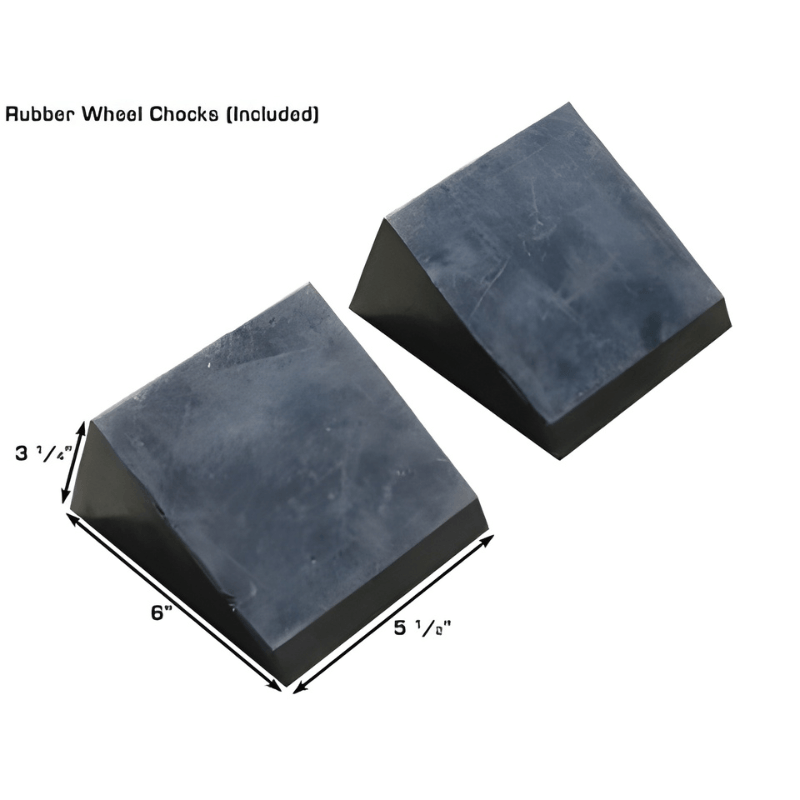

- Two rubber wheel chocks
- Two RJ6 rolling bridge jacks
Power & Installation
- 110V electrical supply for the PRO9000
- 30-amp breaker required
- Minimum 4-inch-thick concrete
- Concrete strength: 3,000 PSI minimum
- Each RJ6 requires an external compressed-air supply
- RJ6 air pressure requirement: 70–115 PSI
Specifications
General
- Manufacturer: Atlas Automotive Equipment
- Lift Model: Garage PRO9000
- Rolling Jack Model: RJ6 / RJ6BK
- Product Type: 4-Post Lift and Two Rolling Bridge Jacks
- Lift Capacity: 9,000 lbs
- Rolling Jack Capacity: 6,000 lbs each
- Number of Rolling Jacks Included: 2
- Lift Configuration: Four-post, free-standing design
Lifting Performance

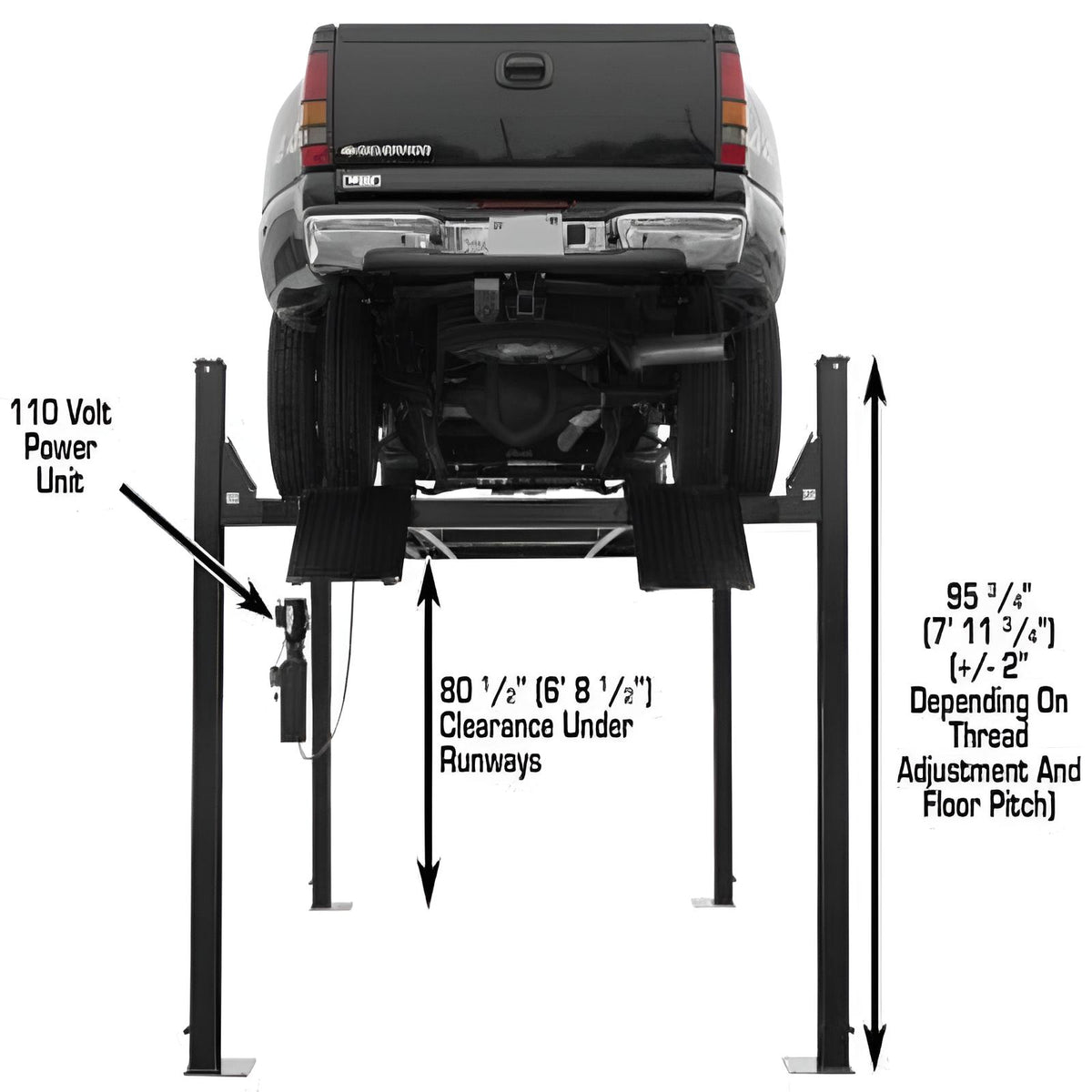

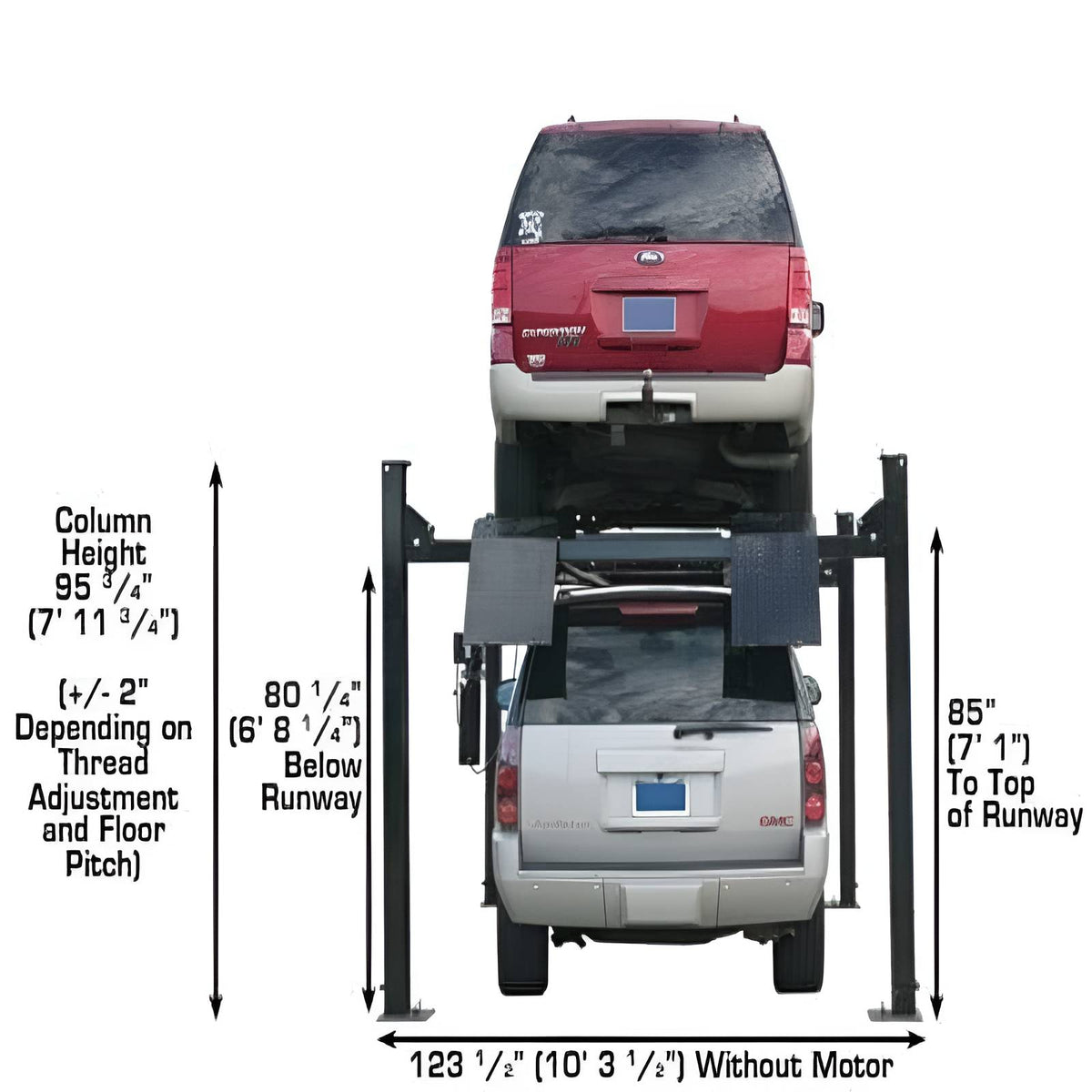

- Lift Height to Runway Top: 85 in (7 ft 1 in)
- Clearance Under Runways: 80 1/4 in (6 ft 8 1/4 in)
- Maximum Wheelbase: 187 in (15 ft 7 in)

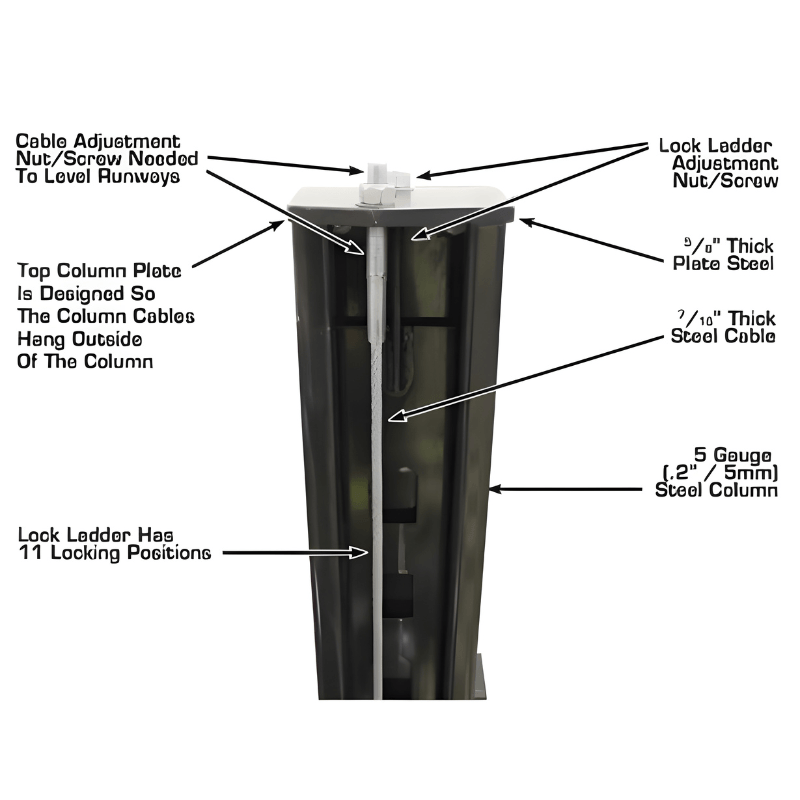

- Lift Lock System: Single-point release with lock ladder
- Lift Safety System: Double-lock design
- RJ6 Maximum Lifting Height with Adapters: 21 in
PRO9000 Structure & Dimensions

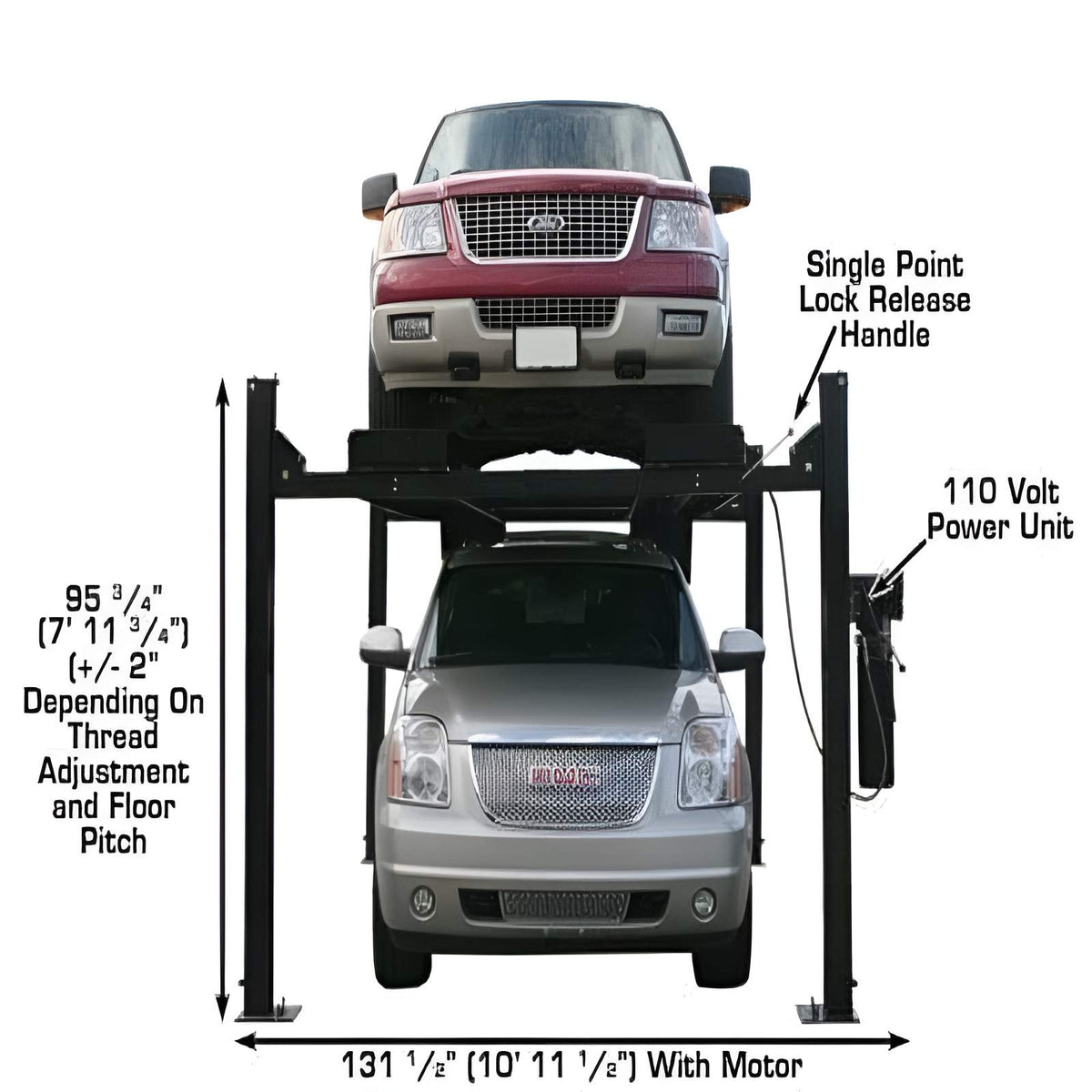

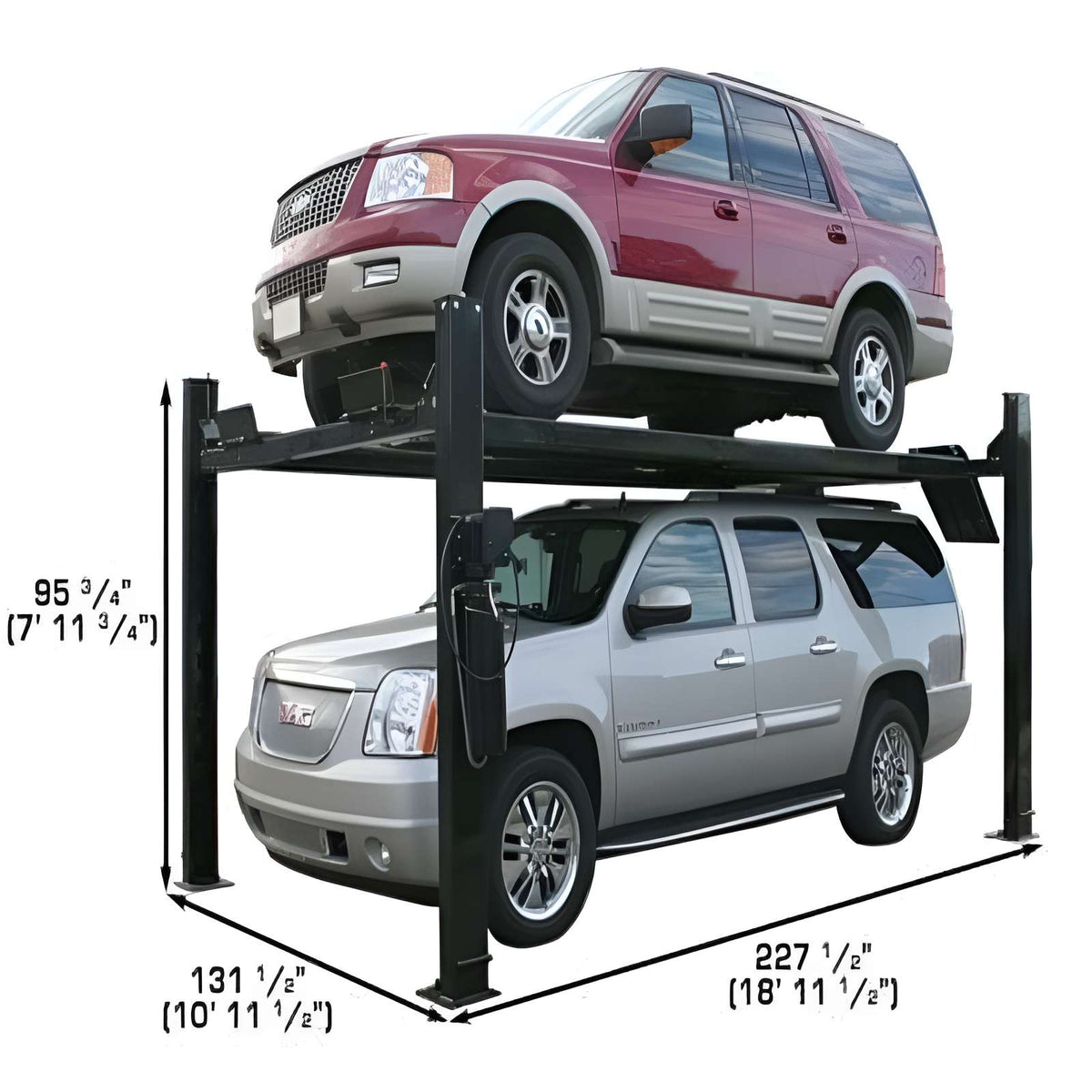

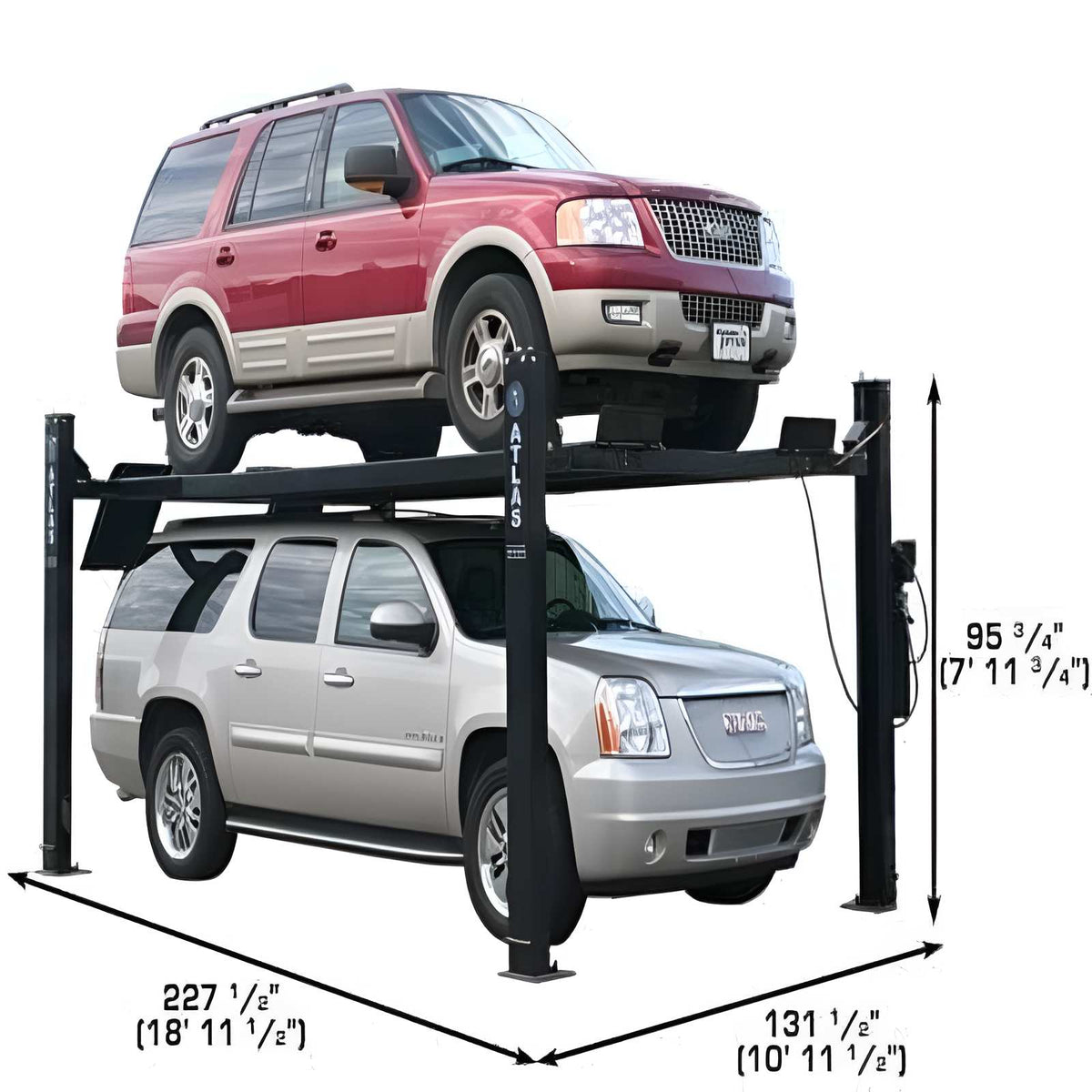

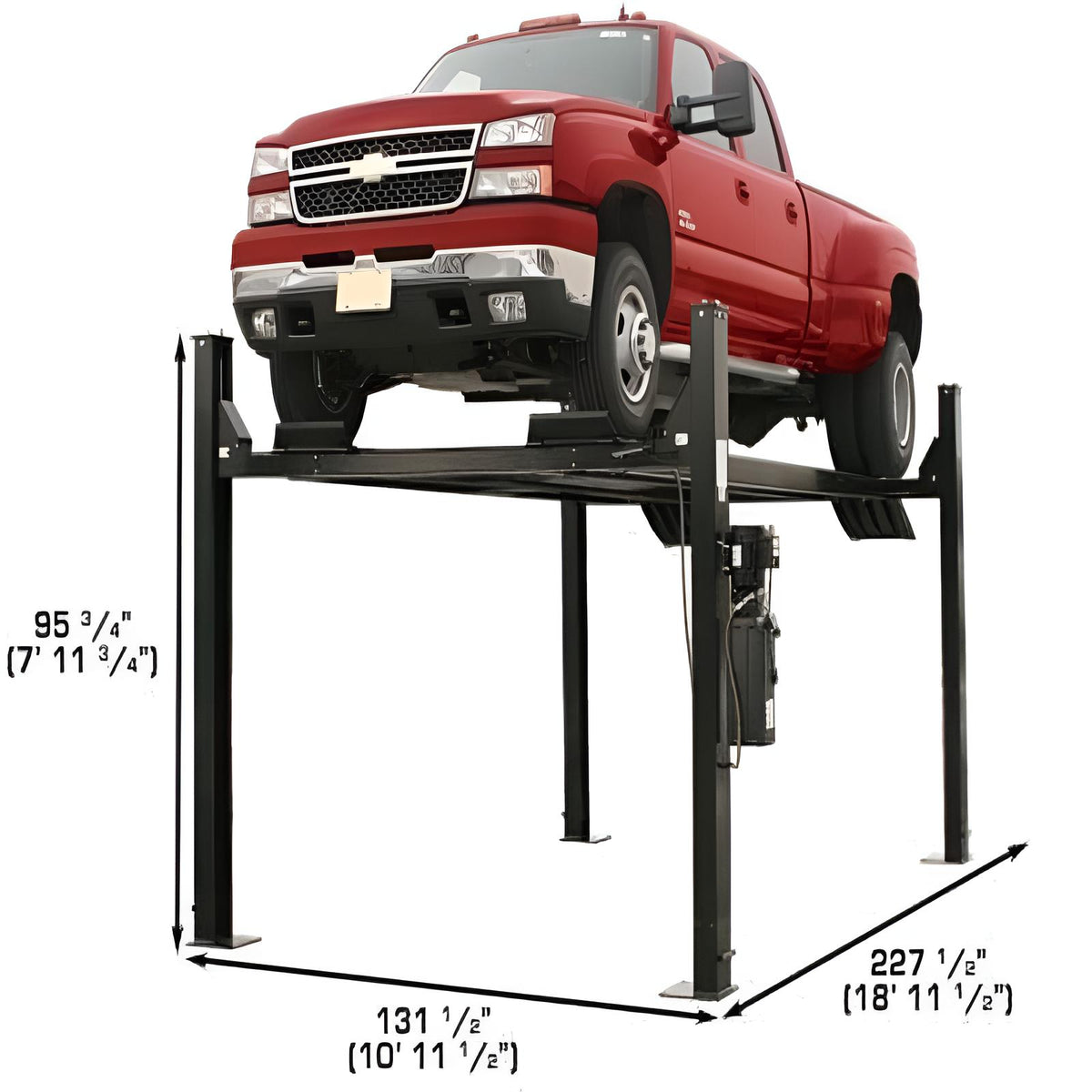

- Column Height: 95 3/4 in (7 ft 11 3/4 in)
- Overall Width Without Motor: 123 1/2 in (10 ft 3 1/2 in)
- Overall Width With Motor: 131 1/2 in (10 ft 11 1/2 in)

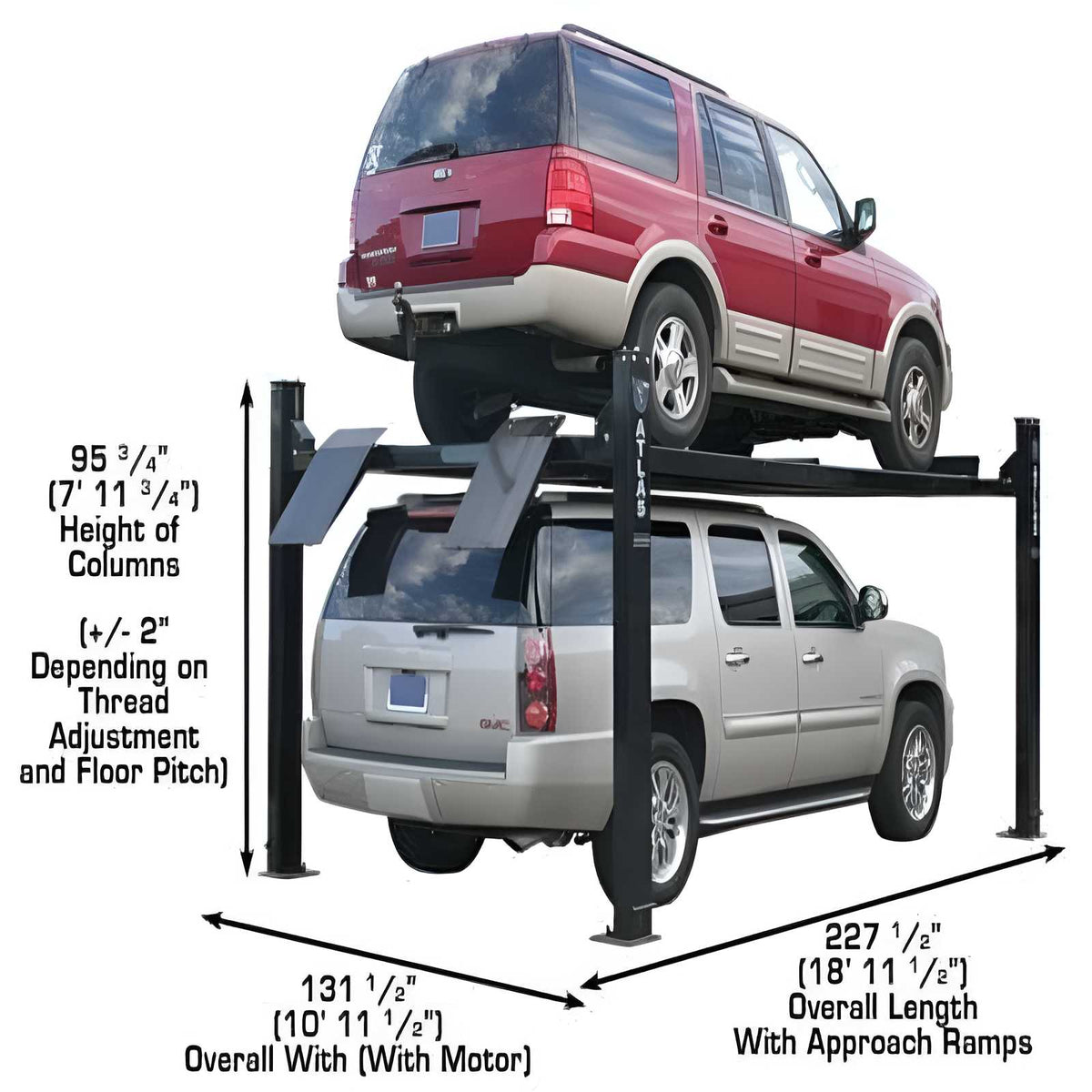

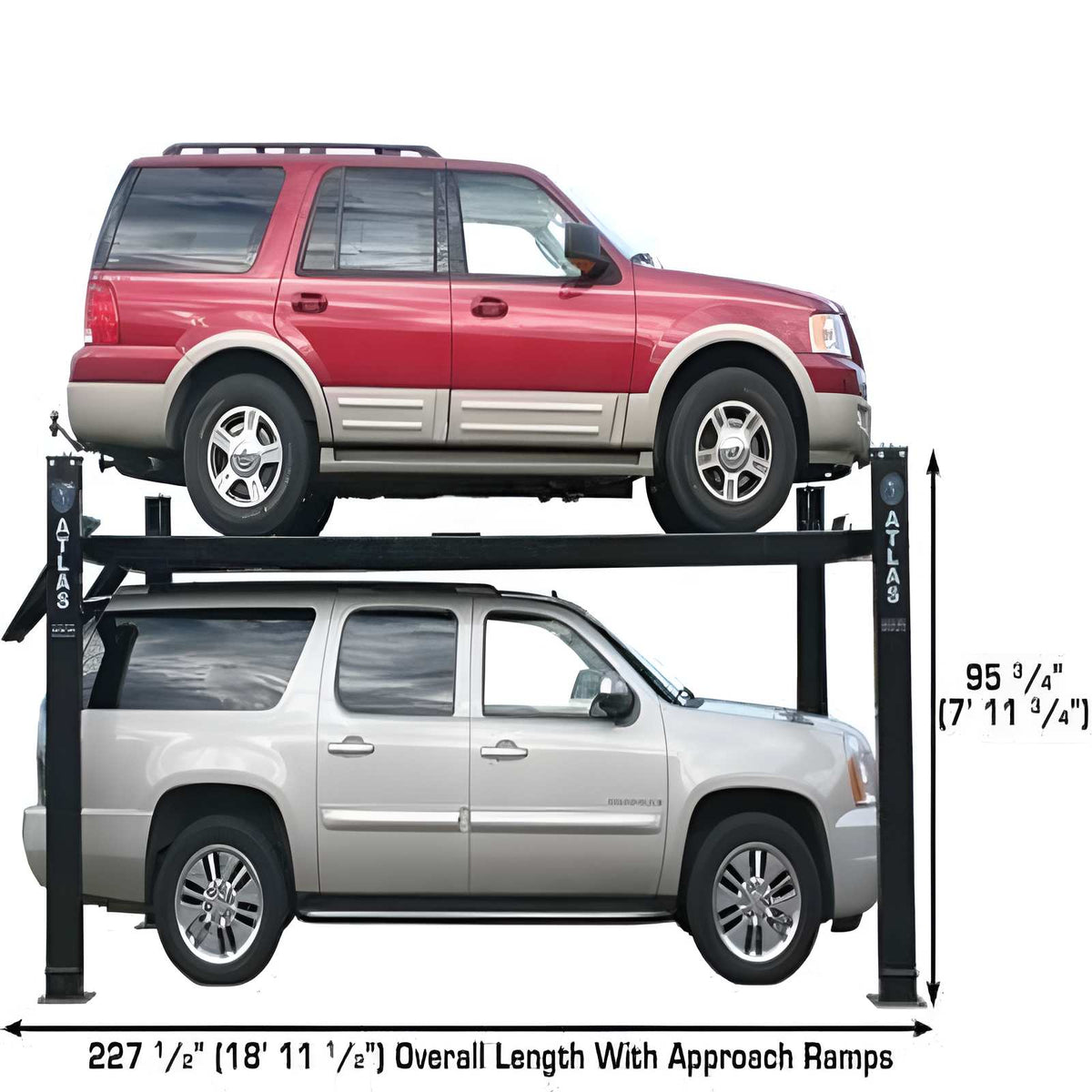

- Overall Length with Approach Ramp: 227 1/2 in (18 ft 11 1/2 in)
- Approach Ramp Length: 31 in
- Runway Length: 199 1/2 in (16 ft 7 1/2 in)

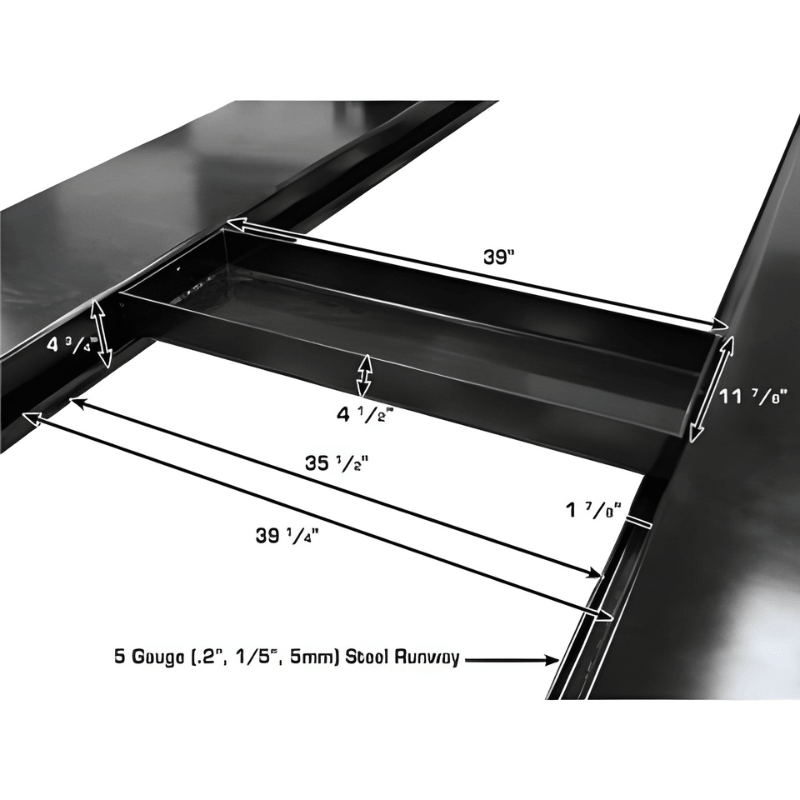

- Runway Width with Rails: 21 1/4 in
- Driving Surface Width: 20 in

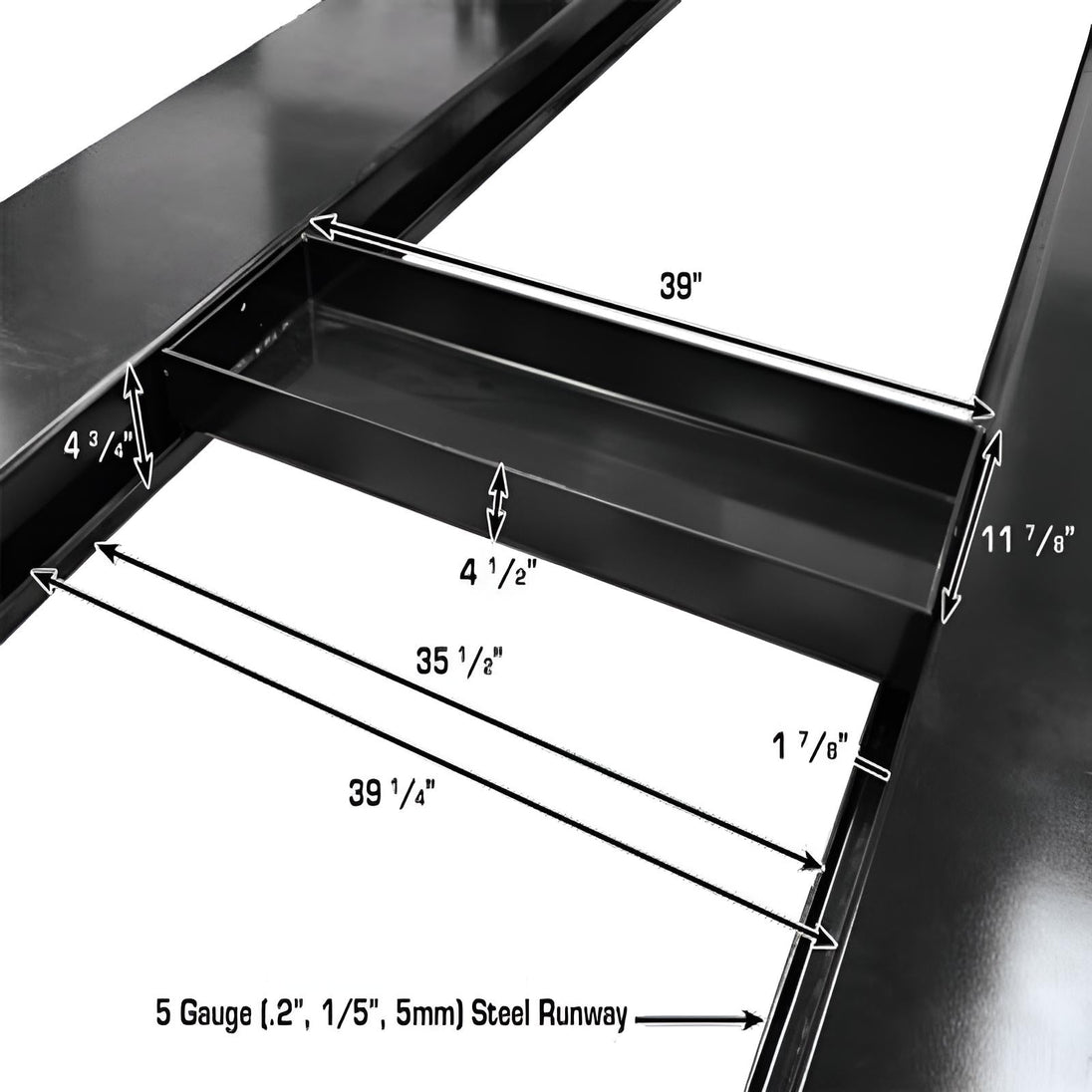

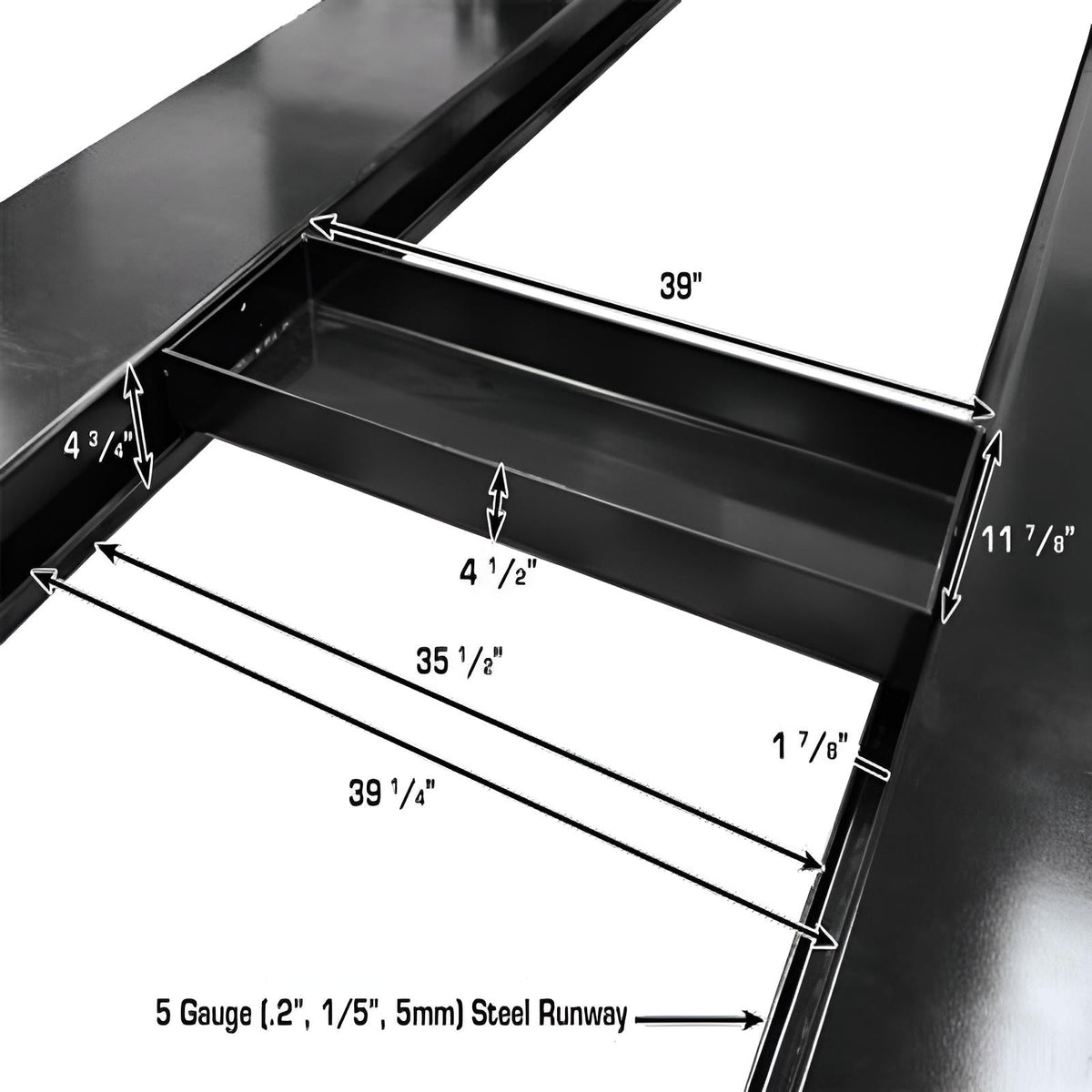

- Runway Thickness: 4 3/4 in
- Width Between Runways: 39 3/4 in
- Width Between Runway Rails: 35 1/2 in
- Outside Runway to Outside Runway: 79 in

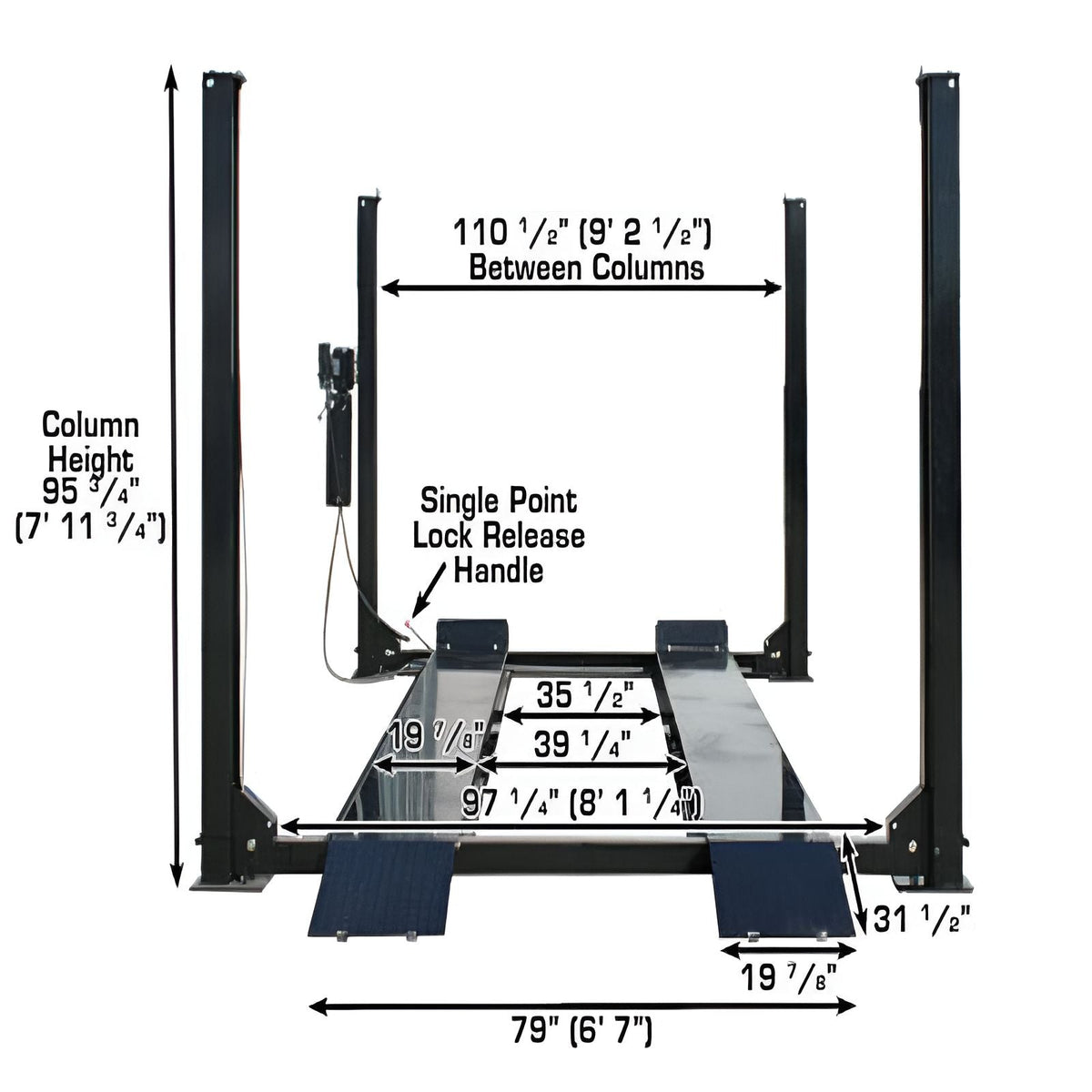

- Clearance Between Columns: 110 1/2 in

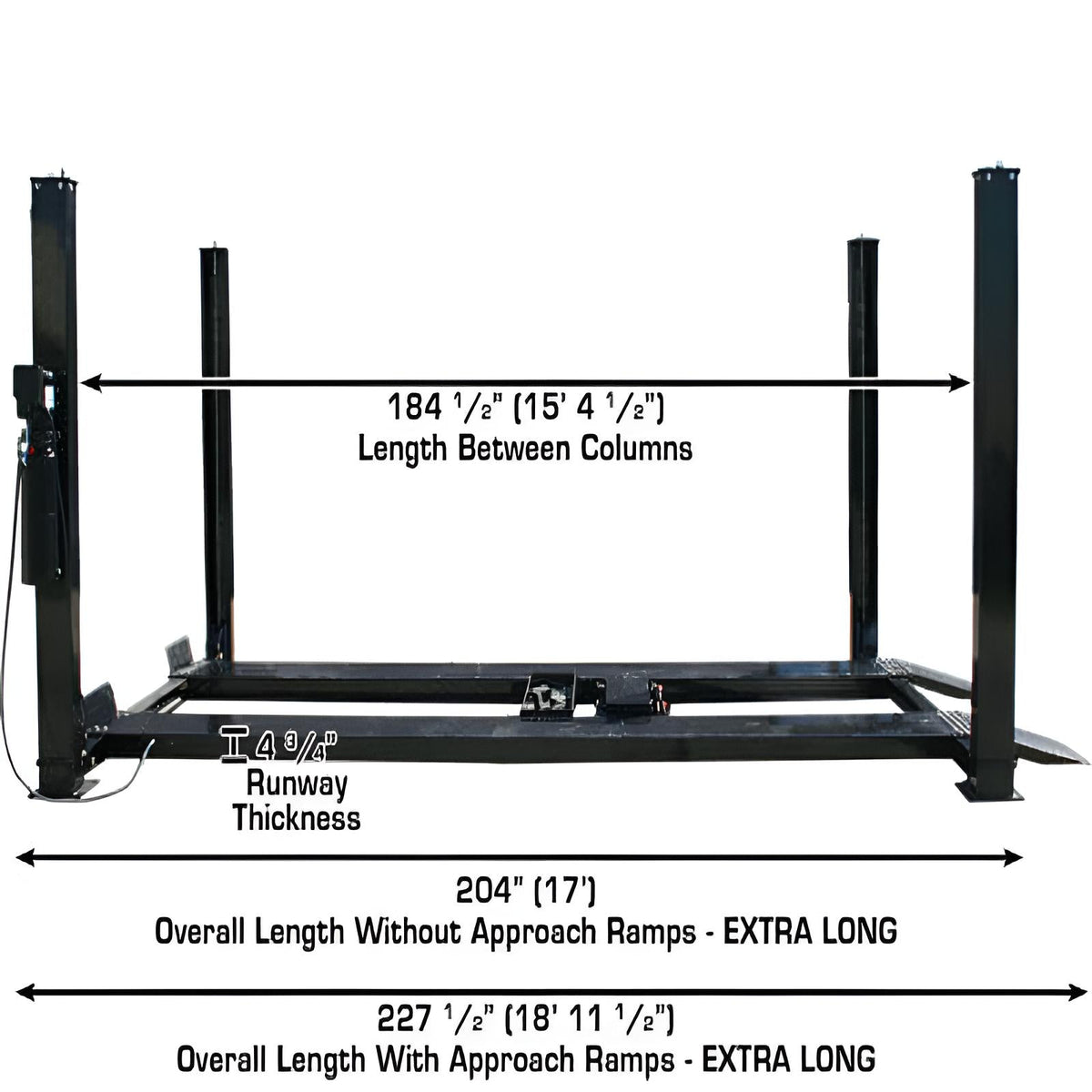

- Length Between Columns: 184 1/2 in
- Drive-Through Width, Outside Tire to Outside Tire: 97 1/4 in
PRO9000 Power & Installation
- Electrical Requirement: 110V
- Breaker Requirement: 30 amp
- Concrete Thickness: Minimum 4 in
- Concrete Strength: 3,000 PSI minimum

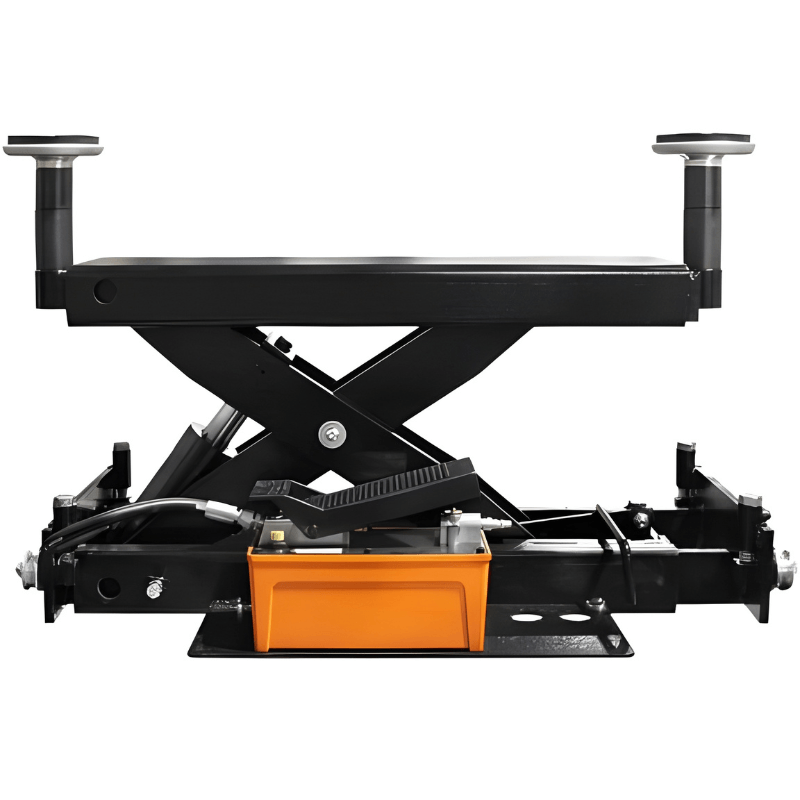

RJ6 Rolling Bridge Jacks
- Quantity Included: 2
- Capacity: 6,000 lbs each

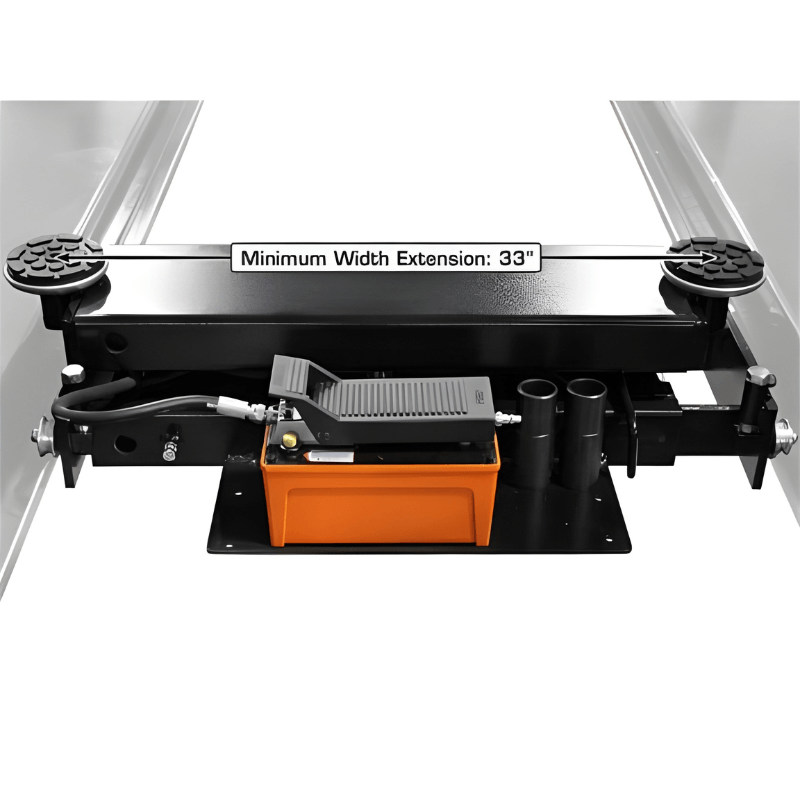

- Minimum Width: 35 in (2 ft 11 in)

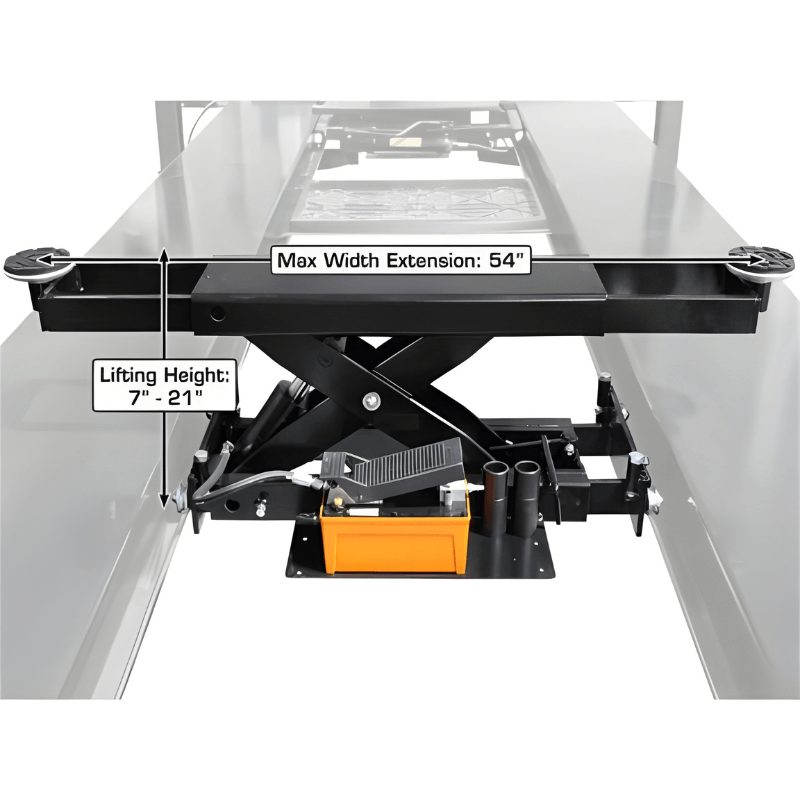

- Maximum Width: 55 in (4 ft 7 in)
- Runway Spacing Capability: 32–52 in
- Maximum Lifting Height with Adapters: 21 in
- Operation: Air/hydraulic
- Air Requirement: 70–115 PSI

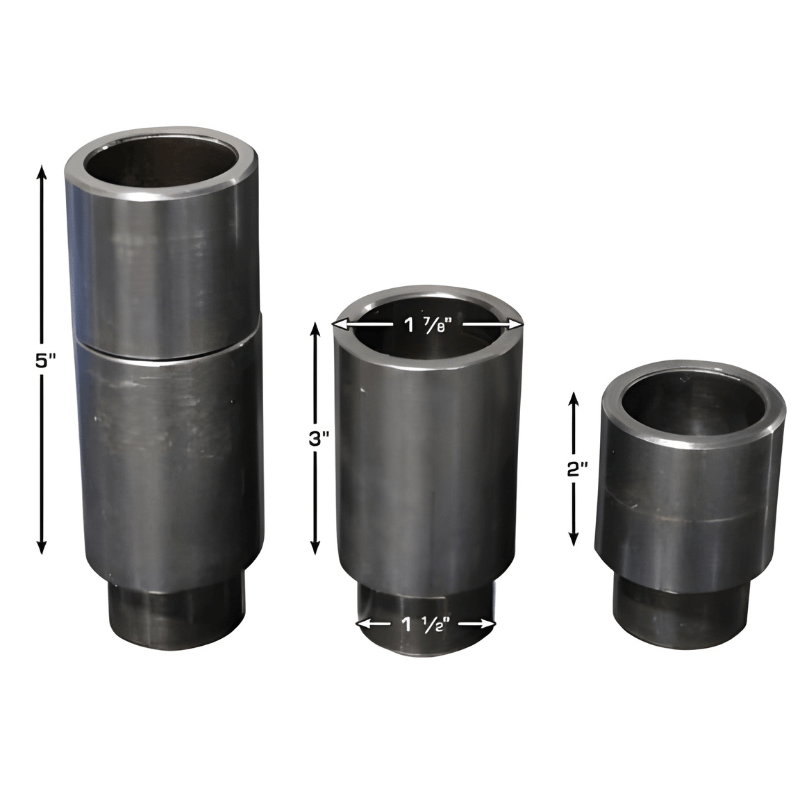

- Adapter Peg Size: 1.5 in
- Adapter Heights: Two each, 2 in and 3 in
- Included Adapters: Four-piece truck adapter set per jack

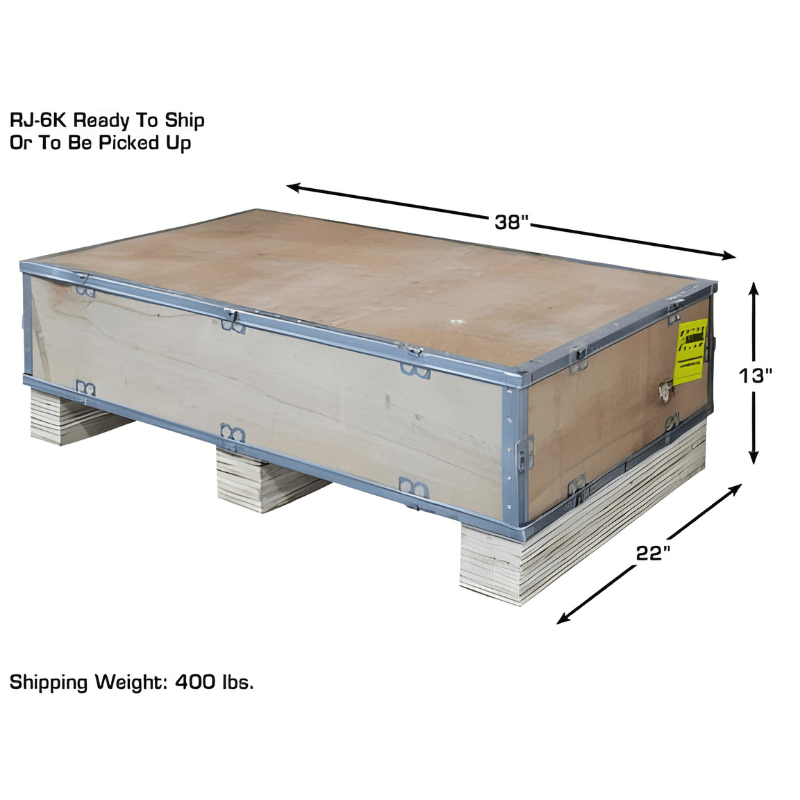

- Shipping Dimensions per Jack: 38 x 22 x 13 in
- Shipping Weight per Jack: 350 lbs
Included Accessories & Warranty
- PRO9000 Accessories: Caster kit, steel approach ramps, steel jack tray, four plastic drip trays, and two rubber wheel chocks
- RJ6 Accessories: Four-piece truck adapter set per jack
- PRO9000 Structural Warranty: 2 years
- PRO9000 Hydraulic Warranty: 1 year, parts only
- RJ6 Warranty: 1 year, parts only
- PRO9000 Shipping Weight: 2,300 lbs

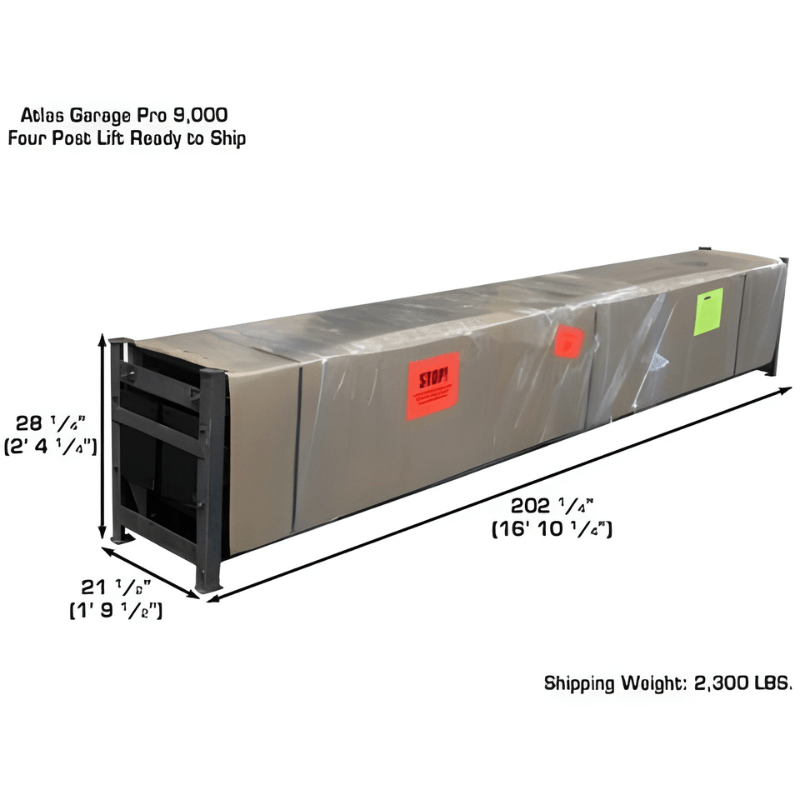

- PRO9000 Shipping Dimensions: 202 1/4 x 21 1/2 x 18 1/4 in (as listed by supplier)
Downloads
- Atlas Automotive PRO9000 Product Manual (PDF)
- Atlas PRO9000 Lift Diagram
- Atlas 4 Post Lift Bleeding Manual (PDF)
Important: The PRO9000 requires a suitable concrete surface and the specified electrical supply. Both RJ6 rolling bridge jacks require an external compressed-air supply, which is not included. Verify vehicle weight, dimensions, lifting points, runway spacing, and adapter compatibility before use. Follow all manufacturer installation, operating, and safety instructions.
-
Vendor: KATOOL
Katool 11,000 lb 4 Post Vehicle Lift - KT-4H110 - Heavy Duty Shop Lift
3 reviewsRegular price $3,299.00 -
Vendor: Atlas Auto Equipment
Atlas Automotive Pro9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ35 Rolling Bridge Jacks
No reviewsRegular price $6,799.00 -
Vendor: Atlas Auto Equipment
Atlas Garage Pro-9000 - 9000 lb 4 Post Vehicle Lift
No reviewsRegular price $4,899.00 -
Sold out
Vendor: Atlas Auto Equipment
Atlas Automotive Pro9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ45A Rolling Bridge Jacks
No reviewsRegular price $7,999.00
| 4-POST LIFT COMPARISON |
![]() KT-4H850
4-Post Storage Lift
8,500 LB
|
![]() KT-4H950
4-Post Storage Lift
9,500 LB
|
![]() KT-4H110
Heavy-Duty 4-Post Lift
11,000 LB
|
![]() KT-4H120X
Alignment Lift
12,000 LB
|
![]() KT-4H150
Alignment Lift
15,000 LB
|
|---|---|---|---|---|---|
| Capacity & Vehicle Support | |||||
| Lifting Capacity | 8,500 lbs | 9,500 lbs | 11,000 lbs | 12,000 lbs | 15,000 lbs |
| Best Vehicle Fit | Cars, SUVs, Light Trucks | Cars, SUVs, Performance Vehicles | Trucks & Long-Wheelbase Vehicles | Fleet Vehicles & Commercial Trucks | Duallys, Fleet Vans & Heavy Trucks |
| Lift Type | Storage / Parking Lift | Storage / Parking Lift | Heavy-Duty Service Lift | Alignment Lift | Heavy-Duty Alignment Lift |
| Lifting Performance | |||||
| Max Lift Height | 70.87" | 81" | 84.25" | 86.9" | ~75–76" |
| Underneath Clearance | — | 76.5" | 78.7" | 80" | Approx. 67" |
| Lifting Speed | 75 sec up / 40 sec down | 90 sec up / 40 sec down | 83 sec up / 40 sec down | ≤ 83 sec up / ≥ 40 sec down | ~60–95 sec up / ~55 sec down |
| Lock Positions | 12 Positions | Multiple Locks | 14 Positions | Mechanical Locks | 12 Positions |
| Structure & Dimensions | |||||

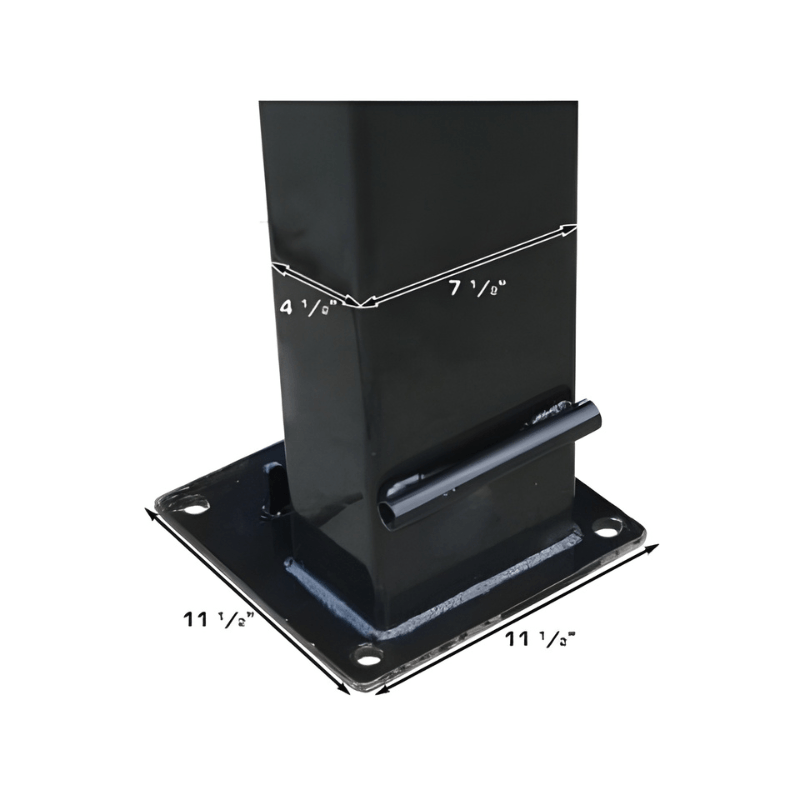

| Post Height | 83.66" | 97" | 94.88" | 94.88" | ~91.8–92" |
| Overall Width | 107.95" | 112.7" | 126" | 135.2" | ~136–138.8" |
| Overall Length (With Ramps) | 198.43" | 214.96" | 229.73" | 258" | ~245.31" |
| Runway Length | 172" | 173" | 181.9" | 205" | Heavy-Duty Diamond Plate |
| Width Between Columns | 94.72" | 99.4" | 112.81" | 112.81" | 118.11" |
| Power & Electrical | |||||
| Motor Configuration | 110V Standard / 220V Optional | 110V or 220V / 3HP | 110V or 220V / 3HP | 220V / 1PH | 220V / 1PH (110V Optional) |
| Breaker Requirement | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit |
| Concrete Requirement | Standard Garage Slab | 4" @ 3,000 PSI | Standard Shop Concrete | 5.9" @ 3,000 PSI | 5.9" @ 3,000 PSI |
| Safety & System Design | |||||
| Safety Certification | CE Certified | Mechanical Lock System | CE Certified | Dual Lock + Limit Switch | CE Certified |
| Lock Release | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual |

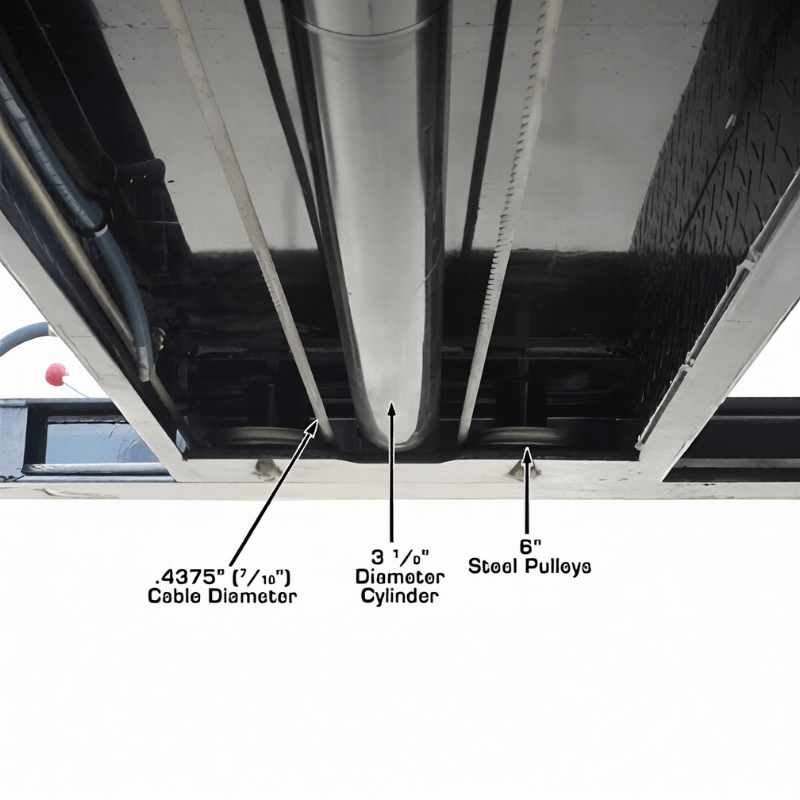

| Synchronization | Steel Equalization Cable | Cable & Pulley System | Hydraulic + Cable System | Quad Cable & Pulley System | Steel Cable & Pulley System |
| Included Equipment & Features | |||||

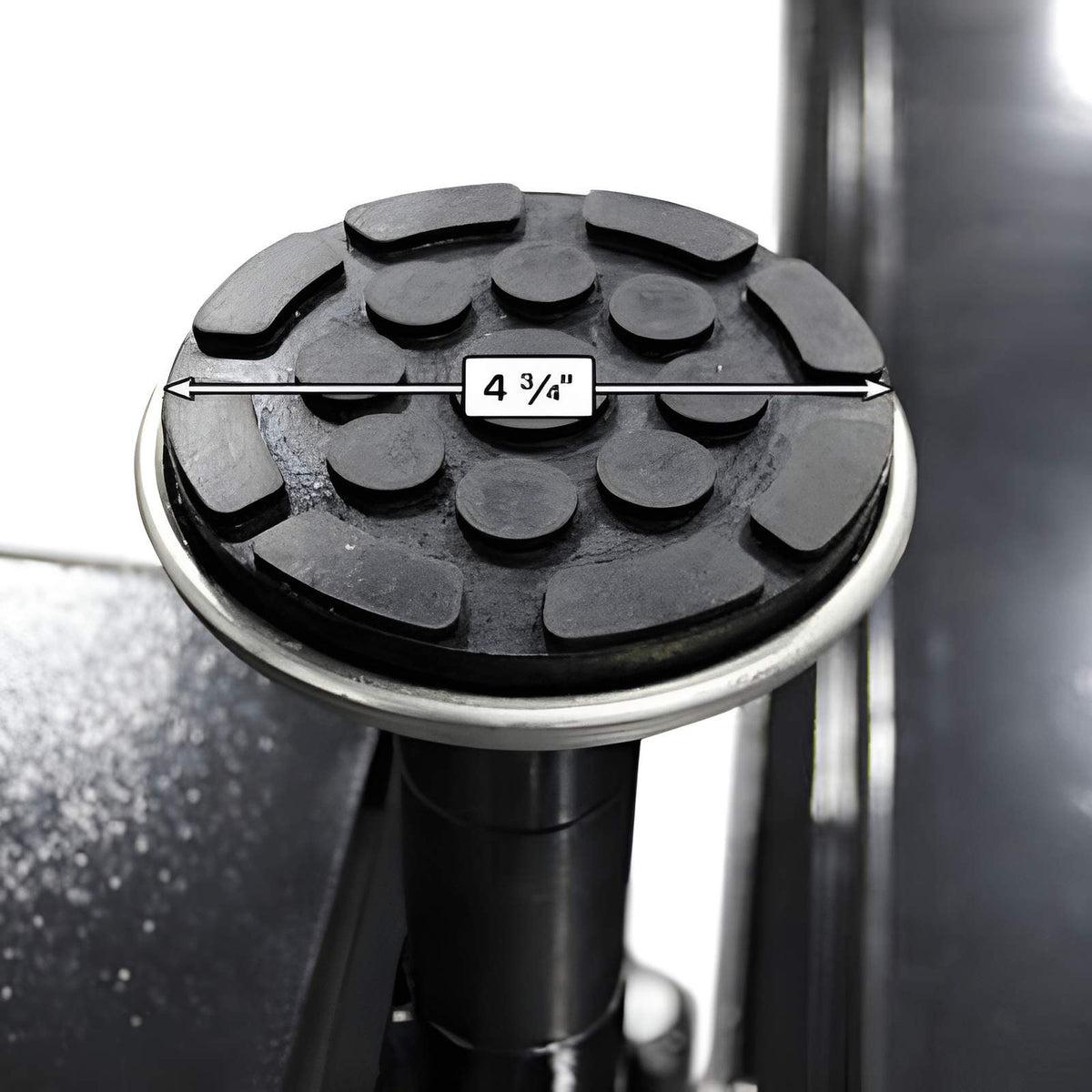

| Rolling Jack Included | No | Optional | Optional | RJ70 7,000 lb Included | 6,000 lb Included |
| Alignment Ready | No | No | No | Yes | Yes |
| Included Accessories | Caster Kit, Drip Trays, Jack Tray | Casters, Aluminum Ramps, Jack Tray | Drip Trays, Jack Tray, Ramps | RJ70 Rolling Jack Included | Rolling Jack, Jack Tray, Drip Trays |
| Runway Surface | Diamond-Plate Non-Skid | Diamond-Plate Non-Skid | Non-Skid Steel | Alignment Platform | Diamond-Plate Non-Skid |
| Best For... |
Low Ceiling Garages Residential users needing an affordable storage lift with mobility. |
Vehicle Storage Stacked parking, collector cars, and light-duty maintenance work. |
Heavy-Duty Home Shops Long-wheelbase trucks, SUVs, and general repair service applications. |
Alignment & Fleet Work Commercial shops needing alignment capability and wheels-free service. |
Maximum Capacity Heavy commercial vehicles, dually trucks, and high-volume service facilities. |
Customers are saying
You have no items in your shopping cart.
- Choosing a selection results in a full page refresh.
