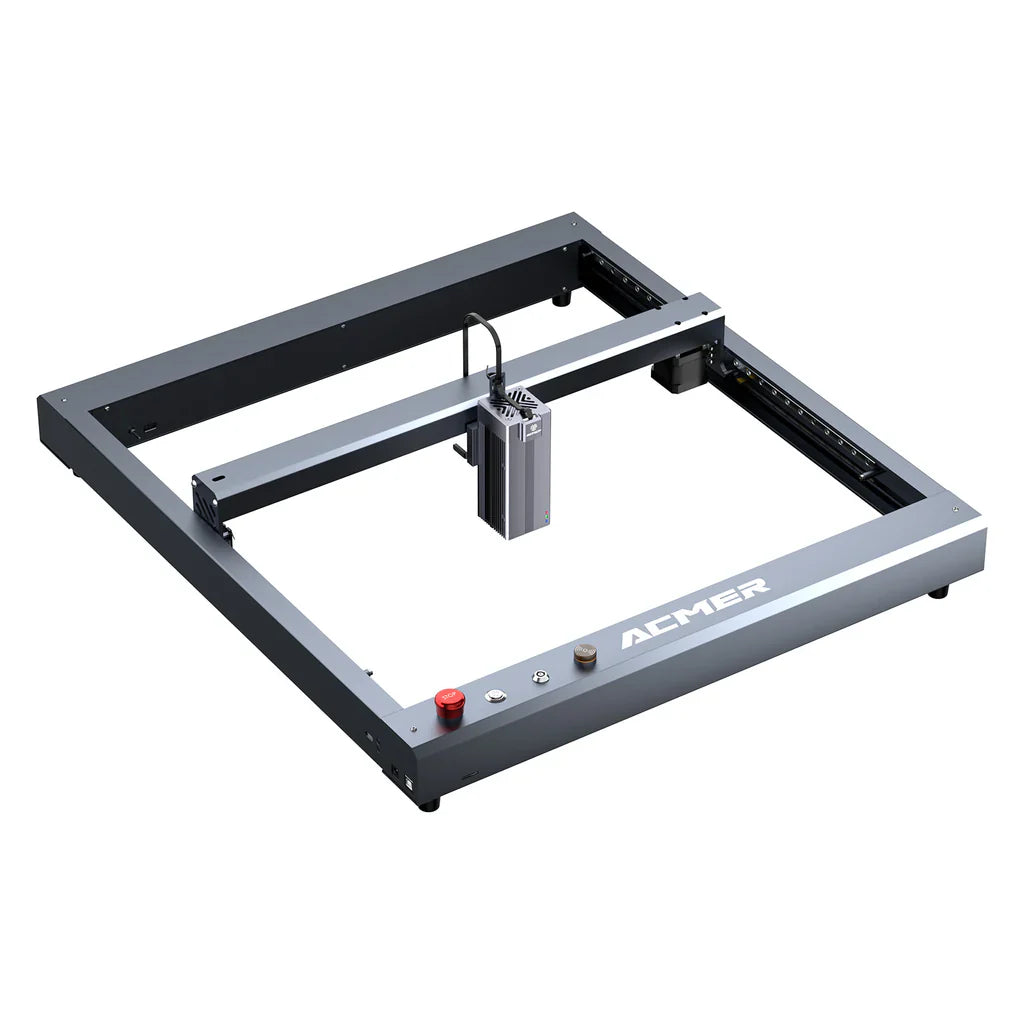

ACMER P2 IR 2w Fiber Laser Engraver

Rust removal on metal surfaces

The 1064nm infrared laser can be used for rust removal on metal surfaces.

Lightweight aluminum casing

Smoother and more stable mechanical movement.

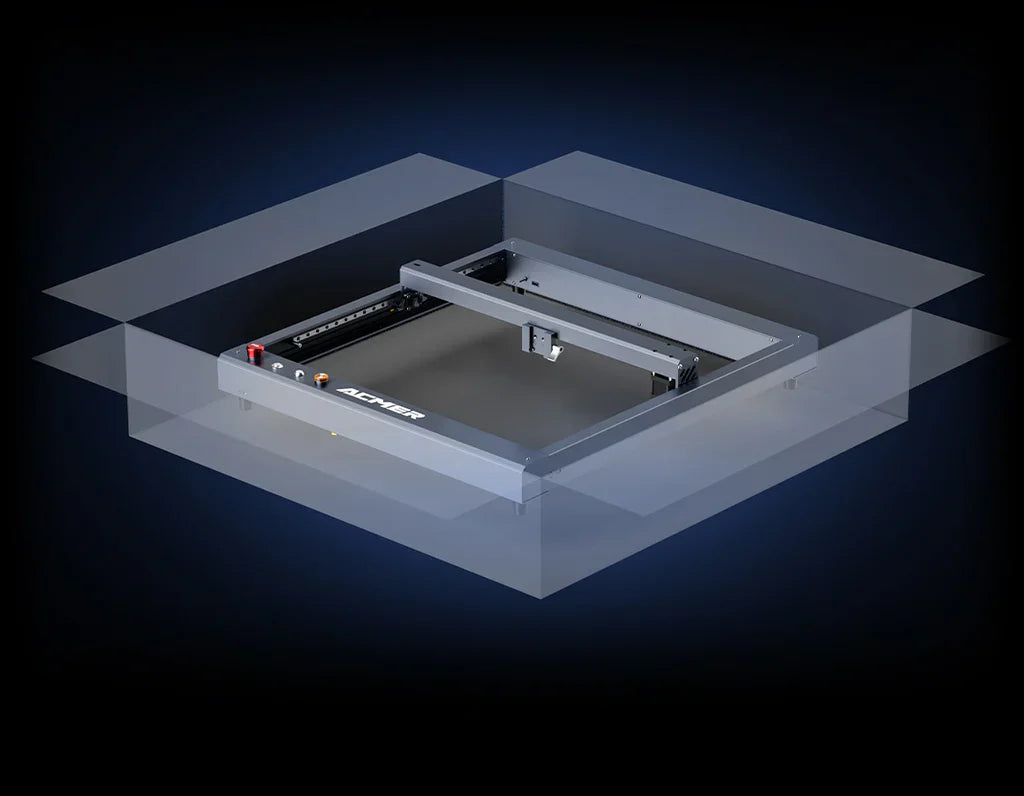

Unbox and start using instantly!

lnexperienced beginners often encounter difficulties when assembling a machine, but withACMER P2 Pre-Assembled Edition, the machineis already assembled and rigorously tested before leaving the factory, ensuring a superior user experience.

0.03mm ultra-fine laser spot

Incorporating advanced spot compression technology, enabling finer engraving. Bring your artwork to life with lifelike precision.

1064nm infrared laser

1.Versatile metal engraving: The infrared laser is highly suitable for engraving common metals such as copper, iron, brass, aluminum, silver, and zinc, producing clear engraving effects. It compensates for the limitations of diode lasers in metal engraving.
2.Various materials including plastics: It can perform high-speed and fine engraving on plastics, as well as engrave on black acrylic, leather, ceramics, and slate. It has a wide range of applications.

Features

Incredibly Fast! Higher Efficiency!

With a blazing speed of up to 30,000 mm/min, this engraving system inherits the proven motion control technology from ACMER Lab. Its robust mechanical structure ensures faster engraving times for artworks, without compromising on stability or ultra-high precision.

Industial Guide Rails

The X and Y axis are equipped with industrial-grade linear guides, featuring superior structural design for enhanced stability and precision in engraving. Achieve a photo-quality experience with ultra-high pixel resolution

What are the security features of the ACMER P2 IR?

Flame detector

Stop working and sound an alarm onceflame and smoke are detected.

Gyroscope Tilt Detector

Automatically stops working when tilted more than 15, to prevent the laser from causing injury to the human body or damaging objects,a good protection for your safety.

Child safety lock

ACMER P2 Laser engraver and cutter is equipped with a safety key that needs to be inserted to turn on the switch in order to work, preventing children from misusing the machine.

Emergency stop switch

When the machine is working the machine can be stopped immediately by the emergency stop switch.

Alarm lights and buzzers

Eye-catching yellow alarm indicator light gives you the quickest response to any malfunction or accident.

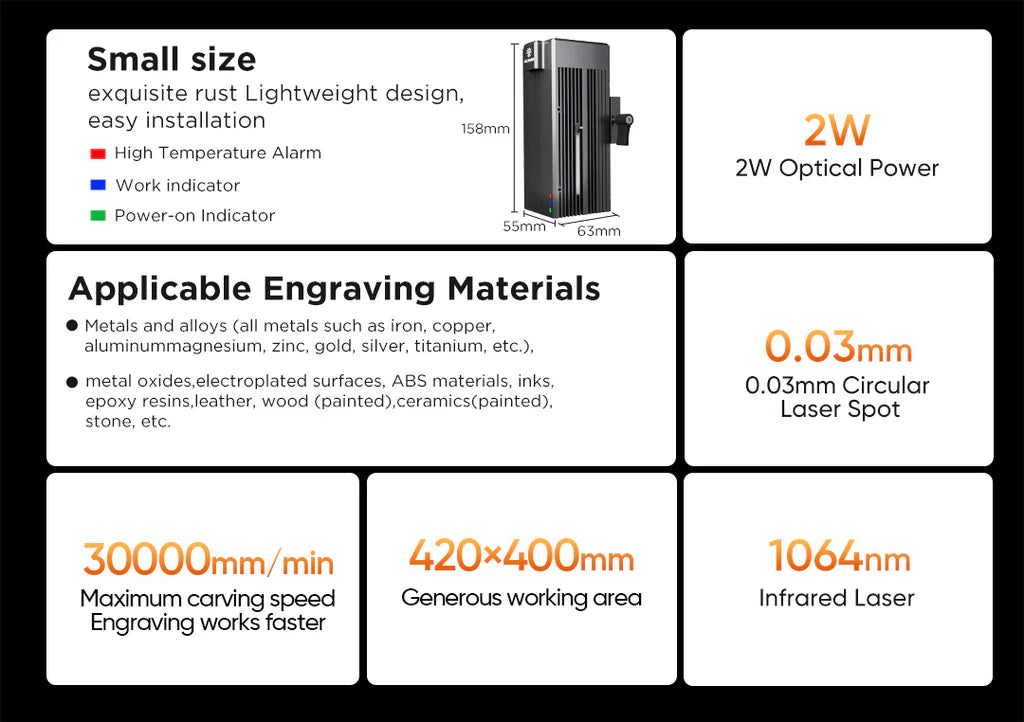

Specifications

Laser Output Power 2000mw
Laser Type 1064nm infrared laser
Machine Power 96W
Laser Wavelength 1064±1nm
Power Supply DC 24V/4A
Focal Length 40mm
Engraving Accuracy 0.01mm
Laser Module Design Life 10000 hours
Maximum Engraving Speed 30,000 mm/min
Working Area Size 420*400mm
Assembly Method Preassembled
Machine Size 650*597*200mm
Machine Weight 6.5kg
Movement structure Industrial guide rail
Certification FCC/CE/RoHS/FDA
Control Software LightBurn/LaserGRBL/ACMER App(Android) / MKS(iOS)
Compatible Accessories 1064 laser module, ACMER P2 Engraving Area Expansion Kit,
Honeycomb Laser Bed , R10 Laser Enclosure Box , ACMER M2 Rotary
Roller,ACMER C4 Air Assist
File Format Supported JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc.
Safety Features Emergency stop button, Gyroscope detection(Tilt 15 degrees to
automatically turn off the laser),Motherboard over-temperature
protection,child safety lock,flame detector.
