Atlas Auto Equipment

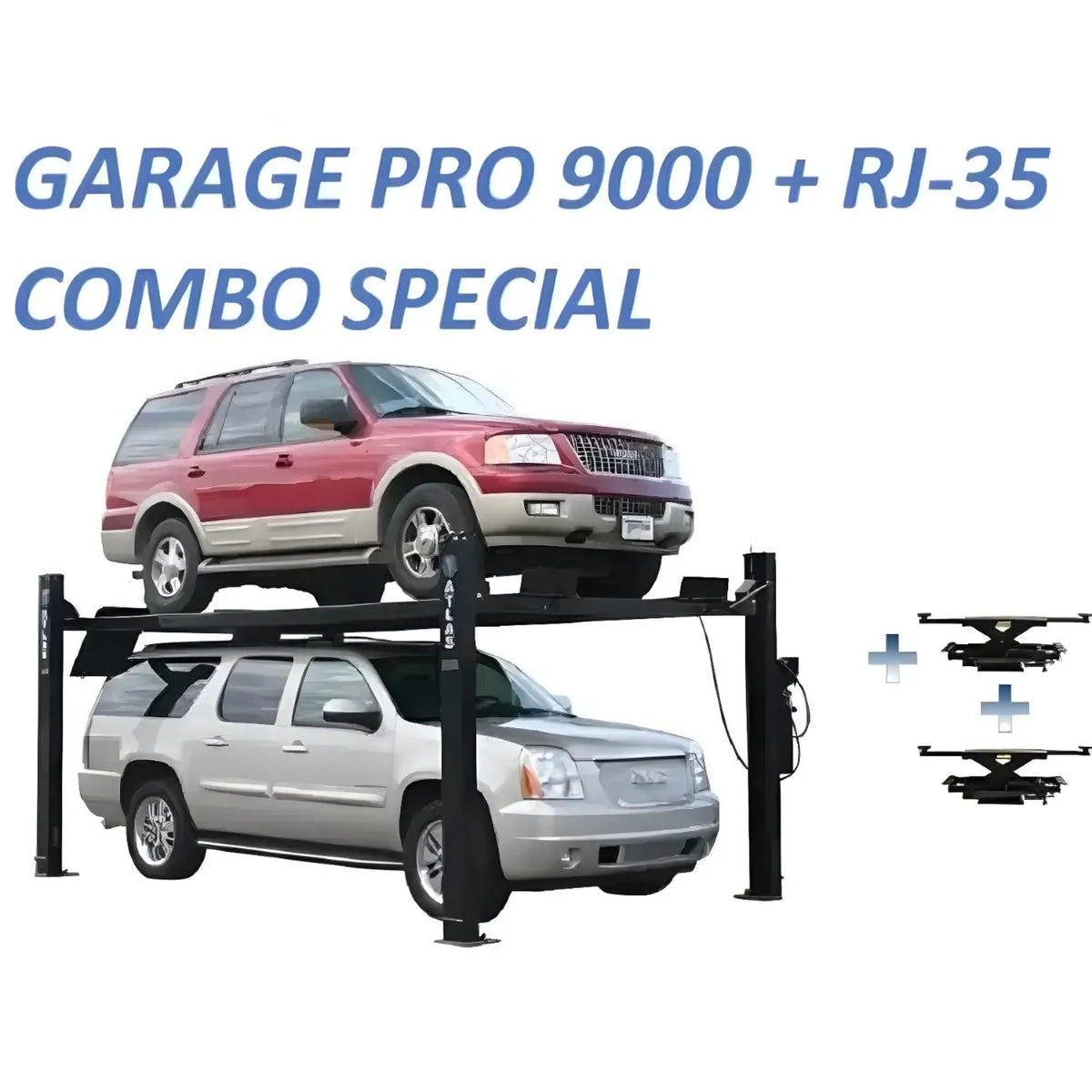

Atlas Automotive Pro9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ35 Rolling Bridge Jacks
- Regular price
- $6,799.00
- Regular price
- $6,799.00
Safety Requirements
Safety Requirements
IMPORTANT INSTALLATION REQUIREMENTS
2 & 4 post vehicle lifts must be installed on a concrete slab with a minimum thickness of 4 inches and 6.5 inches for heavier lifts and a minimum compressive strength of 3,000 PSI. Scissor lifts must be installed on a concrete slab with a minimum thickness of 3.9 inches and a minimum compressive strength of 3,000 PSI.
Installation on inadequate or improperly prepared concrete may result in lift instability, equipment failure, serious injury, or death.
It is the customer’s responsibility to verify that all installation surfaces and site conditions meet the manufacturer’s specifications prior to purchase and installation.
Forge Work Supply assumes no liability for damage, equipment failure, injuries, or losses resulting from improper installation, insufficient concrete specifications, or failure to follow manufacturer installation requirements.
Freight Shipping
Freight Shipping
Please review the following freight shipping information carefully before placing your order.
Shipping Delays & Availability
Seasonal shipping delays may occur. In some cases, orders may take up to 3 weeks for delivery. If you require expedited processing or need to confirm inventory availability prior to ordering, please contact our team for assistance.
Shipping Coverage
Freight shipping is available within the contiguous United States (lower 48 states).
Estimated fulfillment time for freight orders is typically 6–10 business days.
Two-Post, Four-Post & Scissor Lift Deliveries
Customers are required to provide a forklift or suitable unloading equipment at the time of delivery.
Additional Freight Services
The following optional freight services are available for an additional fee:
- Residential Delivery: $80
- Liftgate Service: $80
Please note: Liftgate service is not available for two-post lifts, four-post lifts, and scissor lifts. Contact us before ordering to confirm availability.
Customer Responsibilities
Customers are responsible for unloading freight shipments from the delivery truck.
A forklift, loading dock, or appropriate unloading equipment is strongly recommended for all heavy equipment deliveries.
Customers are responsible for any additional charges incurred due to:
- Failed delivery attempts
- Inability to unload freight at the delivery location
- Incorrect delivery information provided at checkout
Shipment Inspection & Damage Claims
All shipments must be carefully inspected before signing the Bill of Lading or delivery receipt.
- Any visible damage, shortages, or missing items must be noted on the delivery receipt at the time of delivery.
- Do not sign for damaged or incomplete shipments without documenting the issue with the carrier.
- Concealed damage or shortages must be reported within 48 hours of delivery.
Failure to document freight damage at the time of delivery may limit the ability to file a freight claim.
If no damage or shortages are noted upon delivery, the shipment will be considered received in acceptable condition.
Contact Information
For freight assistance, delivery questions, or damage claims, please contact our Customer Support team:
Phone: (866) 671-5917
Email: support@forgeworksupply.com
What is your Return and Refund Policy?
What is your Return and Refund Policy?
Returns and refunds for this item are subject to Forge Work Supply’s standard Return and Refund Policy.
Customers may request a return within 30 days of delivery, provided the item is unused, undamaged, and in its original packaging. Proof of purchase is required.
Change-of-mind returns may be subject to a restocking fee. Defective, damaged, incorrect, or lost items are eligible for a replacement or full refund, as applicable.
Refunds are issued to the original payment method after the returned item is received and inspected.
Atlas Auto Equipment
Atlas Automotive Pro9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ35 Rolling Bridge Jacks
- Regular price
- $6,799.00
Description
Heavy-Duty 9,000 lb Capacity. Extra-Wide Runways. Includes Two 3,500 lb Sliding Bridge Jacks for Complete Vehicle Storage and Service.

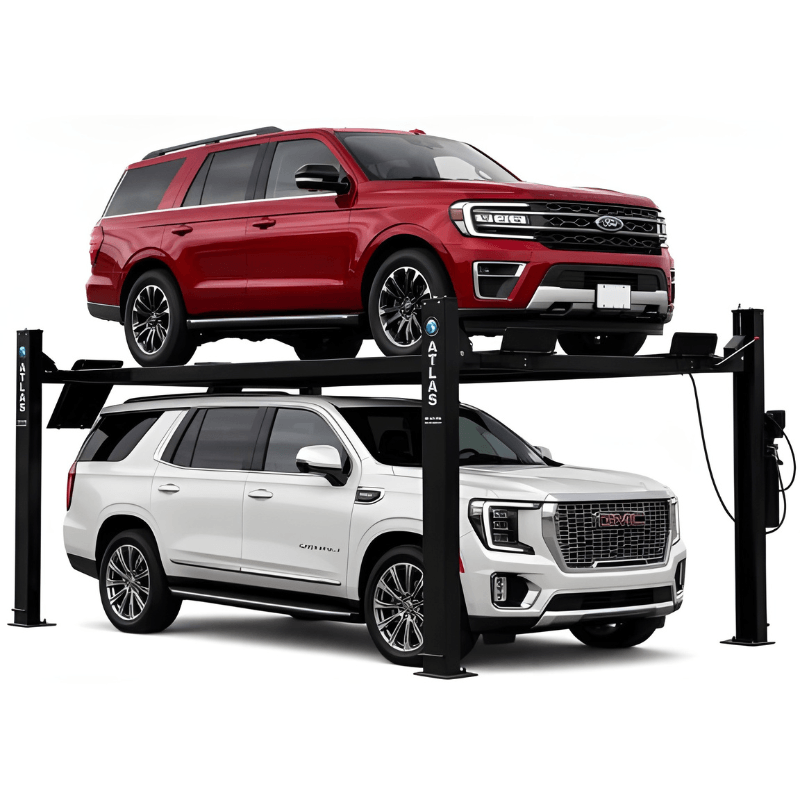

The Atlas Automotive PRO9000 9,000 lb 4-Post Lift + (2) RJ35 Sliding Bridge Jack Combo is designed for automotive shops, home garages, and vehicle enthusiasts who need substantial lifting capacity, extended runway length, and additional working space for larger vehicles. With a 9,000 lb lifting capacity, extra-wide configuration, and extended runways, the PRO9000 accommodates a broad range of vehicles, including passenger cars, SUVs, full-size pickups, and many diesel dually trucks.
Built around a heavy-duty four-post design, the PRO9000 features a free-standing configuration and an included caster kit with polyurethane wheels to support relocation when needed. Its single-point lock release, lock ladder system, and double-lock safety system provide convenient operation and additional security when raising and lowering vehicles. The included steel approach ramps, steel jack tray, four plastic drip trays, and two rubber wheel chocks add versatility for everyday vehicle storage and service applications.

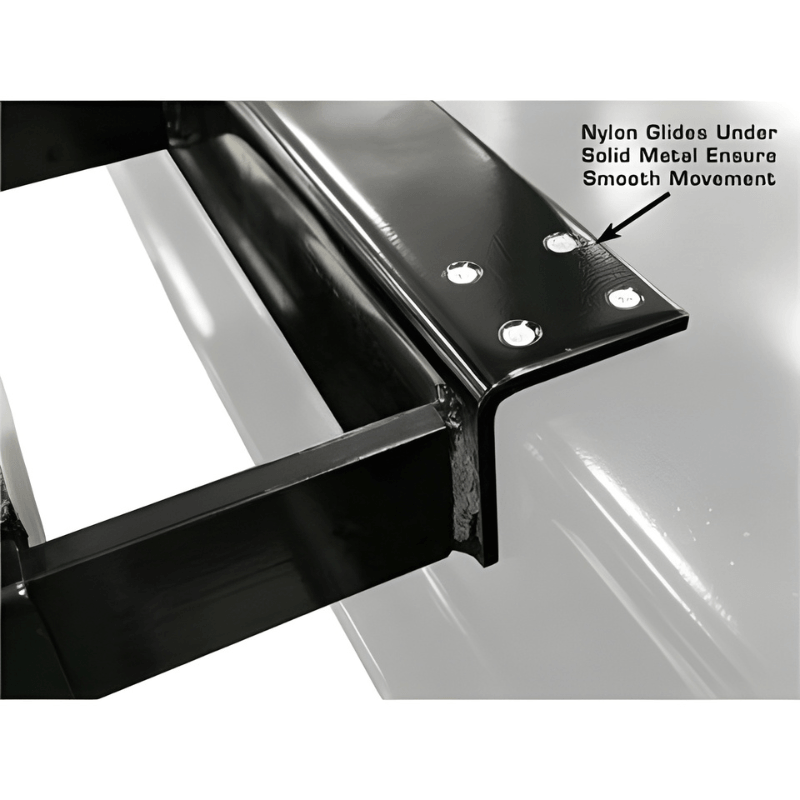

This combo includes two Atlas RJ35 sliding bridge jacks, each rated for 3,500 lbs, allowing you to lift a vehicle off the runways for wheel-free access during tire changes, brake service, suspension work, and other maintenance tasks. Each jack features a manual hand-pump lifting system, adjustable lift arms, a compact low-profile design, and multiple safety lock positions. The scissor lifting mechanism supports level lifting, while the included four-piece truck adapter set helps accommodate a wider range of lifting points.
With a maximum lifting height of 85 inches to the top of the runways and 80 1/4 inches of clearance underneath, the PRO9000 provides substantial vertical space for vehicle storage and maintenance. Its generous 199 1/2-inch runways, 110 1/2-inch clearance between columns, and 97 1/4-inch drive-through width measured from outside tire to outside tire help accommodate many larger vehicles. The 187-inch maximum wheelbase further expands compatibility with longer vehicles.
Whether you're maximizing garage storage, servicing full-size trucks, or equipping a professional automotive shop, the Atlas PRO9000 and dual RJ35 sliding bridge jack combo combines elevated vehicle storage with the convenience of two independently operated rolling jacks in one versatile lifting package.
Perfect for: Home garages • Full-size pickups • Diesel dually trucks • SUVs • Vehicle storage • Tire and brake service • Suspension work • Automotive repair shops
Benefits of the Atlas Automotive PRO9000 + (2) RJ35 Combo
The 9,000 lb capacity, extended runways, and extra-wide configuration accommodate a broad range of vehicles, including full-size pickups, SUVs, and many diesel dually trucks. Always verify vehicle weight, wheelbase, track width, and lifting-point compatibility before use.
The four-post lift provides elevated vehicle storage, while the two included RJ35 bridge jacks allow you to raise a vehicle's wheels off the runways for additional maintenance access. The two-jack configuration provides greater flexibility when positioning lifting equipment for service work.

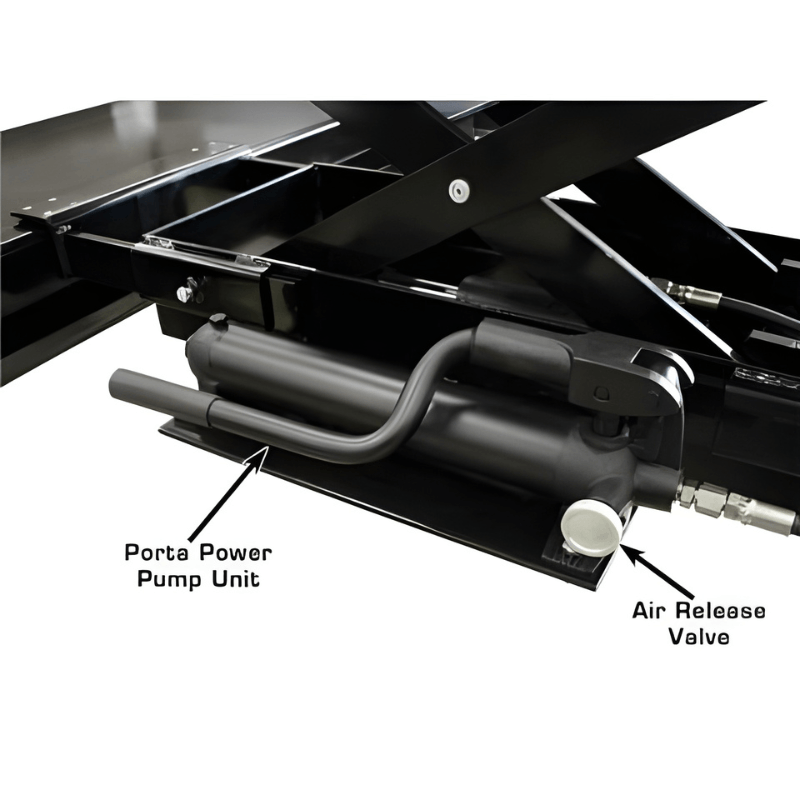

Each RJ35 jack uses a manual hand pump and scissor lifting mechanism to raise a vehicle from the runways. This allows access to tires, brakes, and other wheel-end components without relying on the runways alone.
With 199 1/2-inch runways, a 187-inch maximum wheelbase, and generous clearance between the columns, the PRO9000 provides the space needed to accommodate many longer and wider vehicles.
The RJ35 jacks feature adjustable widths and lift arms to accommodate a variety of vehicle lifting points and compatible four-post lift configurations. Multiple safety lock positions help support secure operation when used according to the manufacturer's instructions.
The PRO9000's single-point lock release, lock ladder design, and double-lock safety system simplify operation. The RJ35 jacks add their own safety lock positions and scissor lifting mechanisms for maintenance applications.
The free-standing design and included caster kit support relocation when needed, making the PRO9000 a versatile option for changing shop layouts. Installation, movement, and operation must follow the manufacturer's requirements, including applicable floor and concrete specifications.
Features
Lift Capacity & Design
- 9,000 lb lifting capacity
- Heavy-duty, free-standing four-post design
- Extra-wide and extended-runway configuration
- Designed for many full-size and heavy-duty vehicles
Lifting Height & Access
- 85-inch lifting height to the top of the runways
- 80 1/4-inch clearance underneath the runways
- 199 1/2-inch runway length
- 31-inch steel approach ramps
- 187-inch maximum wheelbase

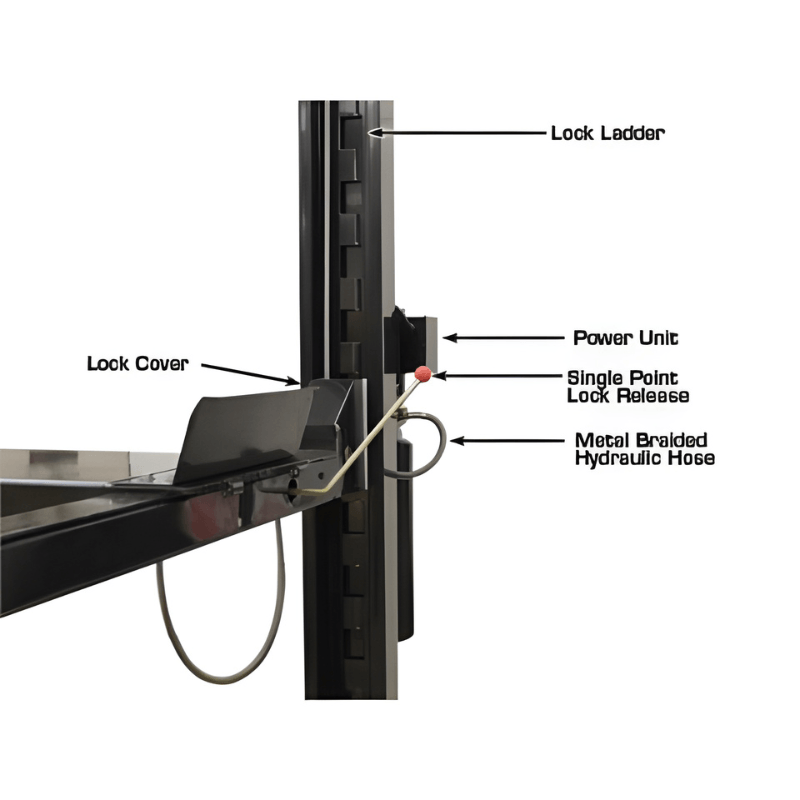

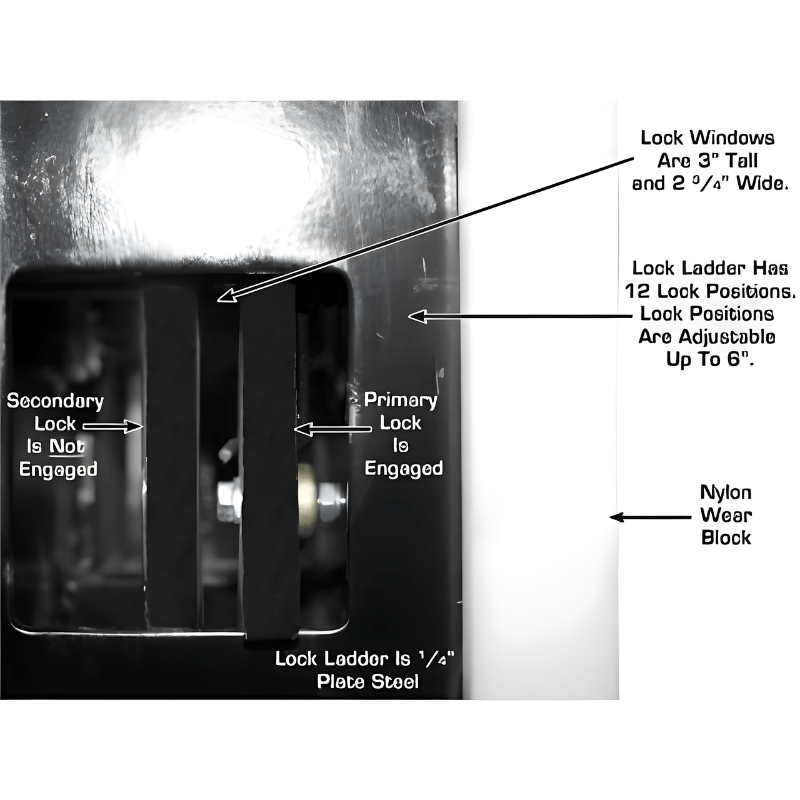

Lock System & Safety
- Single-point lock release
- Lock ladder design

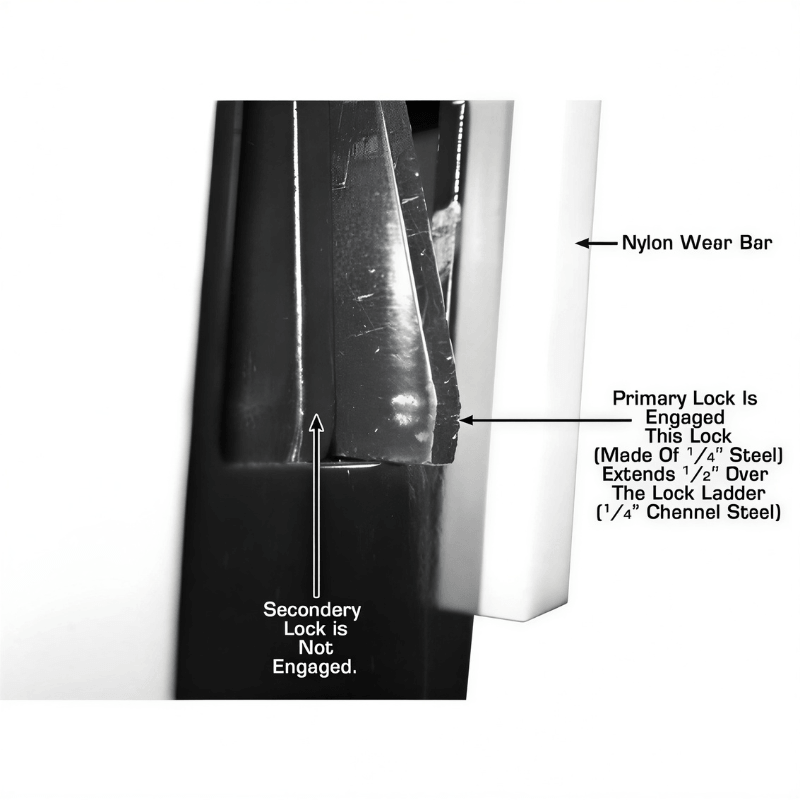

- Double-lock safety system
- RJ35 jacks include multiple safety lock positions

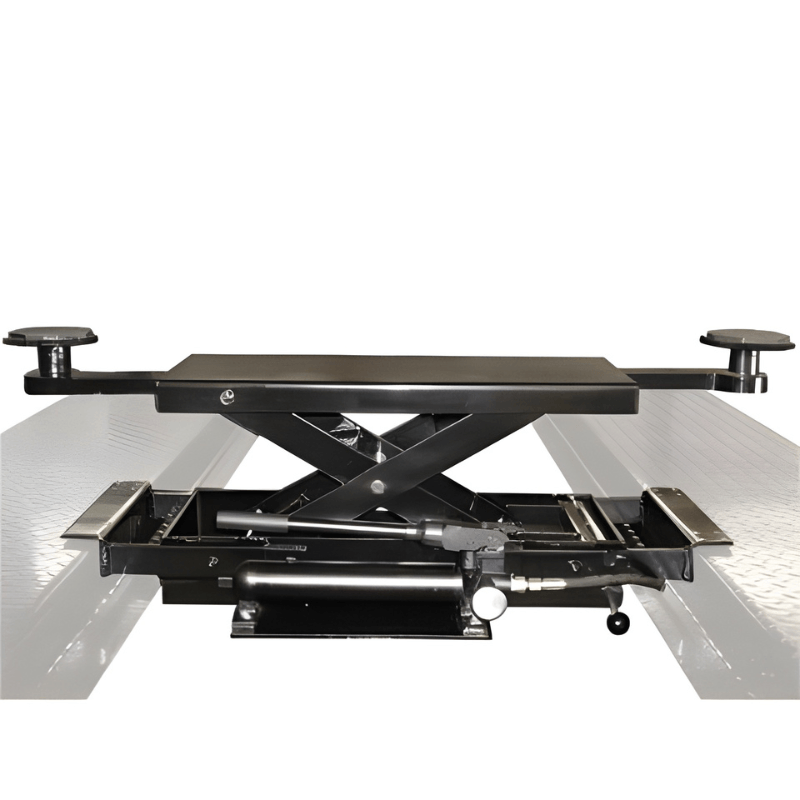

Dual RJ35 Sliding Bridge Jacks
- Two jacks included
- 3,500 lb capacity per jack
- Manual hand-pump operation
- Adjustable width from 29 1/2 to 64 3/4 inches
- Adjustable lift arms for varied lifting points
- Scissor mechanism supports level lifting

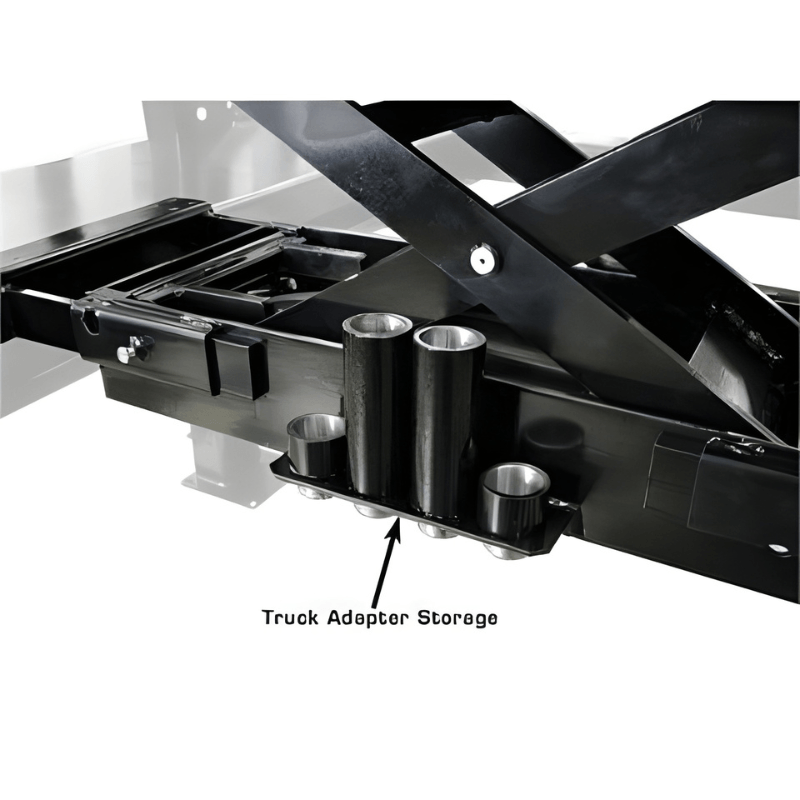

- Four-piece truck adapter set included with each jack
Mobility & Accessories
- Caster kit with polyurethane wheels
- Steel approach ramps
- Steel jack tray
- Four plastic drip trays

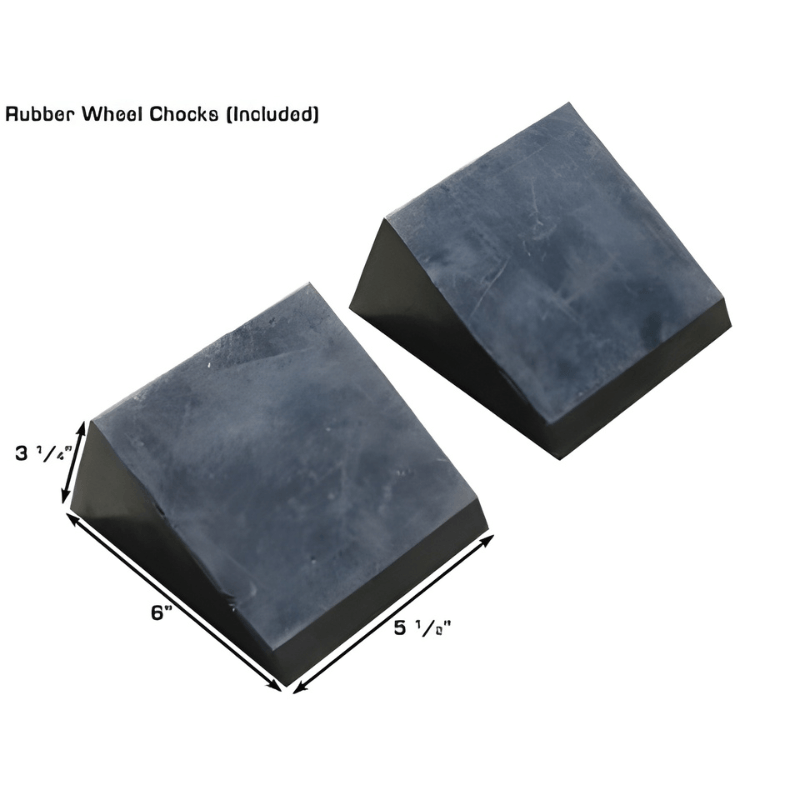

- Two rubber wheel chocks
- Truck adapters for RJ35 jacks
Power & Installation
- 110V electrical supply for the PRO9000
- 30-amp breaker required
- Minimum 4-inch-thick, 3,000 PSI concrete specified
- RJ35 jacks operate manually with a hand pump
- No compressed-air connection specified for the RJ35 jacks
Specifications
General
- Manufacturer: Atlas Automotive Equipment
- Model: PRO9000 + (2) RJ35
- Product Type: Four-Post Vehicle Lift with Two Sliding Bridge Jacks
- Lift Capacity: 9,000 lbs
- Jack Capacity: 3,500 lbs each
- Configuration: Four-post, free-standing design
Lifting Performance

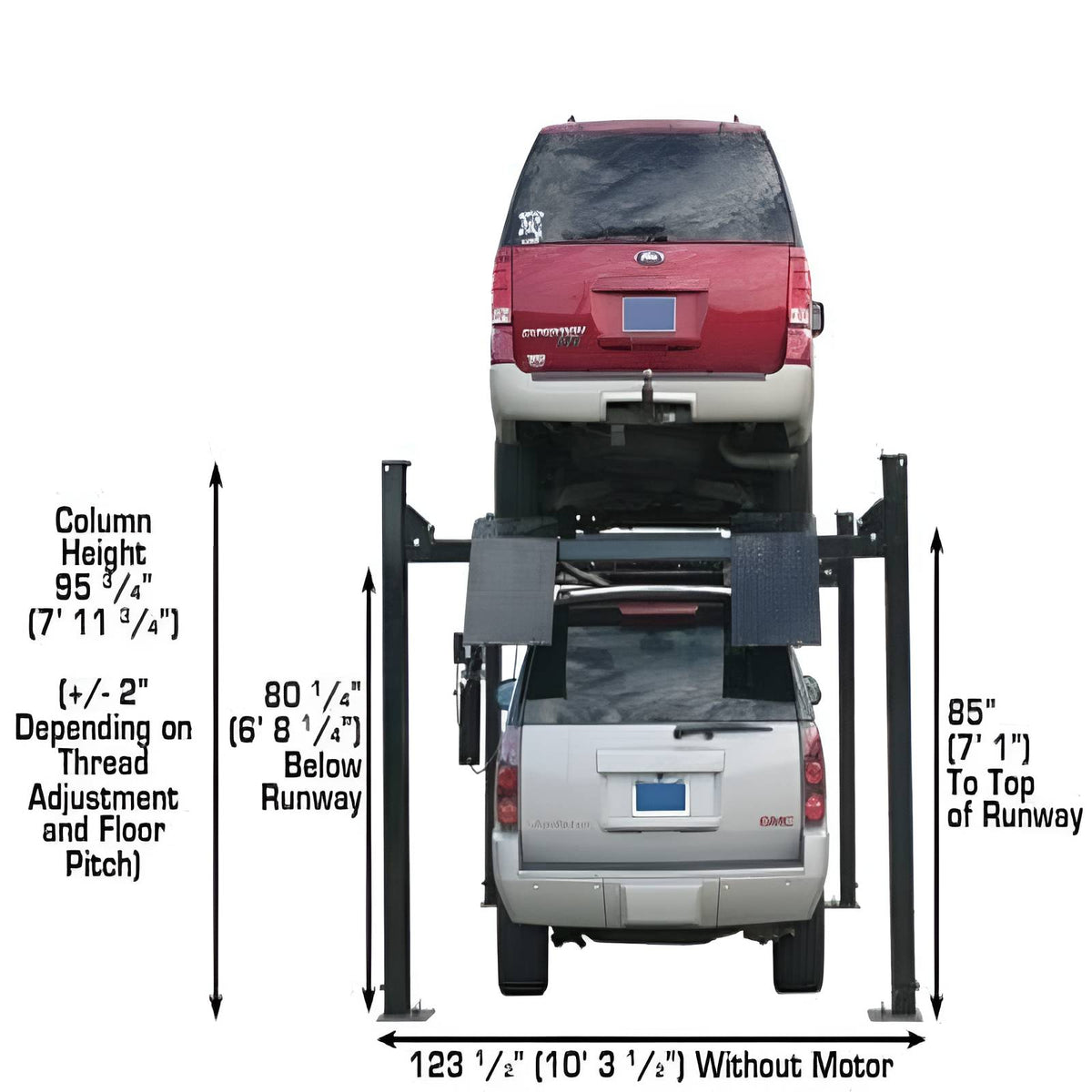

- Lifting Height to Runway Top: 85 in (7 ft 1 in)
- Under-Runway Clearance: 80 1/4 in (6 ft 8 1/4 in)
- Maximum Wheelbase: 187 in (15 ft 7 in)
- Lock System: Lock ladder with single-point release
- Safety System: Double-lock design
Structure & Dimensions

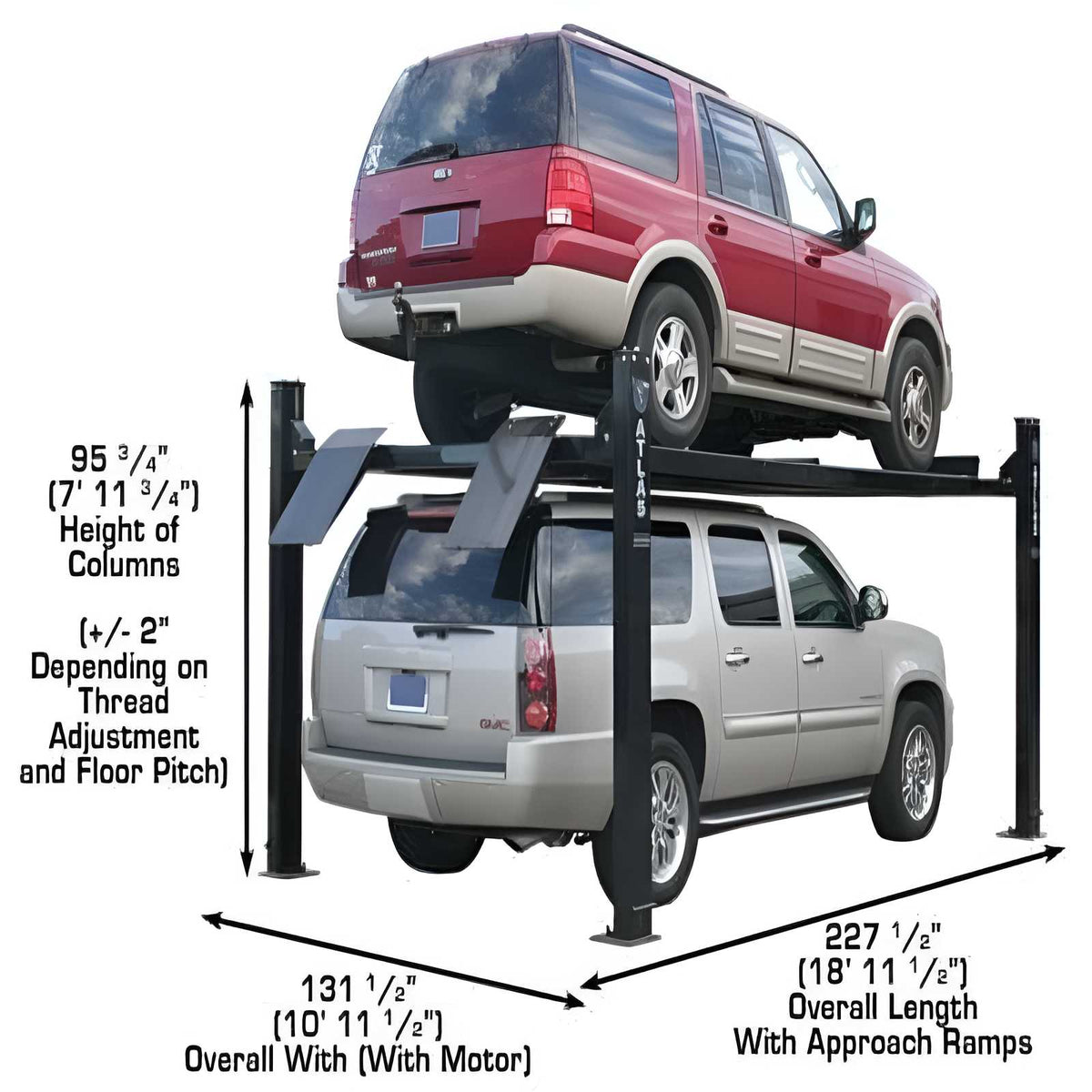

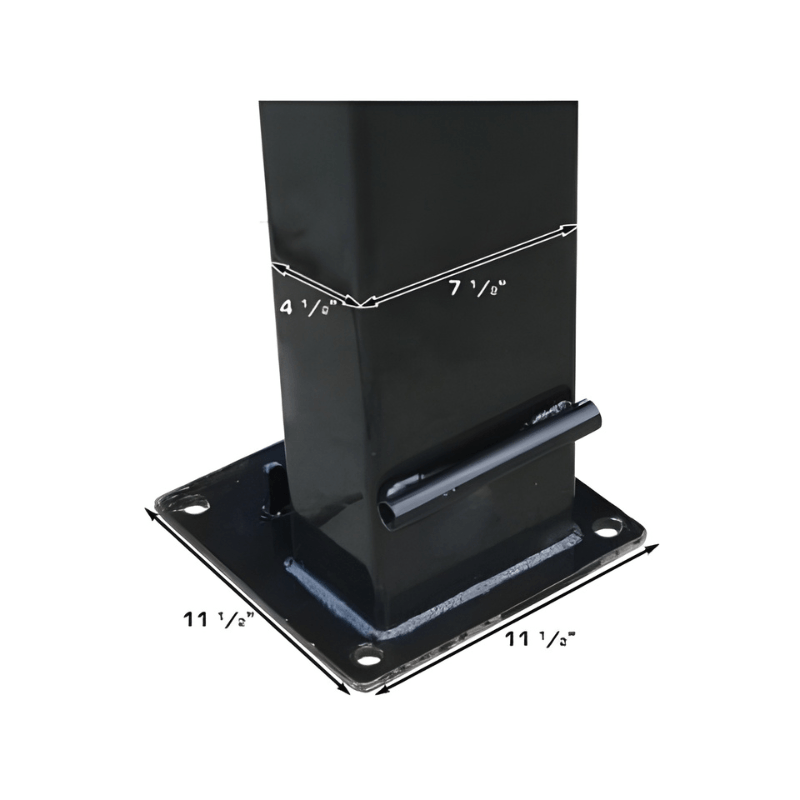

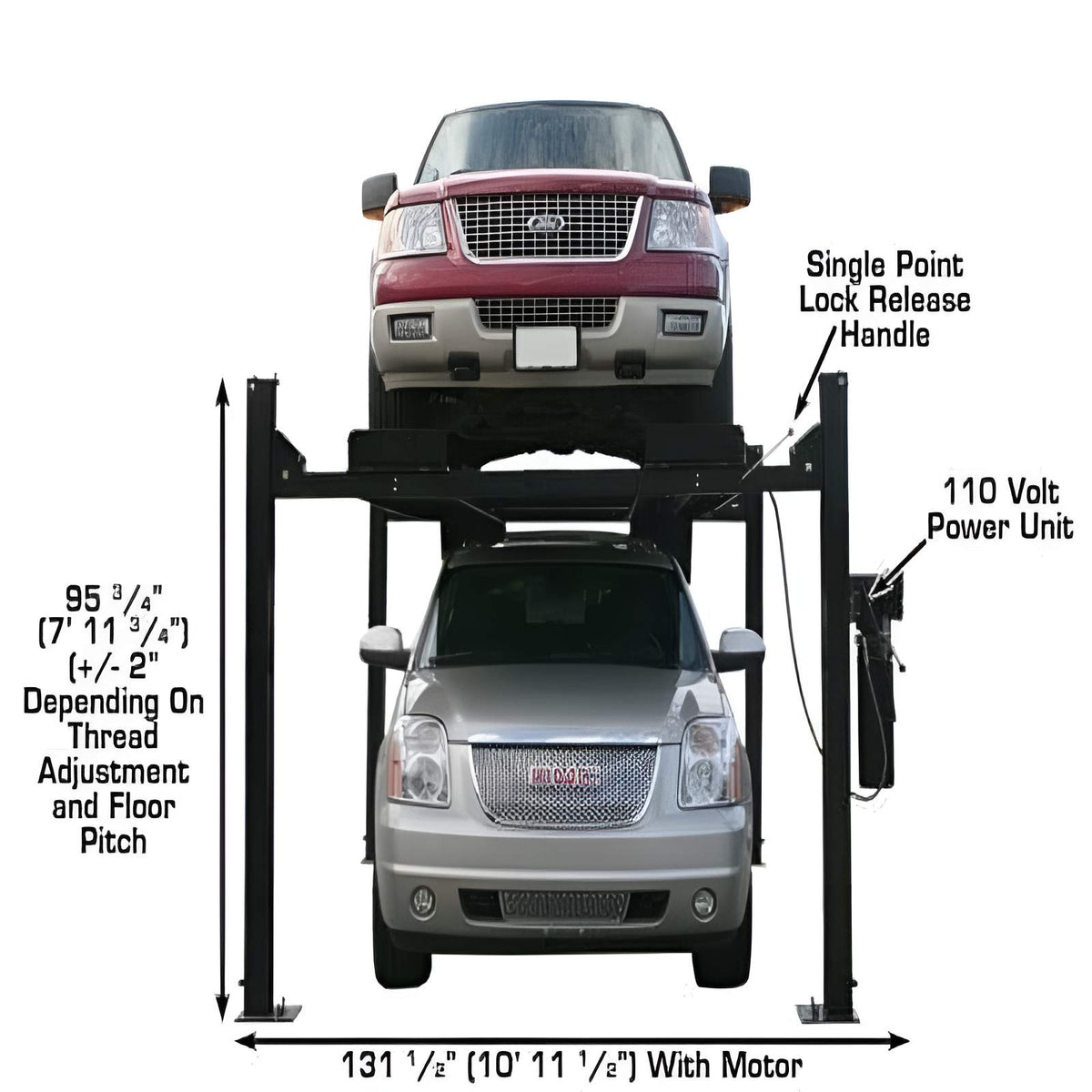

- Column Height: 95 3/4 in
- Overall Width Without Motor: 123 1/2 in
- Overall Width With Motor: 131 1/2 in
- Overall Length with Approach Ramp: 227 1/2 in (18 ft 11 1/2 in)
- Runway Length: 199 1/2 in
- Runway Width with Rails: 21 1/4 in
- Driving Surface Width: 20 in
- Runway Thickness: 4 3/4 in

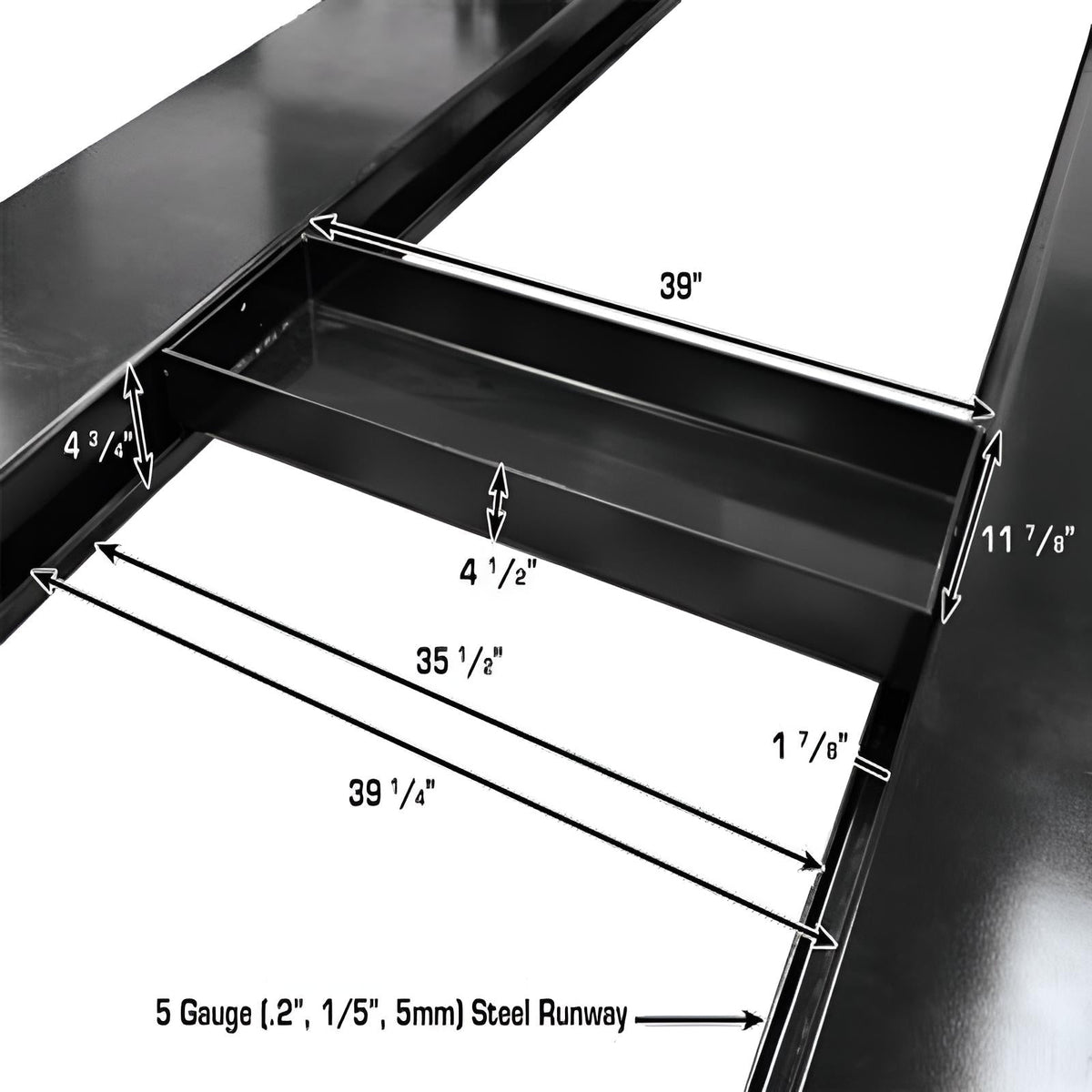

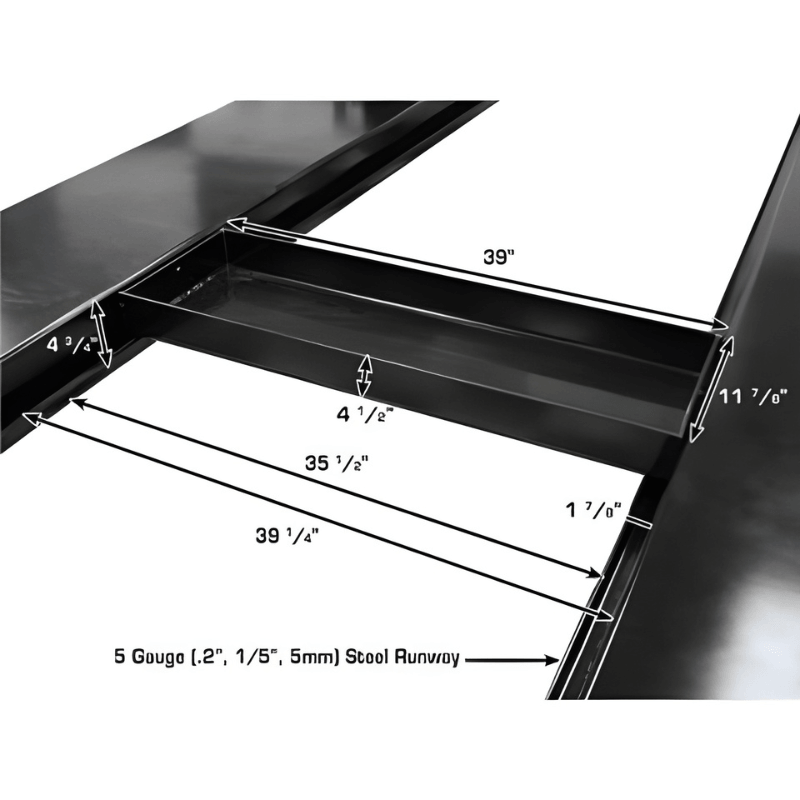

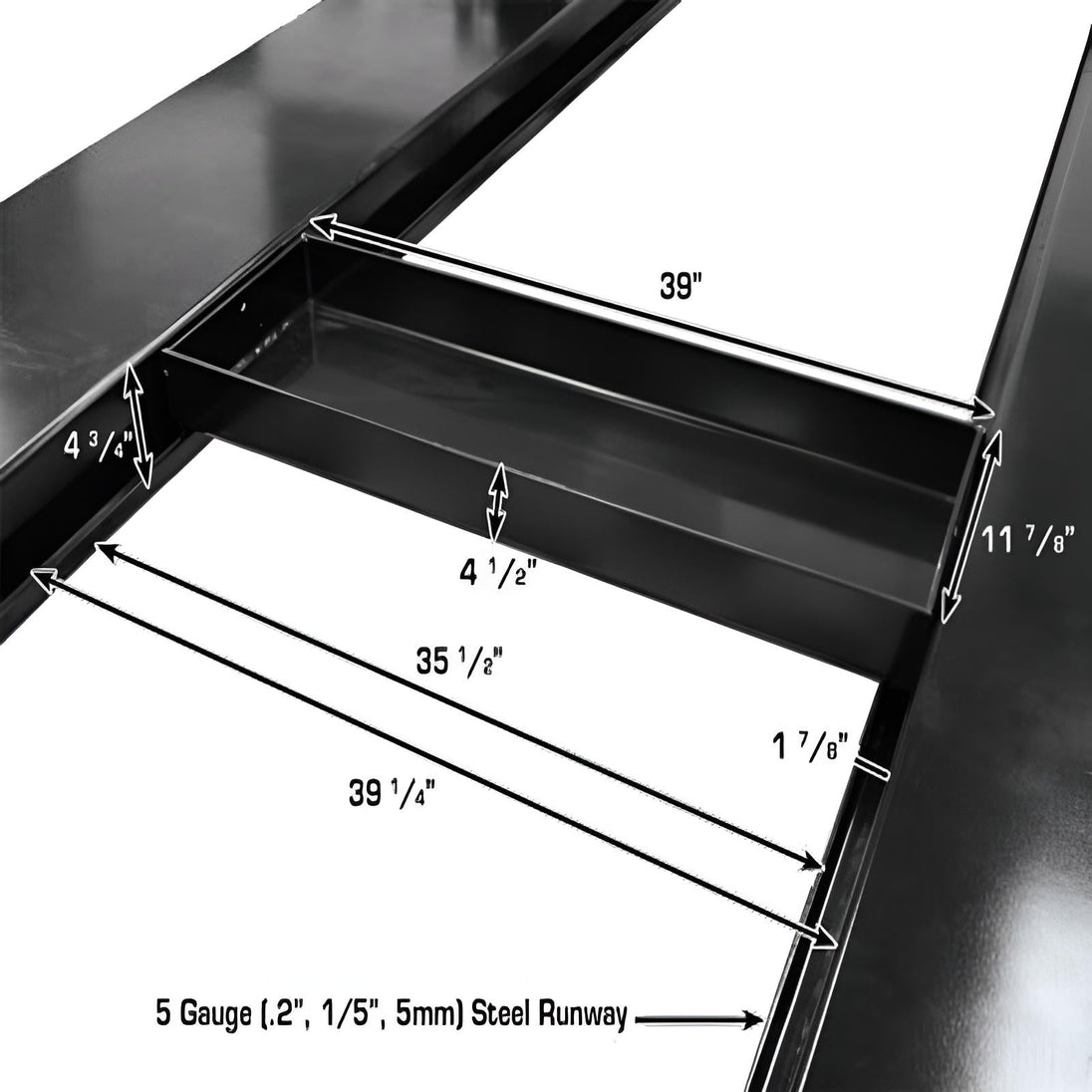

- Width Between Runways: 39 3/4 in
- Width Between Runway Rails: 35 1/2 in
- Outside Runway to Outside Runway: 79 in
- Clearance Between Columns: 110 1/2 in
- Length Between Columns: 184 1/2 in
- Drive-Through Width, Outside Tire to Outside Tire: 97 1/4 in
- Approach Ramp Length: 31 in
Power & Installation
- Electrical Requirement: 110V
- Breaker Requirement: 30 amp
- Concrete Thickness: Minimum 4 in
- Concrete Strength: 3,000 PSI minimum

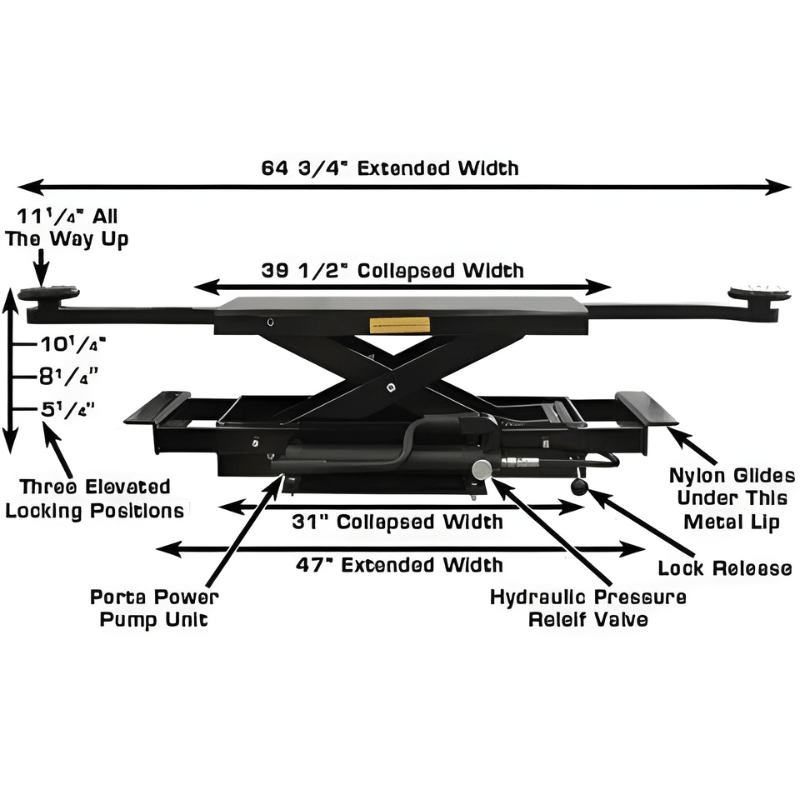

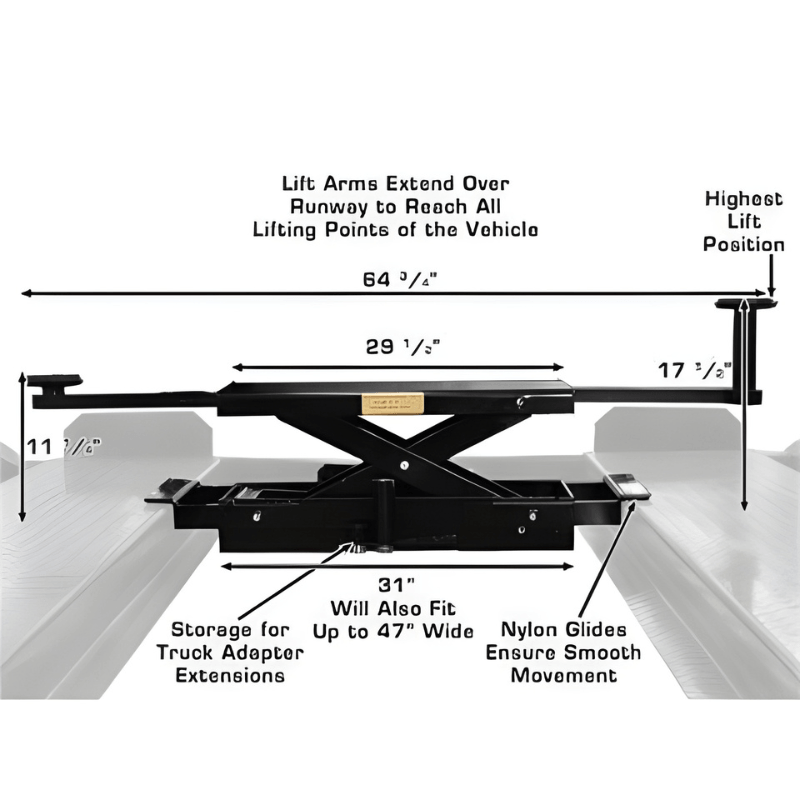

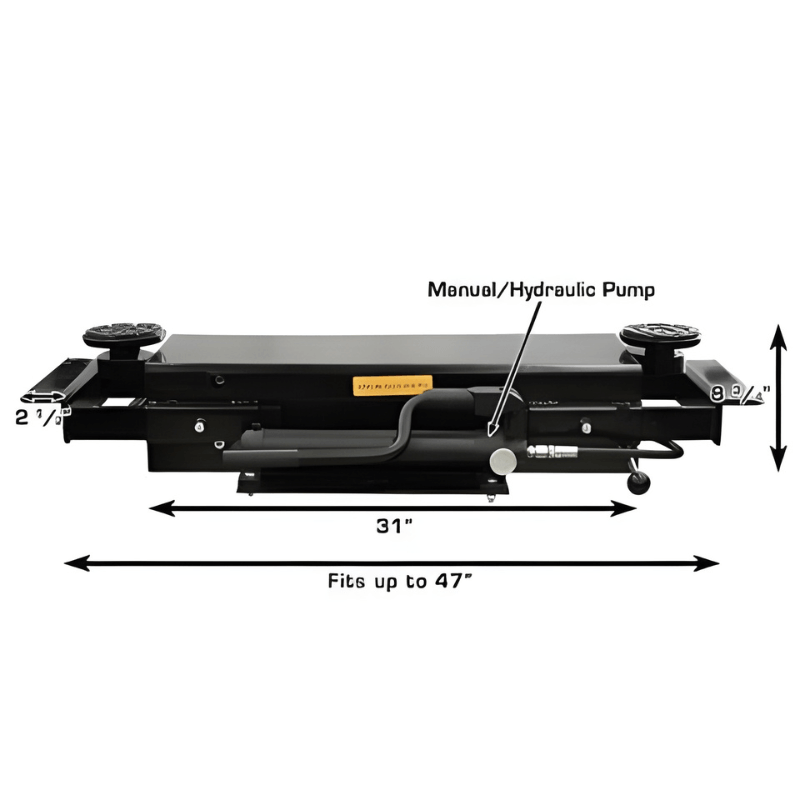

RJ35 Sliding Bridge Jacks (Each)
- Model: RJ35 / PROJACK35
- Maximum Capacity: 3,500 lbs
- Minimum Width: 29 1/2 in
- Maximum Width: 64 3/4 in
- Minimum Height with Pad Above Runway: 3 1/2 in (may vary by lift)
- Lift Pad Height Above Arm: 1 3/8 in

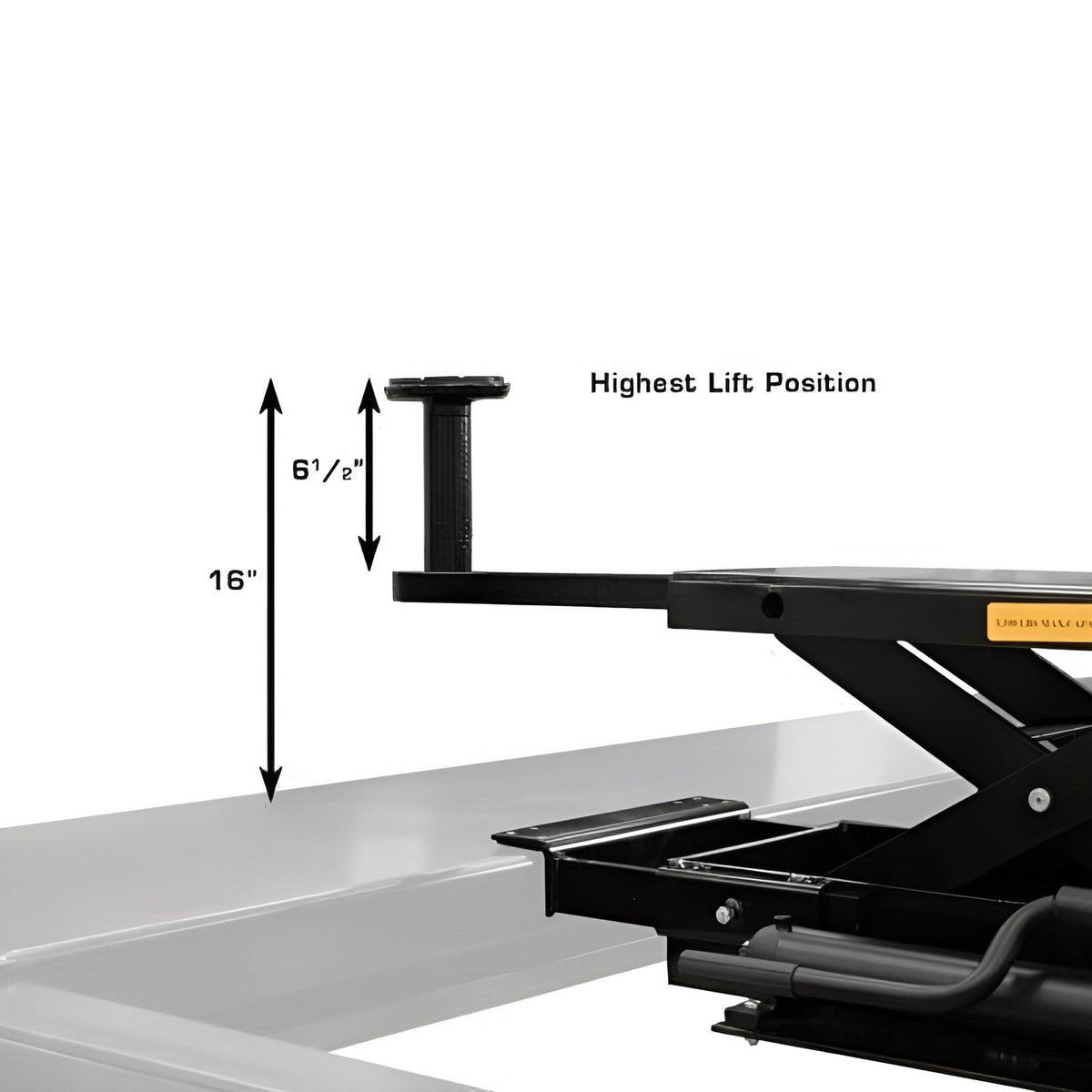

- Maximum Raised Height Without Adapters: 11 in
- Maximum Raised Height with Adapters: 17 1/4 in

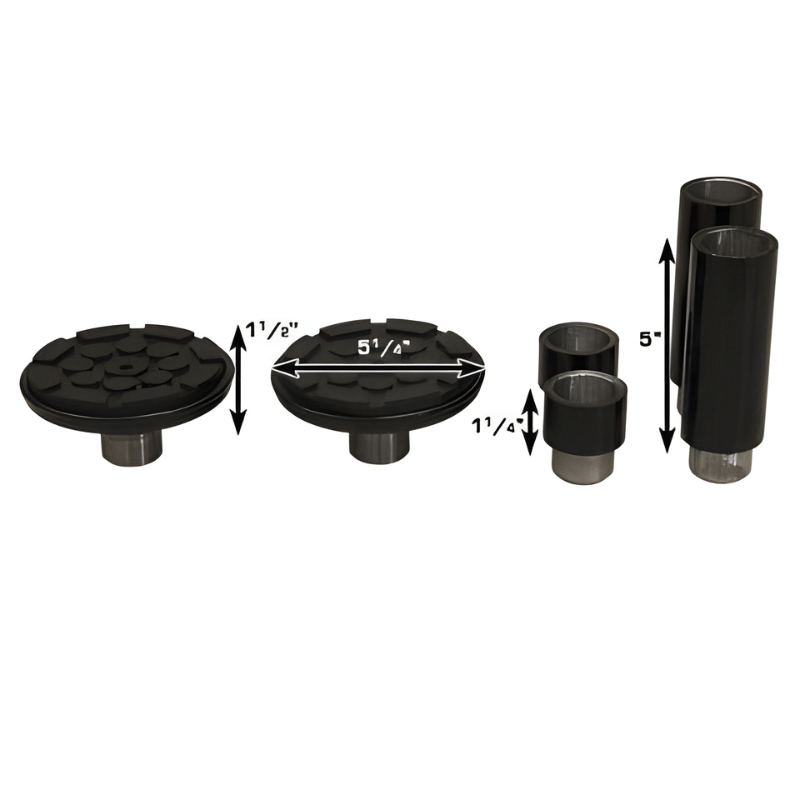

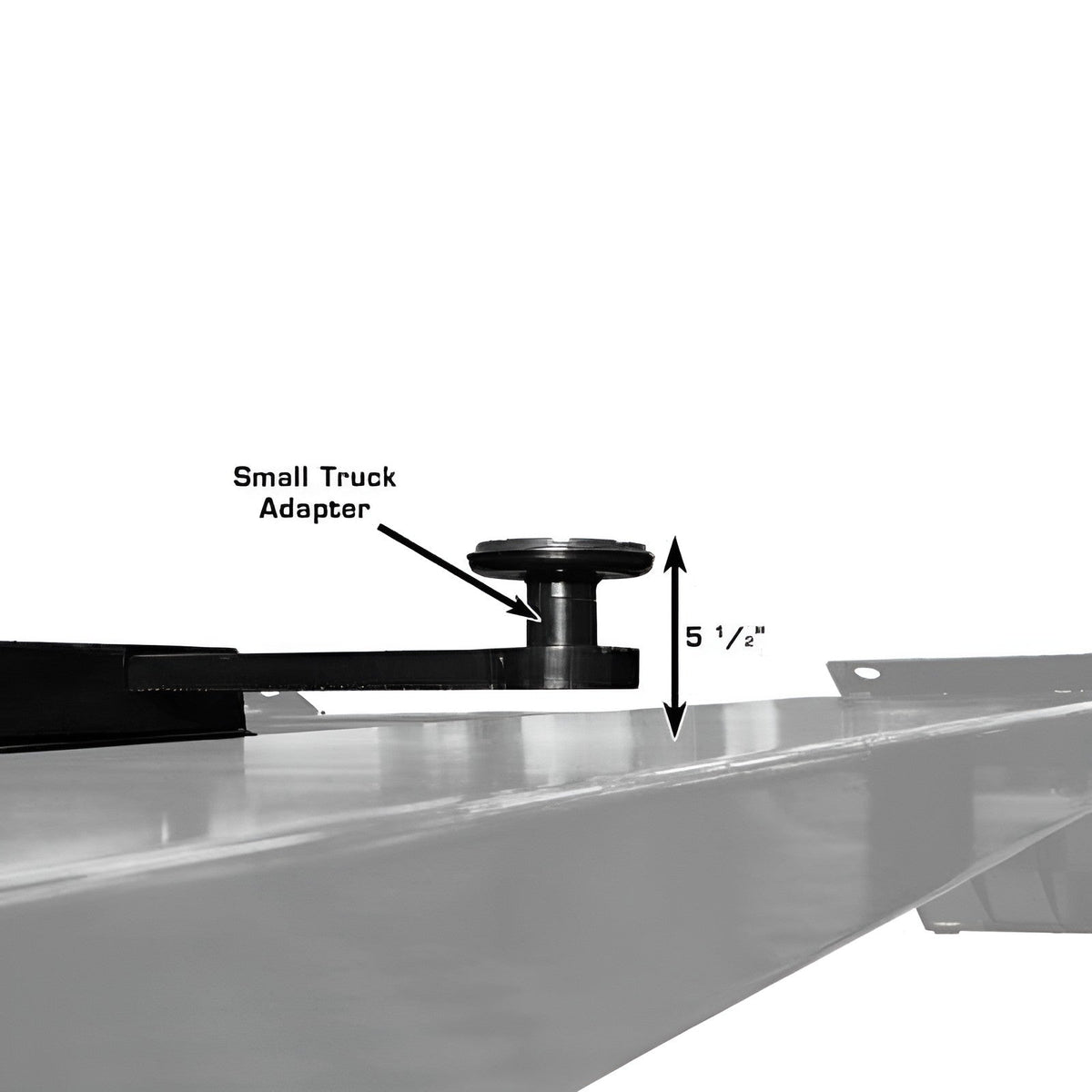

- Adapter Heights: Two each, 1.5 in and 5 in
- Arm Hole / Adapter Peg Size: 1.5 in
- Operation: Manual hand pump
- Shipping Weight: 350 lbs each
Shipping & Warranty

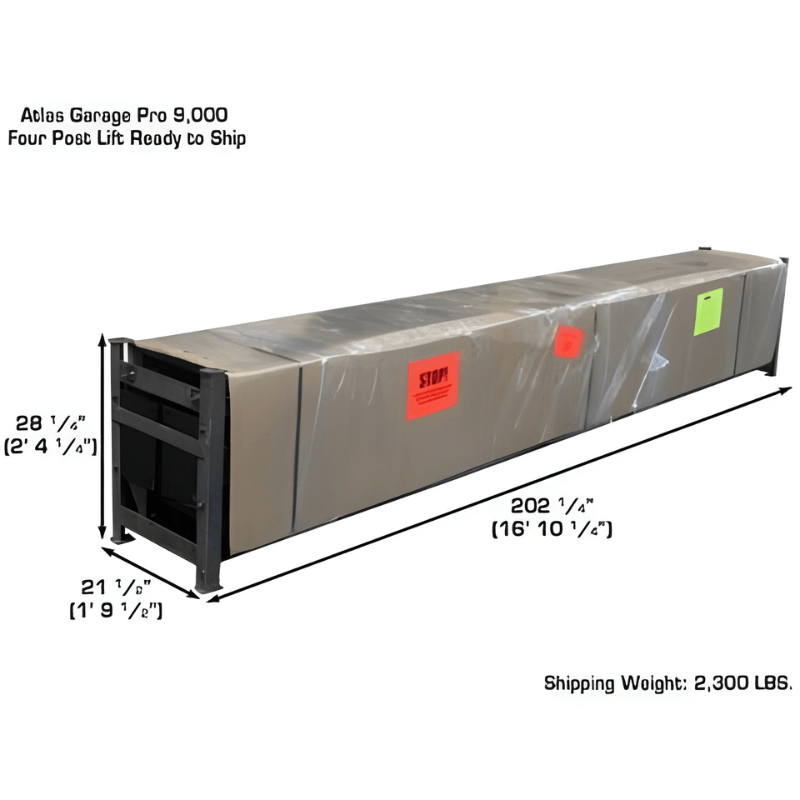

- PRO9000 Shipping Dimensions: 202 1/4 x 21 1/2 x 18 1/4 in (as supplied)
- PRO9000 Shipping Weight: 2,300 lbs

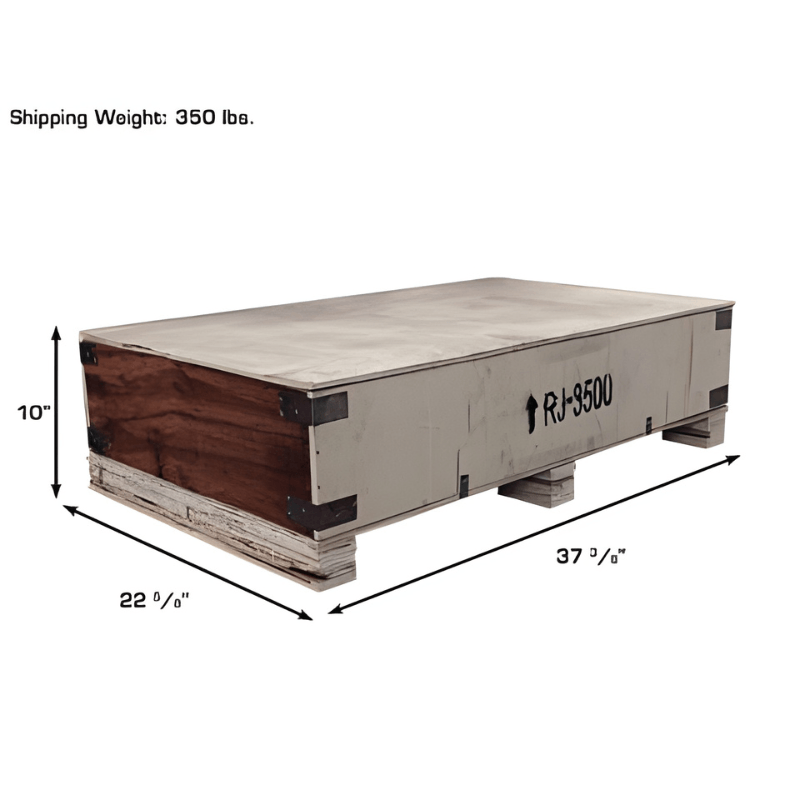

- RJ35 Shipping Dimensions: 22 5/8 x 37 3/8 x 10 in per jack
- RJ35 Shipping Weight: 350 lbs per jack
- PRO9000 Warranty: 2-year structural and 1-year hydraulic, parts only
- RJ35 Warranty: 1-year parts-only warranty
- Freight Delivery: Oversized shipment; freight-terminal delivery is unavailable
Downloads
- Atlas Automotive PRO9000 Product Manual (PDF)
- Atlas PRO9000 Lift Diagram
- Atlas 4 Post Lift Bleeding Manual (PDF)
Important: The PRO9000 requires a suitable concrete surface and the specified electrical supply. The included RJ35 sliding bridge jacks are manually operated and must be used only with compatible lifts and approved lifting points. Verify vehicle weight, dimensions, wheelbase, lifting points, and adapter compatibility before use. Follow all manufacturer installation, operating, and safety instructions.
-
Vendor: KATOOL
Katool 11,000 lb 4 Post Vehicle Lift - KT-4H110 - Heavy Duty Shop Lift
3 reviewsRegular price $3,299.00 -
Sold out
Vendor: Atlas Auto Equipment
Atlas Automotive PRO9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ6BK Rolling Bridge Jacks
No reviewsRegular price $8,399.00 -
Vendor: Atlas Auto Equipment
Atlas Garage Pro-9000 - 9000 lb 4 Post Vehicle Lift
No reviewsRegular price $4,899.00 -
Sold out
Vendor: Atlas Auto Equipment
Atlas Automotive Pro9000 - 9000 lb - 4 Post Vehicle Lift with (2) RJ45A Rolling Bridge Jacks
No reviewsRegular price $7,999.00
| 4-POST LIFT COMPARISON |
![]() KT-4H850
4-Post Storage Lift
8,500 LB
|
![]() KT-4H950
4-Post Storage Lift
9,500 LB
|
![]() KT-4H110
Heavy-Duty 4-Post Lift
11,000 LB
|
![]() KT-4H120X
Alignment Lift
12,000 LB
|
![]() KT-4H150
Alignment Lift
15,000 LB
|
|---|---|---|---|---|---|
| Capacity & Vehicle Support | |||||
| Lifting Capacity | 8,500 lbs | 9,500 lbs | 11,000 lbs | 12,000 lbs | 15,000 lbs |
| Best Vehicle Fit | Cars, SUVs, Light Trucks | Cars, SUVs, Performance Vehicles | Trucks & Long-Wheelbase Vehicles | Fleet Vehicles & Commercial Trucks | Duallys, Fleet Vans & Heavy Trucks |
| Lift Type | Storage / Parking Lift | Storage / Parking Lift | Heavy-Duty Service Lift | Alignment Lift | Heavy-Duty Alignment Lift |
| Lifting Performance | |||||
| Max Lift Height | 70.87" | 81" | 84.25" | 86.9" | ~75–76" |
| Underneath Clearance | — | 76.5" | 78.7" | 80" | Approx. 67" |
| Lifting Speed | 75 sec up / 40 sec down | 90 sec up / 40 sec down | 83 sec up / 40 sec down | ≤ 83 sec up / ≥ 40 sec down | ~60–95 sec up / ~55 sec down |
| Lock Positions | 12 Positions | Multiple Locks | 14 Positions | Mechanical Locks | 12 Positions |
| Structure & Dimensions | |||||
| Post Height | 83.66" | 97" | 94.88" | 94.88" | ~91.8–92" |
| Overall Width | 107.95" | 112.7" | 126" | 135.2" | ~136–138.8" |
| Overall Length (With Ramps) | 198.43" | 214.96" | 229.73" | 258" | ~245.31" |
| Runway Length | 172" | 173" | 181.9" | 205" | Heavy-Duty Diamond Plate |
| Width Between Columns | 94.72" | 99.4" | 112.81" | 112.81" | 118.11" |
| Power & Electrical | |||||
| Motor Configuration | 110V Standard / 220V Optional | 110V or 220V / 3HP | 110V or 220V / 3HP | 220V / 1PH | 220V / 1PH (110V Optional) |
| Breaker Requirement | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit | 30 Amp Dedicated Circuit |
| Concrete Requirement | Standard Garage Slab | 4" @ 3,000 PSI | Standard Shop Concrete | 5.9" @ 3,000 PSI | 5.9" @ 3,000 PSI |
| Safety & System Design | |||||
| Safety Certification | CE Certified | Mechanical Lock System | CE Certified | Dual Lock + Limit Switch | CE Certified |
| Lock Release | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual | Single-Point Manual |
| Synchronization | Steel Equalization Cable | Cable & Pulley System | Hydraulic + Cable System | Quad Cable & Pulley System | Steel Cable & Pulley System |
| Included Equipment & Features | |||||
| Rolling Jack Included | No | Optional | Optional | RJ70 7,000 lb Included | 6,000 lb Included |
| Alignment Ready | No | No | No | Yes | Yes |
| Included Accessories | Caster Kit, Drip Trays, Jack Tray | Casters, Aluminum Ramps, Jack Tray | Drip Trays, Jack Tray, Ramps | RJ70 Rolling Jack Included | Rolling Jack, Jack Tray, Drip Trays |
| Runway Surface | Diamond-Plate Non-Skid | Diamond-Plate Non-Skid | Non-Skid Steel | Alignment Platform | Diamond-Plate Non-Skid |
| Best For... |
Low Ceiling Garages Residential users needing an affordable storage lift with mobility. |
Vehicle Storage Stacked parking, collector cars, and light-duty maintenance work. |
Heavy-Duty Home Shops Long-wheelbase trucks, SUVs, and general repair service applications. |
Alignment & Fleet Work Commercial shops needing alignment capability and wheels-free service. |
Maximum Capacity Heavy commercial vehicles, dually trucks, and high-volume service facilities. |
Customers are saying
You have no items in your shopping cart.
- Choosing a selection results in a full page refresh.
