Powerful Mid-Rise Lifting Performance. Professional-Grade Hydraulic Reliability. Built for Safer, Faster Automotive Service.

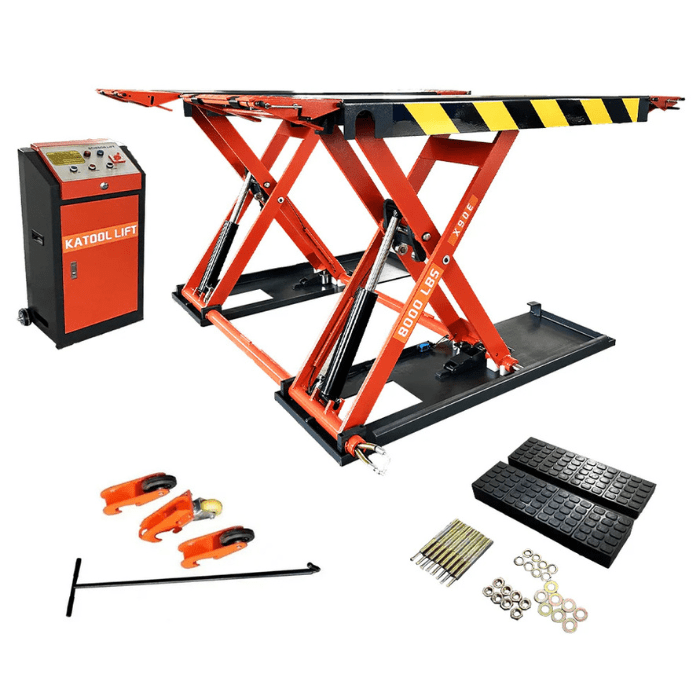

The Katool KT-X90E Mid-Rise Scissor Lift is engineered to provide dependable lifting performance for professional repair shops and home garages alike. Designed to replace unstable floor jacks and jack stands, this hydraulic scissor lift creates a secure working platform that makes routine maintenance, inspections, brake service, suspension work, and tire replacement safer and more efficient. With an impressive 8,000 lb (3,500 kg) lifting capacity, the KT-X90E easily accommodates most passenger cars, crossovers, SUVs, and light-duty trucks.

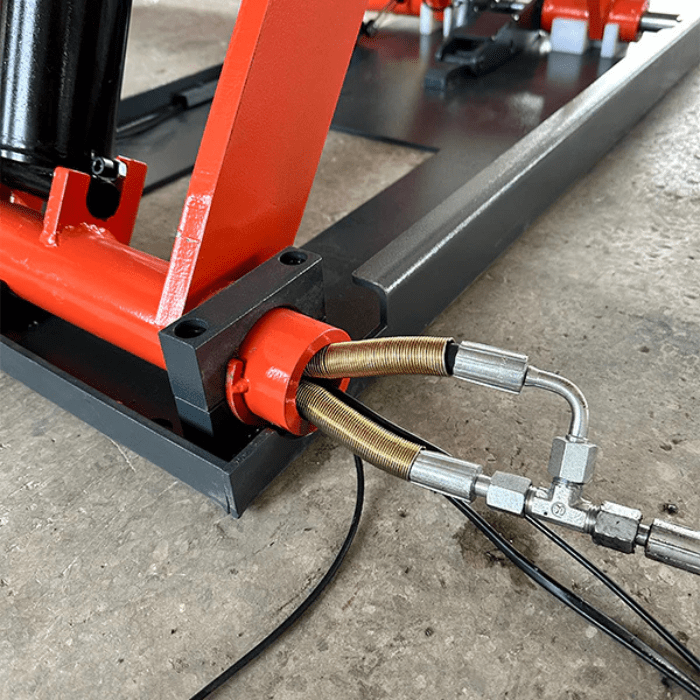

Its heavy-duty hydraulic lifting system operates on a standard 110V power supply and is driven by a high-performance aluminum motor with an integrated cooling fan to help maintain consistent operating temperatures during extended lifting cycles. Raising vehicles to a maximum height of 47 inches, the lift provides generous under-vehicle access while remaining an excellent solution for garages with limited ceiling height. The versatile design allows the lift to be used as either a fixed installation or a mobile unit, giving shops the flexibility to configure their workspace as needed.

Safety is integrated throughout the KT-X90E's design. A 24V low-voltage control system helps protect operators during use, while an integrated height limit switch prevents excessive lift travel. Durable composite rubber lifting blocks help distribute vehicle weight while protecting lifting points from damage. Built for years of dependable operation, the lift is backed by a 1-year warranty on parts and a 3-year structural warranty, providing added confidence for both commercial and residential users.

Whether you're operating a busy automotive repair facility or upgrading your personal garage, the Katool KT-X90E delivers the lifting power, stability, and reliability needed to complete maintenance and repair jobs with greater efficiency and confidence.

Perfect for: Professional repair shops • Home garages • Brake and suspension service • Tire and wheel service • Oil changes and inspections • General automotive maintenance

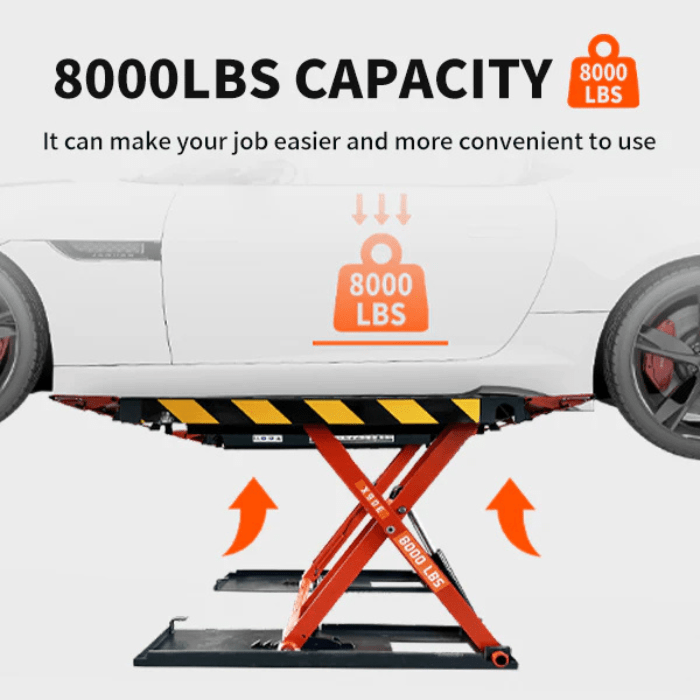

✔️ Heavy-duty 8,000 lb (3,500 kg) lifting capacity easily supports most cars, SUVs, and light-duty trucks.
✔️ Mid-rise lifting height of up to 47 inches provides comfortable access for underbody inspections and repairs.
✔️ Powerful hydraulic lifting system delivers smooth, dependable operation for everyday automotive service.
✔️ Operates on standard 110V power for convenient installation in residential and commercial garages.
✔️ High-efficiency aluminum motor with integrated cooling fan helps reduce heat buildup during continuous operation.
✔️ Flexible design allows installation as either a fixed lift or a movable unit to suit your workspace.
✔️ Integrated height limit switch helps prevent over-travel for added equipment and vehicle protection.

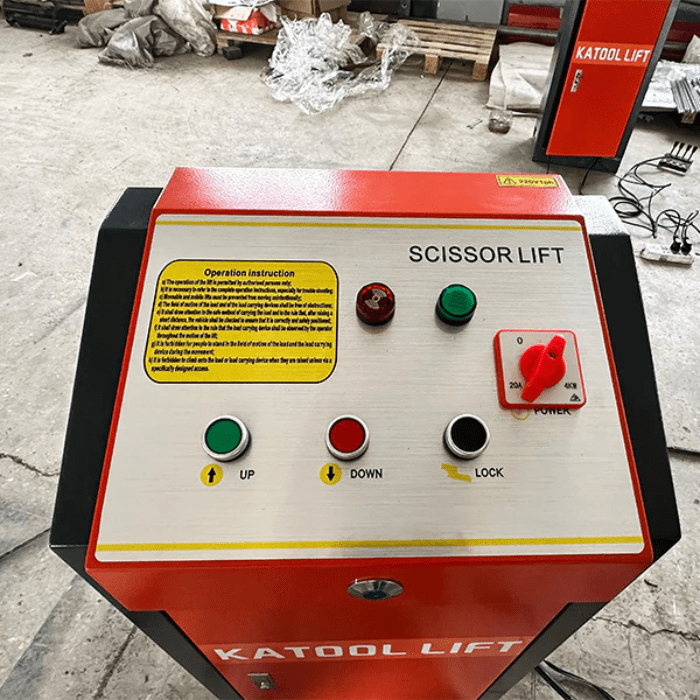

✔️ Low-voltage 24V control system enhances operator safety during lifting and lowering operations.
✔️ Composite rubber lifting blocks provide secure vehicle support while helping protect factory lift points.
✔️ Backed by a 1-year parts warranty and 3-year structural warranty for long-term peace of mind.

Features

High Lifting Capacity

  • Supports vehicles weighing up to 8,000 lbs (3,500 kg).
  • Designed for passenger cars, crossovers, SUVs, and light-duty trucks.
  • Provides stable lifting performance for everyday automotive service.

Low-Profile Design

  • Minimal collapsed height allows easy vehicle loading.
  • Ideal for garages with lower ceiling clearance.
  • Delivers excellent lifting performance without requiring excessive overhead space.

Dual Voltage Compatibility

  • Operates on standard 110V power.
  • Optional 220V configuration offers added installation flexibility.
  • Suitable for residential garages and commercial repair facilities.

Low Maintenance Components

  • Self-lubricating bushings and bearings reduce routine maintenance.
  • Promotes smoother lifting and lowering operation.
  • Helps extend the service life of critical moving components.

Integrated Safety Features

  • CE certified for dependable safety performance.
  • Includes a 24V safe control system and integrated height limit switch.
  • Composite rubber lifting blocks help protect vehicle lifting points while improving stability.

Versatile Vehicle Support

  • Includes drive-up ramps for convenient vehicle positioning.
  • Optional support bars (sold separately) accommodate longer or heavier vehicles.
  • Designed for a wide variety of automotive maintenance and repair applications.

Caster Kit Included

  • Integrated caster kit makes repositioning the lift simple.
  • Allows the lift to be moved around the shop when needed.
  • Provides added flexibility for garages with changing workspace layouts.

Specifications

KT-X90E Lift Specifications

  • Model: KT-X90E
  • Product Type: Mid-Rise Hydraulic Scissor Lift
  • Lifting Capacity: 8,000 lbs (3,500 kg)
  • Maximum Lift Height: 47 in (approx.)
  • Minimum Lock Height: 4.3 in
  • Lifting Time: Approximately 30 seconds
  • Mechanical Lock Positions: 5
  • Certification: CE Certified

Platform Dimensions & Power

  • Platform Length: 81.5 in
  • Platform Width: 20.1 in
  • Width Between Platforms: 32.2 in
  • Power Requirements: 110V (30A) or 220V, 60Hz, Single-Phase
  • Rated Hydraulic Pressure: 20 MPa
  • Control System: 24V Safe Control
  • Hydraulic Oil: AW-46 (AW-32 recommended for colder climates)

Safety, Accessories & Warranty

  • Load Testing: 115% Dynamic & 150% Static Capacity Tested
  • Included Accessories: Drive-up ramps, composite rubber lifting blocks, caster kit
  • Optional Accessories: Adjustable support bars (sold separately)
  • Safety Features: Height limit switch, 24V safe controls, mechanical safety locks
  • Warranty: 1-Year Parts Warranty with Extended Structural Coverage
