- Regular price
- $36,798.00
Ekko ES120E Electric Scissor Lift
When you’re working on maintenance, stocking shelves, or light installation tasks in confined warehouse spaces, the right scissor lift can mean the difference between smooth operations and frustrating delays. Many crews struggle with bulky, unstable platforms that stall at height or drain power early—but the Ekko ES120E Electric Scissor Lift series has you covered. Built to tackle common warehouse bottlenecks head-on, these platforms combine a 700 lb load capacity, smooth proportional controls, and a commanding 39' (468") platform reach to deliver elite high-altitude access.
Performance & Applications
Available in both a standard lead-acid configuration and an advanced lithium-battery option, the ES120E lineup is custom-built to maximize indoor facility productivity. Whether you are inspecting high-ceiling ductwork, replacing heavy warehouse lighting fixtures, or conducting routine industrial upkeep, these units provide the high-altitude stability, precision tracking, and compact footprint required to get the job done right.
Maximum Vertical Reach
Elevate your workspace to a towering 39' platform height. Built with a rigid, heavy-duty welded steel chassis, the ES120E effortlessly carries a 2-person maintenance crew and up to 700 lbs of tools and gear, keeping your platform solid and sway-free at maximum elevation.
Aisle-Optimized Engineering
Don't let tight floor layouts compromise your deadlines. Boasting an ultra-compact body width and a true zero-inside turning radius, the ES120E pivots seamlessly in place. Operators can glide through narrow corridors without having to execute complex multi-point maneuvers.
Fast, Efficient Lift Cycles
Keep multi-stage projects running ahead of schedule. The high-efficiency hydraulic lift system is engineered for rapid 52-second rise and fall cycles, drastically cutting down operator idle time between tasks and streamlining fast-paced, repetitive maintenance workflows.
Versatile Power Platforms
Tailor your investment to your fleet's exact needs. The standard ES120E uses a heavy-duty 12V x 4 / 300 Ah lead-acid battery configuration. Alternatively, the ES120E-LI integrates an advanced 25.6V / 230 Ah lithium-ion pack for rapid charging, zero maintenance, and extended daily duty cycles.
Key Features
Backed by a robust 3-year limited factory warranty on major elements, ensuring dependable asset protection and absolute peace of mind.
Provides seamless fingertip control over travel and elevation speeds, minimizing jolts and boosting operator handling confidence at height.

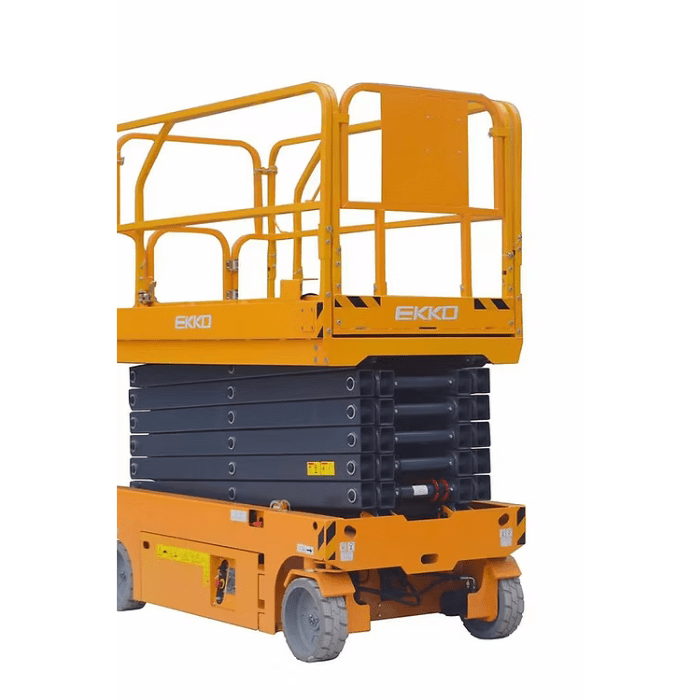

Stows under 103" with the guardrails up, and drops to just 77" when folded, allowing easy transport through doorways and inside service vehicles.
Equipped with a sliding rollout deck extension rated for 265 lbs, providing essential horizontal overreach past fixed floor obstacles.
Features double front-wheel actuators and dual rear braking paired with a 30% gradeability rating for secure management on ramps.
Fully engineered to meet strict GB25849 and EN280 regulatory standards, complete with automatic integrated electronic tilt safeguards.
Specifications
| Max Working Height (A1) | 45.0' (547") |
| Max Platform Height (A2) | 39.0' (468") |
| Overall Length (B) | 94.5 in |
| Overall Width (C) | 45.27 in |
| Overall Height - Guardrails Up (D) | 102.36 in |
| Overall Height - Folded Guardrails | 77.0 in |
| Platform Size (L x W) | 88.58 x 45.27 in |
| Guardrail Height (G) | 43.3 in |
| Platform Extension Size (H) | 39.37 in |
| Ground Clearance - Closed (I) | 3.74 in |
| Ground Clearance - Raised (J) | 0.78 in |
| Wheelbase (K) | 72.83 in |
| Max Workers (Indoor / Outdoor) | 2 / 0 (Indoor Only) |
| Main Platform Load Rating | 700 lbs |
| Extended Platform Load Rating | 265 lbs |
| Drive Speed (Folded) | 0 ~ 3.2 km/h |
| Drive Speed (Lifting) | 0 ~ 0.8 km/h |
| Minimum Turning Radius (Inside) | 0 in |
| Minimum Turning Radius (Outside) | 86.61 in |
| Rise / Fall Times | 52 / 52 seconds |
| Max Tilt Angle (Front / Left / Right) | 3° / 1.5° / 1.5° |
| Max Wind Speed (Indoor / Outdoor) | 0 / 0 m/s |
| Max Lateral Force (Indoor / Outdoor) | 400 / 0 N |
| Gradeability | 30% |
| Control Type | Curtis Proportional Control |
| Actuator System | Double Front Wheels |
| Braking System | Double Rear Wheels |
| Tire Specification & Type | 15" x 5" Solid Non-Marking |
| Hydraulic Tank Capacity | 22 L |
| Total Product Weight | 6,490 lbs |
| Lift Motor Power | 3.3 kW |
| Drive Motor Power | 0.7 kW x 2 |
| Standard Battery Configuration | 12V x 4 / 300 Ah (Lead-Acid) |
| Optional Lithium Configuration | 25.6V / 230 Ah (Li Variant) |
| Charger Input Voltage | 100–240 VAC (Onboard) |
| Charger Output Current | 36 A |
| Control Voltage | 24 VDC |
