- Regular price
- $35,198.00

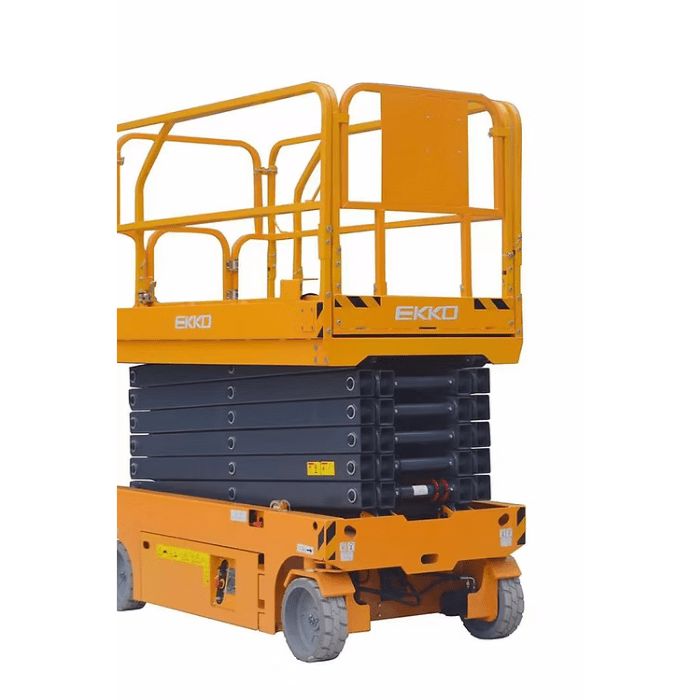

Ekko ES100E Electric Scissor Lift
When you’re up against tight warehouse layouts, unstable platforms, or impatient deadlines, choosing the right scissor lift can make the difference between a smooth job and a costly delay. The Ekko ES100E Electric Scissor Lift tackles these headaches head-on with a 700 lb capacity, solid steel construction, and Curtis proportional controls that keep you in complete command. With a generous 32.8' (394") platform height, this workhorse is engineered to reach soaring heights safely and efficiently.
Performance & Applications
Whether you choose the standard lead-acid model or the lithium-powered variant, the ES100E family delivers an ultra-high vertical reach without sacrificing the agility required for crowded floor plans. Fully compliant with GB25849 & EN280 standards, these units provide operators with maximum stability and confidence during challenging maintenance, stock selection, or overhead installation workflows.
Ultra-High Vertical Access
Reach towering heights with an expansive 32.8' platform elevation. The heavy-duty steel frame handles up to two technicians along with 700 lbs of gear comfortably, ensuring minimal flex and absolute stability at maximum extension. An additional 265 lbs can be deployed out on the slide extension.
Aisle-Optimized Agility
Beyond sheer lifting power, these lifts slide effortlessly through narrow industrial aisles. A true zero-inside turning radius lets operators pivot the machine in place inside cramped corridors, saving valuable maneuver time and protecting surrounding inventory racks.
Controlled & Precise Travel
Equipped with precision Curtis proportional controls, the ES100E travels smoothly at up to 3.2 km/h when folded, automatically slowing to a controlled, predictable 0.8 km/h while elevated. Double front-wheel actuators and 30% gradeability allow it to tackle ramps and inclines seamlessly.
Fleet-Ready Power Options
The classic ES100E features a proven 6V x 4 / 225 Ah lead-acid battery setup that integrates into existing maintenance programs. For high-demand shifts, the ES100E-LI upgrades to an advanced 25.6V / 230 Ah lithium platform for faster recharge cycles, extended service runtimes, and zero battery maintenance.
Key Features
Backed by a comprehensive 1-year limited warranty on structural components, giving your fleet long-term protection and reliability.
The overall height stands under 97" with rails up, but folds down neatly to just 72", allowing easy transit through standard doorways and low bays.
Features an integrated sliding platform deck extension rated for up to 265 lbs, providing essential horizontal clearance over fixed machinery.
Combines double front-wheel steering actuators with a responsive double rear-wheel braking system to secure the lift on uneven surfaces.
Eliminates jerky, sudden platform movements by feathering acceleration and elevation cycles for fatigue-free, all-day operation.
Approved to support a 2-person team indoors and a 1-person crew outdoors, providing strict safety alignment with global regulations.
Specifications
| Max Working Height (A1) | 39.0' (472") |
| Max Platform Height (A2) | 32.8' (394") |
| Overall Length (B) | 94.5 in |
| Overall Width (C) | 45.27 in |
| Overall Height - Guardrails Up (D) | 96.0 in |
| Overall Height - Folded Guardrails | 72.0 in |
| Platform Size (L x W) | 88.58 x 45.27 in |
| Guardrail Height (G) | 43.3 in |
| Platform Extension Size (H) | 39.37 in |
| Ground Clearance - Closed (I) | 3.74 in |
| Ground Clearance - Raised (J) | 0.78 in |
| Wheelbase (K) | 72.83 in |
| Max Workers (Indoor / Outdoor) | 2 / 1 |
| Main Platform Load Rating | 700 lbs |
| Extended Platform Load Rating | 265 lbs |
| Drive Speed (Folded) | 0 ~ 3.2 km/h |
| Drive Speed (Lifting) | 0 ~ 0.8 km/h |
| Minimum Turning Radius (Inside) | 0 in |
| Minimum Turning Radius (Outside) | 86.61 in |
| Rise / Fall Times | 52 / 48 seconds |
| Max Tilt Angle (Front / Left / Right) | 3° / 1.5° / 1.5° |
| Max Wind Speed (Indoor / Outdoor) | 0 / 12.5 m/s |
| Max Lateral Force (Indoor / Outdoor) | 400 / 200 N |
| Gradeability | 30% |
| Control Type | Curtis Proportional Control |
| Actuator System | Double Front Wheels |
| Braking System | Double Rear Wheels |
| Tire Specification & Type | 15" x 5" Non-Marking |
| Hydraulic Tank Capacity | 22 L |
| Total Product Weight | 6,204 lbs |
| Lift Motor Power | 3.3 kW |
| Drive Motor Power | 0.7 kW x 2 |
| Standard Battery Configuration | 6V x 4 / 225 Ah (Lead-Acid) |
| Optional Lithium Configuration | 25.6V / 230 Ah (Li Variant) |
| Charger Input Voltage | 100–240 VAC (Onboard) |
| Charger Output Current | 36 A |
| Control Voltage | 24 VDC |
