- Regular price
- $33,598.00

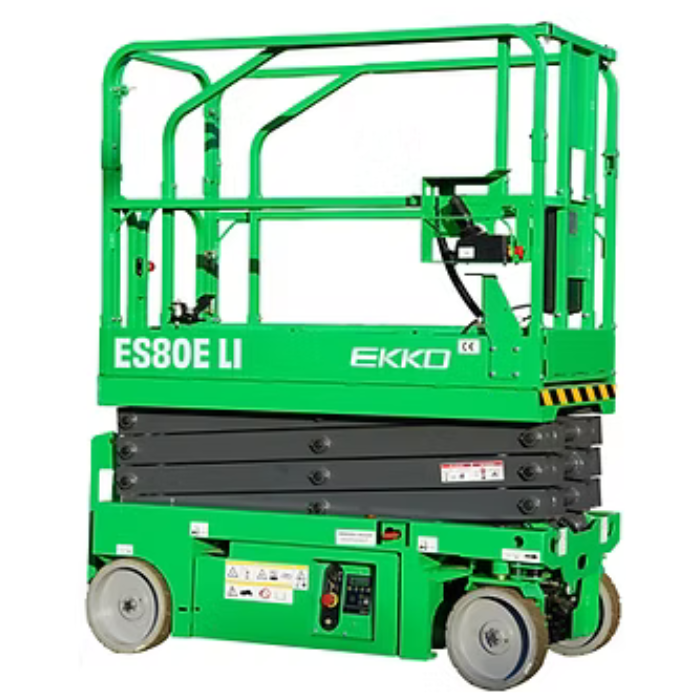

Ekko ES80E-LI Electric Scissor Lift
Choosing the right scissor lift can feel overwhelming when you’re juggling tight aisles, heavy loads, and strict safety standards. Platforms that wobble, motors that stall mid-lift, or batteries that die early shouldn't hinder your operation. The Ekko ES80E-LI Electric Scissor Lift family shines by tackling demanding high-reach environments with absolute confidence, combining an exceptional 990 lb capacity, 26.2' platform height, steel-reinforced construction, and precision Curtis proportional controls.
Performance & Applications
Whether stocking high industrial racking, maintaining overhead facility fixtures, or running heavy-duty installations, the Ekko ES80E-LI family keeps every lift efficient, safe, and seamless. Both the standard model and the lithium-battery version offer a high-capacity platform that allows your team to focus completely on the work at hand rather than the equipment limits.
High-Capacity Vertical Lift
Move tools, heavy industrial materials, and multiple technicians in fewer trips. Boasting a massive 990 lb platform capacity, the ES80E-LI utilizes a rigid, steel-reinforced frame that actively resists flex, ensuring that every extension feels solid, safe, and completely secure at full height.
Compact Storage & Low Clearance
Despite its incredible 26.2' platform reach, the ES80E-LI stows away beautifully under 8'. When transit demands it, the guardrails fold down to an overall clearance height of just 67″, allowing the unit to easily navigate standard warehouse doorways, tight corridors, and compact storage yards.
Intuitive Proportional Handling
Precision Curtis proportional controllers eliminate jerky movements by feathering drive and lift adjustments. Operators can navigate tight aisles using a true zero-inside turning radius, traveling at up to 3.2 km/h when folded and a micro-controlled 0.8 km/h when fully elevated.
Power Built for Your Shifts
Fit this lift directly into your existing infrastructure. The ES80E-LI upgrades to an advanced 25.6V / 230 Ah lithium power bank for significantly faster charge cycles and extended duty runtimes.
Key Features
Includes a 1-year limited warranty on structural and key elements, providing long-term peace of mind and dependable asset security.
An exceptional load rating supports heavy equipment and tools, dramatically reducing the number of repetitive transit cycles.
Features a 39.37″ sliding platform extension rated for 265 lbs, giving technicians seamless horizontal outreach over fixed ground obstacles.
Equipped with double front-wheel actuators, dual rear-wheel braking, and a 30% gradeability rating to comfortably handle ramps and inclines.
Strictly engineered to meet international GB25849 & EN280 standards, complete with integrated tilt safeguards and wind-load sensors.
Optimized to support up to two operators simultaneously indoors (and one operator outdoors), standardizing safety protocols across your workforce.
Specifications

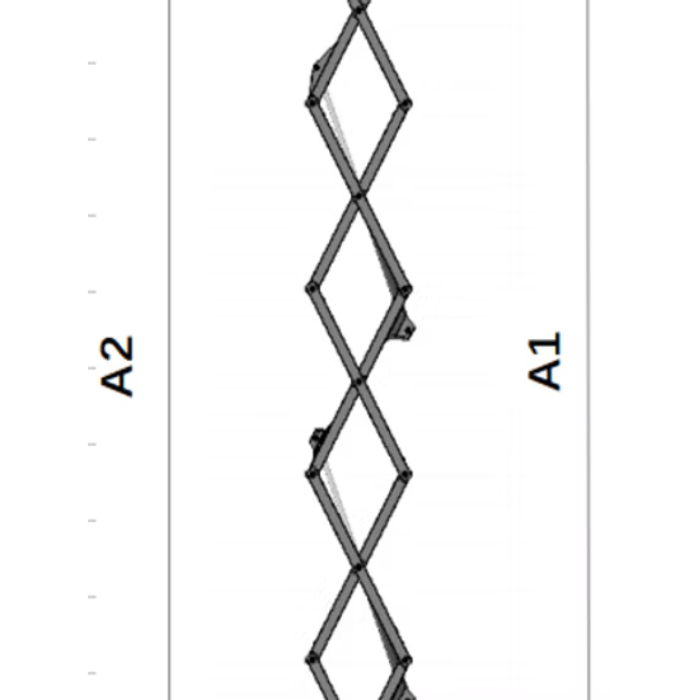

| Max Working Height (A1) | 32.8' (394") |
| Max Platform Height (A2) | 26.2' (315") |
| Overall Length (B) | 94.5 in |
| Overall Width (C) | 45.27 in |
| Overall Height - Guardrails Up (D) | 91.5 in |
| Overall Height - Folded Guardrails | 67.0 in |
| Platform Size (L x W) | 88.58 x 45.27 in |
| Guardrail Height (G) | 43.3 in |
| Platform Extension Size (H) | 39.37 in |
| Ground Clearance - Closed (I) | 3.74 in |
| Ground Clearance - Raised (J) | 0.78 in |
| Wheelbase (K) | 72.83 in |
| Max Workers (Indoor / Outdoor) | 2 / 1 |
| Main Platform Load Rating | 990 lbs |
| Extended Platform Load Rating | 265 lbs |
| Drive Speed (Folded) | 0 ~ 3.2 km/h |
| Drive Speed (Lifting) | 0 ~ 0.8 km/h |
| Minimum Turning Radius (Inside) | 0 in |
| Minimum Turning Radius (Outside) | 86.61 in |
| Rise / Fall Times | 32 / 35 seconds |
| Max Tilt Angle (Front / Left / Right) | 3° / 1.5° / 1.5° |
| Max Wind Speed (Indoor / Outdoor) | 0 / 12.5 m/s |
| Max Lateral Force (Indoor / Outdoor) | 400 / 200 N |
| Gradeability | 30% |
| Control Type | Curtis Proportional Control |
| Actuator System | Double Front Wheels |
| Braking System | Double Rear Wheels |
| Tire Specification & Type | 15" x 5" Solid/Polyurethane |
| Hydraulic Tank Capacity | 22 L |
| Total Product Weight | 5,512 lbs |
| Lift Motor Power | 3.3 kW |
| Drive Motor Power | 0.7 kW x 2 |
| Standard Battery Configuration | 6V x 4 / 225 Ah (Lead-Acid) |
| Optional Lithium Configuration | 25.6V / 230 Ah (Li Variant) |
| Charger Input Voltage | 100–240 VAC (Onboard) |
| Charger Output Current | 36 A |
| Control Voltage | 24 VDC |
