Ekko Electric Scissor Lift – 228" Max Lift Height - Lead Acid Battery - ES60E

SKU ES60E
$23,998.00
OFFICIAL AUTHORIZED DEALER
QUESTIONS? (866) 671-5917
EMAIL US Support Desk
MANUFACTURER WARRANTY

Official protection for your investment.

VIEW PDF DOCUMENT
REQUEST QUOTE

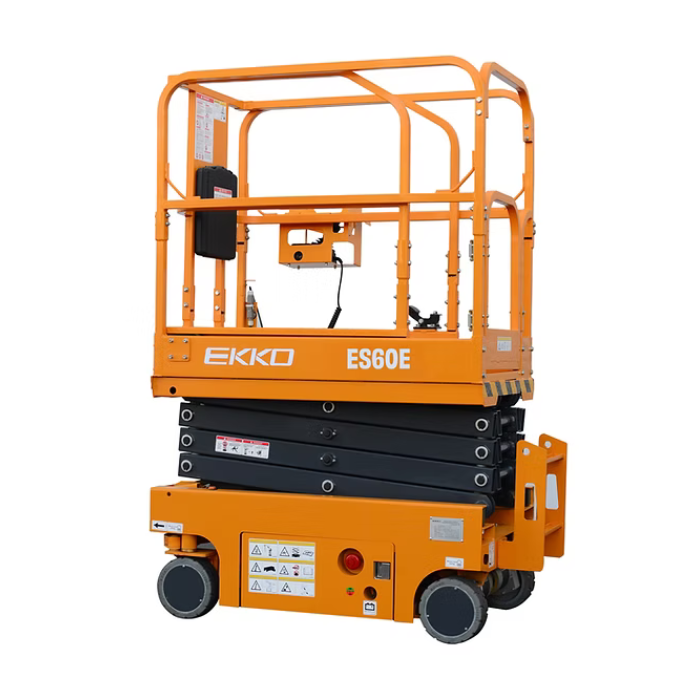

Ekko ES60E Electric Scissor Lift

Picking the right scissor lift for your warehouse or job site can feel like walking a tightrope—too little height, and you can’t reach overhead racks; too bulky, and you’re scraping walls in narrow aisles. The Ekko ES60E Electric Scissor Lift solves these headaches by delivering up to 19 feet of safe, stable reach, backed by rock-solid steel construction and Curtis proportional controls. Dependable performance, zero-inside turning radius, and industrial-grade safety compliance.

19' (228") Max Platform Height
506 lbs Load Capacity
0" Inside Turning Radius
Curtis Proportional Controls

Performance & Applications

The Ekko ES60E lineup blends performance, safety, and ease of use, allowing your team to focus entirely on the task at hand rather than struggling with the equipment. Many job sites suffer from units that stall mid-way, drain maintenance budgets, or struggle in tight configurations. The ES60E series addresses these concerns with rapid duty cycles, versatile battery configurations, and complete adherence to global safety standards.

Maneuver Like a Dream

When floor space is at a premium, the ES60E navigates confined warehouse aisles effortlessly. Featuring four smooth polyurethane tires and a double-rear-wheel braking system, this scissor lift glides into position without scuffing industrial floors or losing vital traction when loaded.

Compact Footprint, Big Reach

With a compact ~65″ × 30″ footprint when the guardrails are folded down, these units move easily through standard doorways, down narrow walkways, and onto crowded loading docks. Once in position, they expand vertically to provide a safe, high-reach working platform.

Rapid, Productive Workflows

Downtime is the enemy of warehouse productivity. The ES60E features fast 18-second rise and 28-second descent times. Driving speeds reach up to 4 km/h when folded and a controlled 0.8 km/h while lifted, ensuring operators spend less time adjusting positions and more time working.

Advanced Power Options

Equipped with an onboard 100–240 VAC charger, the ES60E family fits into any facility's power infrastructure. Choosing the advanced lithium-battery variant cuts charging times significantly and boosts active runtime, making it the ideal go-to scissor lift for demanding multi-shift operations.

Key Features

1-Year Limited Warranty

Comes standard with a 1-year limited warranty, providing long-term manufacturer support and operational peace of mind.

506 lb Load Capacity

A robust rating allows operators to comfortably handle heavy tools, industrial equipment, and parts effortlessly.

Precision Curtis Proportional Controls

The shared Curtis joystick layout gives smooth, intuitive forward/reverse and lift/descent control without confusing multi-lever systems.

Steel-Reinforced Safety Rails

Robust 43.31″ guardrails alongside GB25849 & EN280 compliance deliver a stable, secure working platform at maximum heights.

Zero-Inside Turning Radius

Pivot completely within the machine's own footprint to maximize maneuverability and easily clear sudden obstacles.

Lithium-Battery Efficiency (Optional)

The optional 25.6V / 150Ah pack charges much faster, extends daily runtimes, and slashes routine maintenance compared to lead-acid.

Specifications

Product Dimensions
Max Working Height (A1) 25.5' (307")
Max Platform Height (A2) 19' (228")
Overall Length (B) 72.44 in
Overall Width (C) 29.92 in
Overall Height - Guardrails Up (D) 85.75 in
Overall Height - Folded Guardrails 65.00 in
Platform Size (L x W) 64.96 x 29.92 in
Guardrail Height (G) 43.31 in
Platform Extension Size (H) 35.43 in
Ground Clearance - Closed (I) 2.36 in
Ground Clearance - Raised (J) 0.59 in
Wheelbase (K) 1.36 in
Product Performance
Max Workers (Indoor / Outdoor) 2 / 0
Main Platform Load Rating 506 lbs
Extended Platform Load Rating 264 lbs
Drive Speed (Folded) 0 ~ 4 km/h
Drive Speed (Lifting) 0 ~ 0.8 km/h
Minimum Turning Radius (Inside) 0 in
Minimum Turning Radius (Outside) 61 in
Rise / Fall Times 18 / 28 seconds
Max Tilt Angle (Front / Left / Right) 3° / 1.5° / 1.5°
Max Wind Speed (Indoor / Outdoor) 0 / 0 m/s
Max Lateral Force (Indoor / Outdoor) 400 / 0 N
Gradeability 30%
Control & Mechanical
Control Type Curtis Proportional Control
Actuator System Double Front Wheels
Braking System Double Rear Wheels
Tire Specification & Type 12.71" x 3.93" Polyurethane
Hydraulic Tank Capacity 8 L
Total Product Weight 3,256 lbs
Power System
Lift Motor Power 2.2 kW
Drive Motor Power 0.7 kW x 2
Standard Battery Configuration 6V x 4 / 225 Ah (Lead-Acid)
Optional Lithium Configuration 25.6V / 150 Ah (Li Variant)
Charger Input Voltage 100–240 VAC (Onboard)
Charger Output Current 36 A
Control Voltage 24 VDC
