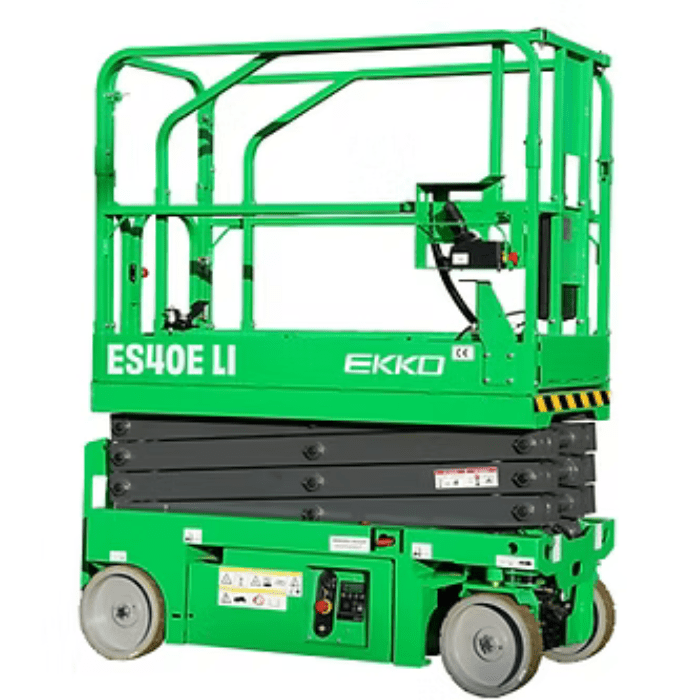

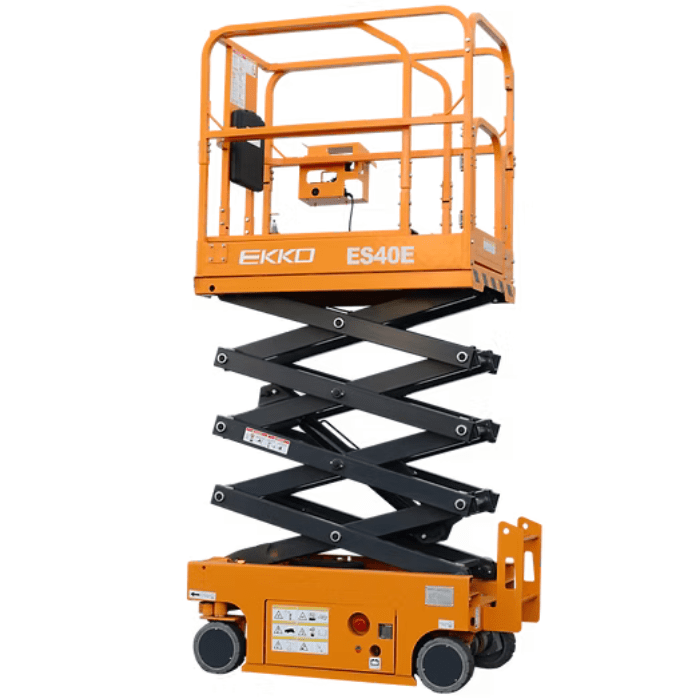

Ekko ES40E-LI Electric Scissor Lift

Choosing the right scissor lift can feel like a leap of faith—will it handle heavy loads, fit through tight spaces, or stall halfway up? The Ekko ES40E-LI Electric Scissor Lift solves these headaches with a highly compact footprint, rock-solid steel construction, and a dependable capacity that easily handles up to 500 lbs. Engineered for warehouse managers and maintenance teams who refuse to wrestle with bulky or unreliable equipment, this series provides a safe 13-foot vertical platform reach backed by absolute stability and precision controls.

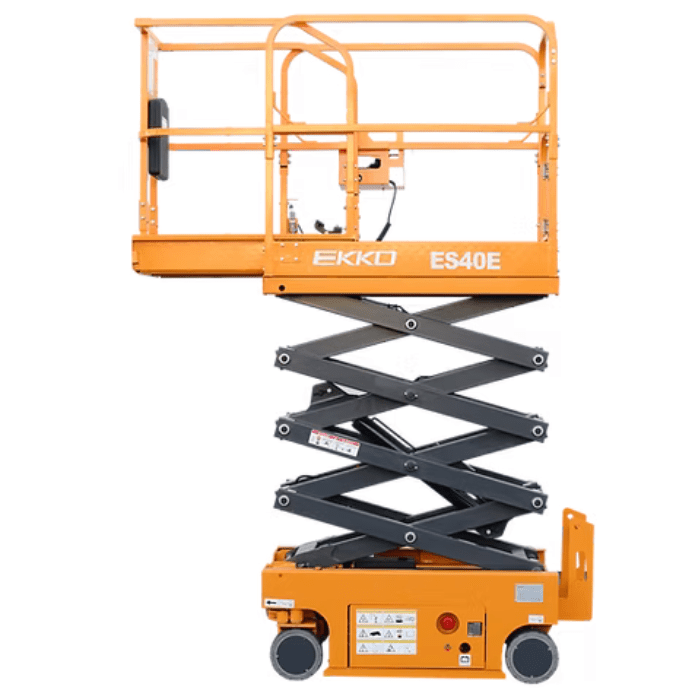

13' (157") Max Platform Height
500 lbs Load Capacity
0" Inside Turning Radius
Curtis Proportional Controls

Performance & Applications

The Ekko ES40E-LI scissor lift family successfully balances efficient indoor navigation with robust vertical capabilities. Available in both standard lead-acid and advanced lithium configurations, this lineup eliminates workflow bottlenecks in crowded aisles and high-density storage areas. Its compliance with rigorous global safety standards ensures that your team stays focused on execution rather than gear limitations.

Effortless Indoor Navigation

Maneuvering a heavy aerial platform through tight layouts shouldn't be a gamble. Boasting a true zero-inside turning radius and non-marking polyurethane tires, the ES40E-LI glides smoothly into restricted corners and tight warehouse rows without scuffing surfaces or compromising stability.

Compact, Low-Profile Footprint

With standard guardrails that easily fold down to a clearance height of just 63″, the ES40E-LI navigates standard low-clearance doorways, service corridors, and freight lifts without hassle. This makes it an invaluable asset when space is at an absolute premium.

Rapid Duty Cycles

Keep facility maintenance and inventory management moving on tight schedules. A highly efficient hydraulic design supports balanced 25-second lift and descent intervals, combined with standard driving speeds up to 4 km/h when folded and micro-adjustments at 0.8 km/h while fully elevated.

Versatile Battery Systems

The lithium iron phosphate configuration delivers an advanced 25.6V / 75 Ah power bank designed for significantly faster recharge cycles, zero memory effect, and longer service life.

Key Features

1-Year Limited Warranty

Provides manufacturer-backed security and comprehensive structural support for long-term operational confidence.

500 lb Main Capacity

Offers a stable, high-capacity rating to easily carry technicians along with heavy tools and project hardware.

Precision Curtis Controller

Features an intuitive proportional throttle and lift system for micro-adjustments at height, reducing fatigue and maximizing precision.

Robust Steel Construction

Crafted with a heavy-gauge, robotically welded steel frame built to actively resist impacts, industrial wear, and corrosion.

Advanced Safety Safeguards

Strictly compliant with GB25849 & EN280 standards, complete with integrated tilt sensing and load monitoring systems.

Extended Platform Capability

Includes a 23.6″ platform extension rated for up to 220 lbs, allowing technicians extra reach over fixed floor obstacles.

Specifications

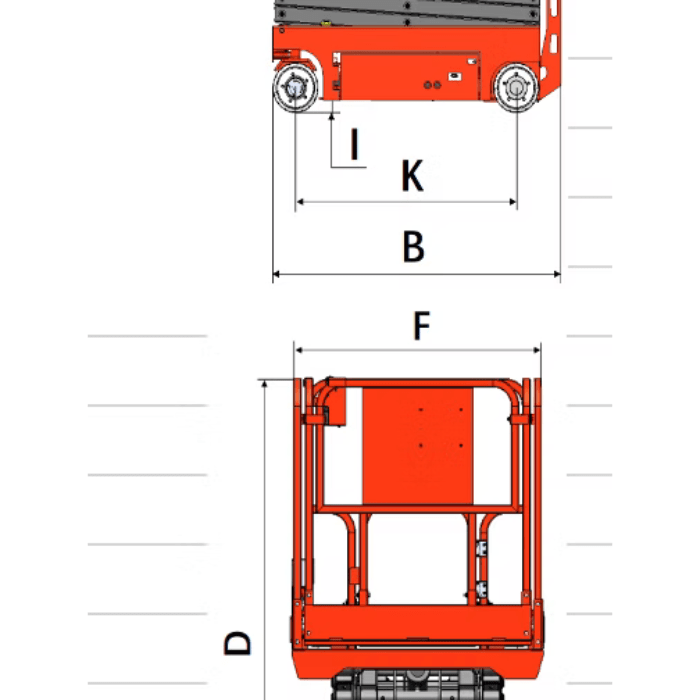

Product Dimensions

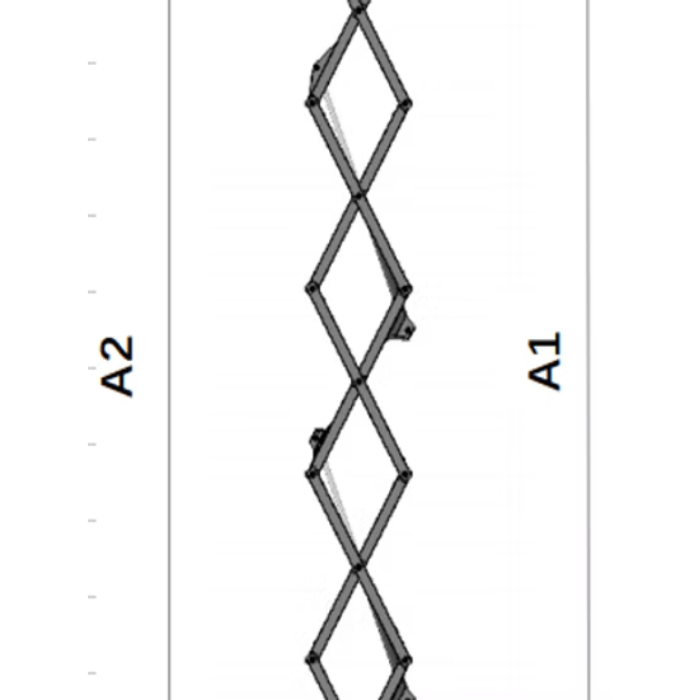

Max Working Height (A1) 19.7' (236.2")
Max Platform Height (A2) 13' (157")
Overall Length (B) 57.1 in
Overall Width (C) 29.9 in
Overall Height - Guardrails Up (D) 76.8 in
Overall Height - Folded Guardrails 63.0 in
Platform Size (L x W) 50.4 x 29.1 in
Guardrail Height (G) 43.3 in
Platform Extension Size (H) 23.6 in
Ground Clearance - Closed (I) 2.36 in
Ground Clearance - Raised (J) 0.59 in
Wheelbase (K) 40.6 in
Product Performance
Max Workers (Indoor / Outdoor) 2 / 0
Main Platform Load Rating 500 lbs
Extended Platform Load Rating 220 lbs
Drive Speed (Folded) 0 ~ 4 km/h
Drive Speed (Lifting) 0 ~ 0.8 km/h
Minimum Turning Radius (Inside) 0 in
Minimum Turning Radius (Outside) 61 in
Rise / Fall Times 25 / 25 seconds
Max Tilt Angle (Front / Left / Right) 3° / 1.5° / 1.5°
Max Wind Speed (Indoor / Outdoor) 0 / 0 m/s
Max Lateral Force (Indoor / Outdoor) 400 / 0 N
Gradeability 25%
Control & Mechanical
Control Type Curtis Proportional Control
Actuator System Dual Front Wheels
Braking System Double Front Wheels
Tire Specification & Type 9" x 3.1" Polyurethane
Hydraulic Tank Capacity 3 L
Total Product Weight 2,250 lbs
Power System
Lift Motor Power 1.2 kW
Drive Motor Power 0.4 kW x 2
Standard Battery Configuration 12V x 2 / 100 Ah (Lead-Acid)
Optional Lithium Configuration 25.6V / 75 Ah (LiFePO₄ Variant)
Charger Input Voltage 100–240 VAC (Onboard)
Charger Output Current 10 A
Control Voltage 24 VDC
