Ekko 4,000 lb 3-Wheel Electric Forklift – 185" Max Lift Height - Lithium battery - EK18AT-185Li

SKU EK18AT-185Li
$36,399.00
OFFICIAL AUTHORIZED DEALER
QUESTIONS? (866) 671-5917
EMAIL US Support Desk
MANUFACTURER WARRANTY

Official protection for your investment.

VIEW PDF DOCUMENT
REQUEST QUOTE

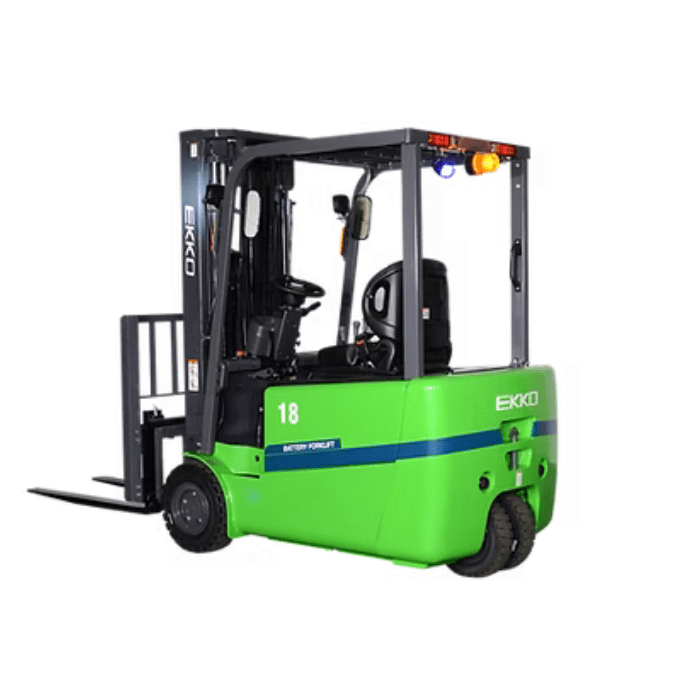

Ekko EK18AT-185Li 4,000 lb 3-Wheel Electric Forklift

Need Agile Power? Upgrade to the Ekko EK18AT-185Li 4,000 lb 3-Wheel Electric Forklift for Tight-Aisle Efficiency. When you’re juggling tight warehouse aisles and heavy loads, an underpowered lift can bring your whole operation to a grinding halt. Picking up pallets that weigh close to 4,000 lbs only to stall halfway up? That’s frustrating downtime you can’t afford. The Ekko 4,000 lb 3-Wheel Electric Forklift (EK18AT-185Li) is built to crush those bottlenecks. With its powerful dual-motor InMotion® controller and 48 V/202 Ah lithium battery, this electric forklift delivers smooth, reliable lifting every single shift.

4,000 lb Lift Capacity
185" Max Lift Height
61" Turning Radius
48V / 202Ah Lithium Battery

Performance & Applications

Durability is just as crucial as power. Constructed from heavy-gauge steel and robotic-welded at stress points, this forklift thrives in harsh environments—from dusty stock rooms to bustling loading docks. Solid pneumatic tires ensure you’re not sliding around on uneven floors, while hydraulic steering keeps every turn predictable and precise.

High-Efficiency Operations

And because long workdays shouldn’t mean long charging times, the EK18AT-185Li comes ready for in-house charging with its 3-phase 480 V charger (optional 220 V and 110 V available). If you’re hunting for a forklift with 185" lift capability that won’t leave you stranded mid-shift, this Ekko forklift is your go-to solution.

Operational Benefits

Smooth Power Delivery

Dual-motor system for consistent torque

High Reach Capability

Stack pallets up to 15.4 ft

Flat-Proof Operation

Solid pneumatic tires eliminate downtime

User-Friendly Controls

Ergonomic layout reduces fatigue

Fast Charging

Lithium battery tops off quickly

Durable Construction

Robotic-welded steel frame

Key Features

Dual-Motor Powertrain

The EK18AT-185Li sports a dual-motor InMotion® controller that balances lift and drive functions for seamless operation. You’ll feel consistent torque even on inclines or uneven terrain, while reduced wear keeps your forklift in service longer.

185" Max Lift Height

Reach up to 185 inches to stack pallets high in narrow racking systems. A 43.7 in free lift lets you work under low ceilings before raising to full height.

Solid Pneumatic Tires

Enjoy the stability of pneumatic rubber without flats. These tires absorb shocks on rough concrete and roll over minor debris for uninterrupted shifts.

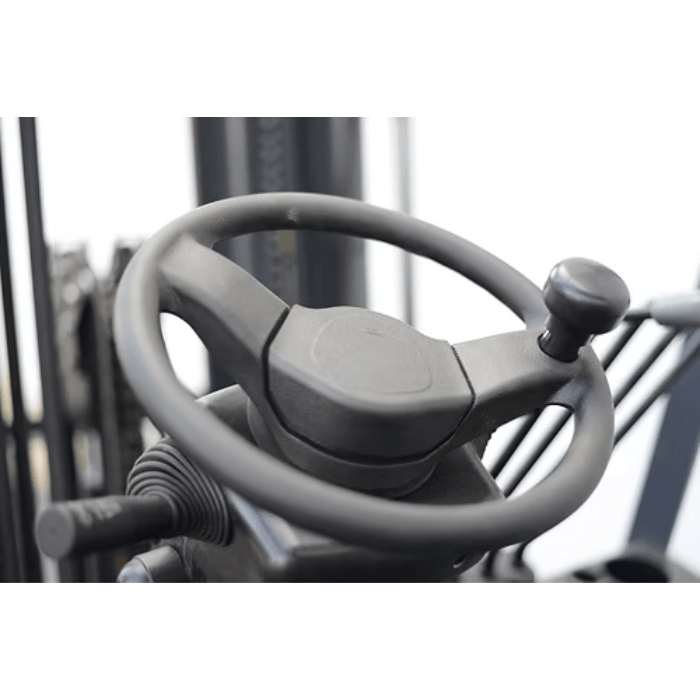

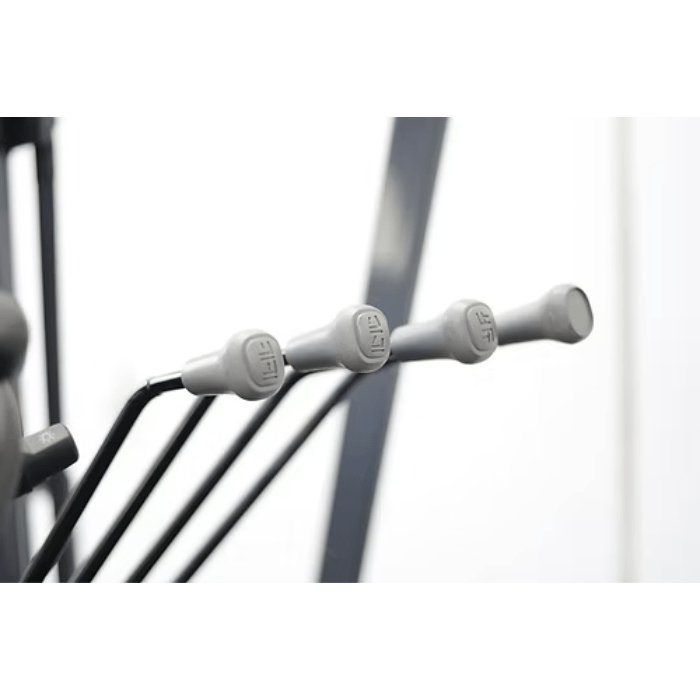

Ergonomic Controls

Adjustable handle and intuitive layout reduce operator fatigue. Precise levers and a clear dash display keep vital stats front and center.

High-Capacity Lithium Battery

The 48 V/202 Ah lithium battery charges faster and lasts longer than lead-acid options, supplying consistent power all shift.

Robust Steel Frame

Heavy-duty steel chassis with robotic welding at key joints withstands daily impacts, extending the forklift’s service life.

Specifications

Performance
Model EK18AT-185Li
Drive Type Lithium Forklift
Type of Operation Rider
Load Capacity 4,000 lbs
Service Weight with Battery 7,341 lbs
Travel Speed (Laden/Unladen) 10/10 mph
Climbing Ability (With Load) 20%
Lift & Mast
Lift Height 185 in
Lowered Mast Height 83 in
Free Lift Height 43.7 in
Lifting Speed (With/Without Load) 13.8 / 20.5 in/s
Lowering Speed (Laden/Unladen) 11.8 / 15.7 in/s
Tilt (Forward/Backward) 3° / 6°
Dimensions
Load Center Distance 24 in
Wheelbase 53.5 in
Height of Overhead Guard (Cabin) 77.6 in
Overall Length 116.9 in
Overall Width 41.5 in
Ground Clearance Under Mast 4.3 in
Min. Ground Clearance 3.7 in
Min. Turning Radius 61 in
Side Shift Cascade®
Chassis & Power System
Tire Material Solid Pneumatic
Tire Size Front 200/50-10
Tire Size Rear 140x55-9
Wheels 2×/2
Tread, Front 35.8 in
Tread, Back 7.1 in
Service Brake Hydraulic
Driving Motor 4.75 kW
Lift Motor 10 kW
Engine Mode InMotion® Controller
Battery 48V/202 Ah Lithium
Charger 48V/100A
