Atlas Auto Equipment

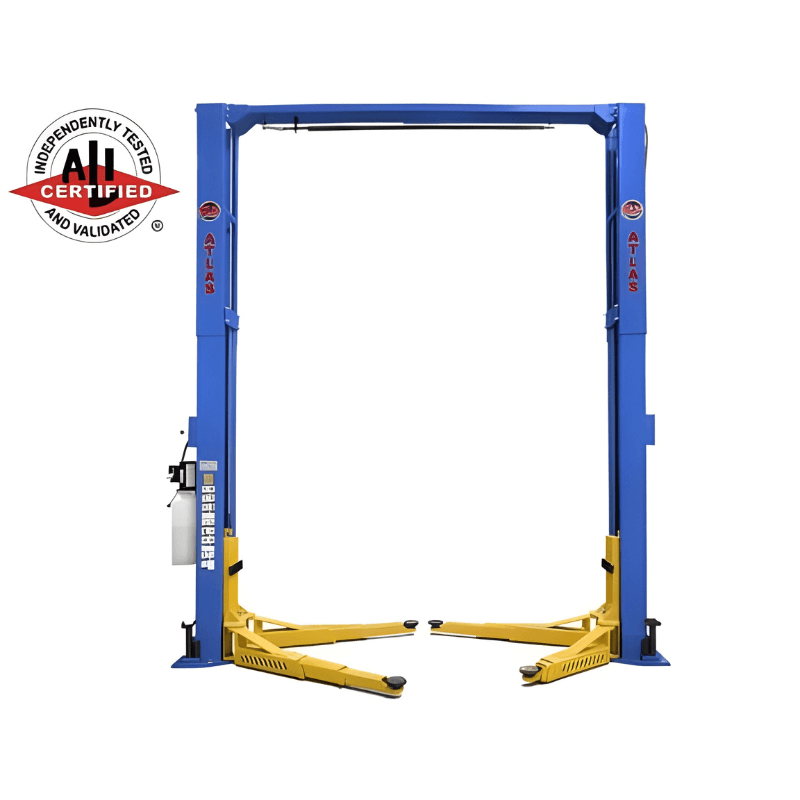

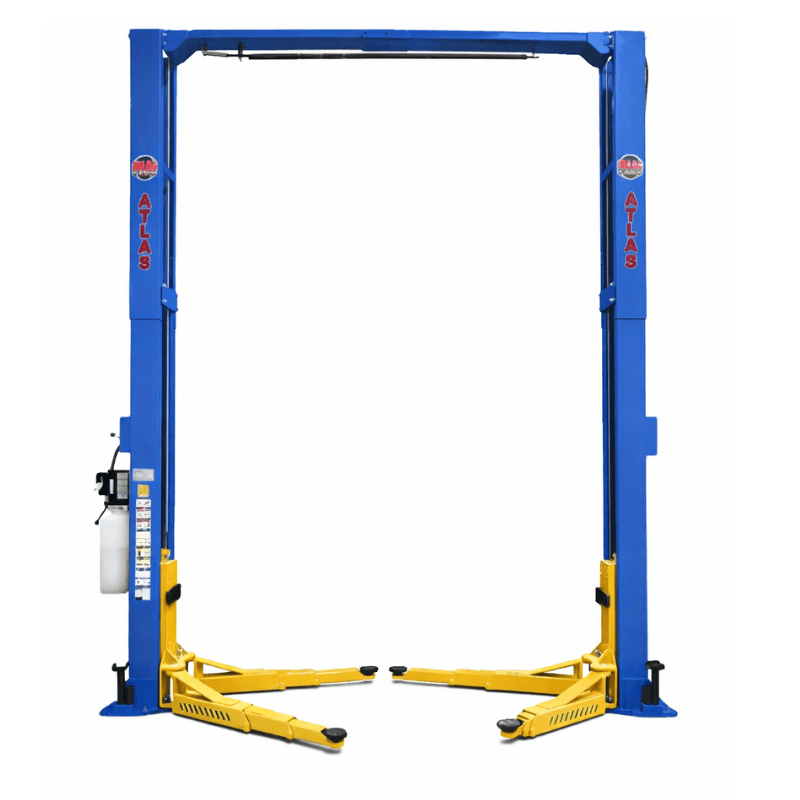

Atlas Automotive Platinum PVL12 - 12,000 lb 2 Post Vehicle Lift - Extra Wide & Tall - ALI Certified
- Regular price
- $7,799.00
- Regular price
- $7,799.00
Safety Requirements
Safety Requirements
IMPORTANT INSTALLATION REQUIREMENTS
2 & 4 post vehicle lifts must be installed on a concrete slab with a minimum thickness of 4 inches and 6.5 inches for heavier lifts and a minimum compressive strength of 3,000 PSI. Scissor lifts must be installed on a concrete slab with a minimum thickness of 3.9 inches and a minimum compressive strength of 3,000 PSI.
Installation on inadequate or improperly prepared concrete may result in lift instability, equipment failure, serious injury, or death.
It is the customer’s responsibility to verify that all installation surfaces and site conditions meet the manufacturer’s specifications prior to purchase and installation.
Forge Work Supply assumes no liability for damage, equipment failure, injuries, or losses resulting from improper installation, insufficient concrete specifications, or failure to follow manufacturer installation requirements.
Freight Shipping
Freight Shipping
Please review the following freight shipping information carefully before placing your order.
Shipping Delays & Availability
Seasonal shipping delays may occur. In some cases, orders may take up to 3 weeks for delivery. If you require expedited processing or need to confirm inventory availability prior to ordering, please contact our team for assistance.
Shipping Coverage
Freight shipping is available within the contiguous United States (lower 48 states).
Estimated fulfillment time for freight orders is typically 6–10 business days.
Two-Post, Four-Post & Scissor Lift Deliveries
Customers are required to provide a forklift or suitable unloading equipment at the time of delivery.
Additional Freight Services
The following optional freight services are available for an additional fee:
- Residential Delivery: $80
- Liftgate Service: $80
Please note: Liftgate service is not available for two-post lifts, four-post lifts, and scissor lifts. Contact us before ordering to confirm availability.
Customer Responsibilities
Customers are responsible for unloading freight shipments from the delivery truck.
A forklift, loading dock, or appropriate unloading equipment is strongly recommended for all heavy equipment deliveries.
Customers are responsible for any additional charges incurred due to:
- Failed delivery attempts
- Inability to unload freight at the delivery location
- Incorrect delivery information provided at checkout
Shipment Inspection & Damage Claims
All shipments must be carefully inspected before signing the Bill of Lading or delivery receipt.
- Any visible damage, shortages, or missing items must be noted on the delivery receipt at the time of delivery.
- Do not sign for damaged or incomplete shipments without documenting the issue with the carrier.
- Concealed damage or shortages must be reported within 48 hours of delivery.
Failure to document freight damage at the time of delivery may limit the ability to file a freight claim.
If no damage or shortages are noted upon delivery, the shipment will be considered received in acceptable condition.
Contact Information
For freight assistance, delivery questions, or damage claims, please contact our Customer Support team:
Phone: (866) 671-5917
Email: support@forgeworksupply.com
What is your Return and Refund Policy?
What is your Return and Refund Policy?
Returns and refunds for this item are subject to Forge Work Supply’s standard Return and Refund Policy.
Customers may request a return within 30 days of delivery, provided the item is unused, undamaged, and in its original packaging. Proof of purchase is required.
Change-of-mind returns may be subject to a restocking fee. Defective, damaged, incorrect, or lost items are eligible for a replacement or full refund, as applicable.
Refunds are issued to the original payment method after the returned item is received and inspected.
Atlas Auto Equipment
Atlas Automotive Platinum PVL12 - 12,000 lb 2 Post Vehicle Lift - Extra Wide & Tall - ALI Certified
- Regular price
- $7,799.00
Description
12,000 lb. Lifting Capacity. ALI Certified. Extra-Wide, Heavy-Duty Strength for Professional Automotive Shops.
The Atlas Platinum PVL12 2-Post Lift is designed for professional automotive shops that need the strength, clearance, and lifting capacity to service larger and heavier vehicles. With a 12,000 lb. lifting capacity and ALI certification, this commercial-grade lift is built to handle demanding service work involving cars, trucks, SUVs, vans, and other compatible vehicles within its rated capacity and dimensions.
Its extra-wide, extra-tall design provides generous vehicle clearance, while the overhead, open-floor configuration keeps the workspace beneath the vehicle clear of a floor-level crossbar. The PVL12 features three-stage symmetric arms, automatic arm restraints, direct-drive cylinders, and a secondary lock system to support reliable operation in busy professional service environments.
Built with heavy-duty columns, thick carriage door guards, and a padded overhead shutoff bar, the PVL12 combines structural strength with practical safety features. Its single-point lock release simplifies operation, while the included 8-piece truck adapter set and mounting hardware help prepare the lift for professional installation.
The PVL12 is powered by a 220V single-phase electrical system, with a 30A breaker recommended. Its premium power unit is backed by a two-year parts warranty, along with five-year structural and two-year hydraulic warranties.
Warranty: 5-year structural warranty, 2-year hydraulic warranty, and 2-year power unit warranty (parts only).
Perfect for: Professional automotive repair shops, commercial vehicle service centers, independent mechanics, and garages servicing cars, trucks, SUVs, vans, and other compatible vehicles.
Benefits of the Atlas Platinum PVL12 2-Post Lift
Higher Lifting Capacity
The 12,000 lb. capacity gives professional shops additional lifting capability for heavier vehicles, provided the vehicle meets the lift's dimensional and weight-distribution requirements.
Extra-Wide Vehicle Clearance
The generous 122 5/8" inside-column clearance and 109 5/8" drive-through width provide room for many wider vehicles and help accommodate demanding service applications.
Increased Lifting Height
With a maximum lift height of 73 5/8" without adapters and 85 1/2" with adapters, the PVL12 provides substantial working clearance for under-vehicle service.
Flexible Lifting-Point Positioning
The three-stage symmetric arms and included truck adapter set help technicians position the lift for compatible vehicle lifting points.
Improved Shop Accessibility
The overhead, open-floor design leaves the floor between the columns clear of a floor-level crossbar, helping maintain an unobstructed work area.
Built-In Safety Features
Automatic arm restraints, a secondary lock system, a single-point lock release, and a padded overhead shutoff bar provide important features for professional lift operation.
Long-Term Equipment Investment
A 5-year structural warranty, 2-year hydraulic warranty, and 2-year power unit parts warranty provide coverage for key lift components.
What Does ALI Certified Mean?
Independent Safety Testing. Verified Performance. Greater Confidence in Your Equipment.
ALI Certified means an automotive lift has been independently tested and certified through the Automotive Lift Institute (ALI) certification program to applicable industry safety and performance standards.
Rather than relying solely on a manufacturer's claims, ALI certification provides independent verification that a specific lift model has been evaluated for important safety and performance requirements. This helps professional repair shops, mechanics, and vehicle owners make a more informed equipment purchase.
Why ALI Certification Matters:
- Independent Evaluation: The lift undergoes testing by an independent, accredited testing organization.
- Safety-Focused Standards: Certification evaluates applicable requirements for lift construction, operation, and safety.
- Verified Certification: Certified lift models can be checked through the official ALI Certified Lift Directory.
- Professional Shop Confidence: Certification provides added assurance for shops investing in equipment for daily vehicle service.
Learn more about automotive lift safety and certification through the Automotive Lift Institute (ALI).
Features
Lifting Capacity & Certification
- 12,000 lb. lifting capacity
- ALI Certified
- Commercial-grade construction
- Designed for professional automotive service
- Suitable for compatible cars, trucks, SUVs, and vans
Structural Design
- Extra-wide, extra-tall configuration
- 7 1/2" x 14 1/2" column dimensions
- 6 mm column steel thickness
- 17 1/2" x 20 1/2" lift base dimensions
- Overhead, open-floor design
- Direct-drive cylinders
Arms & Safety Systems

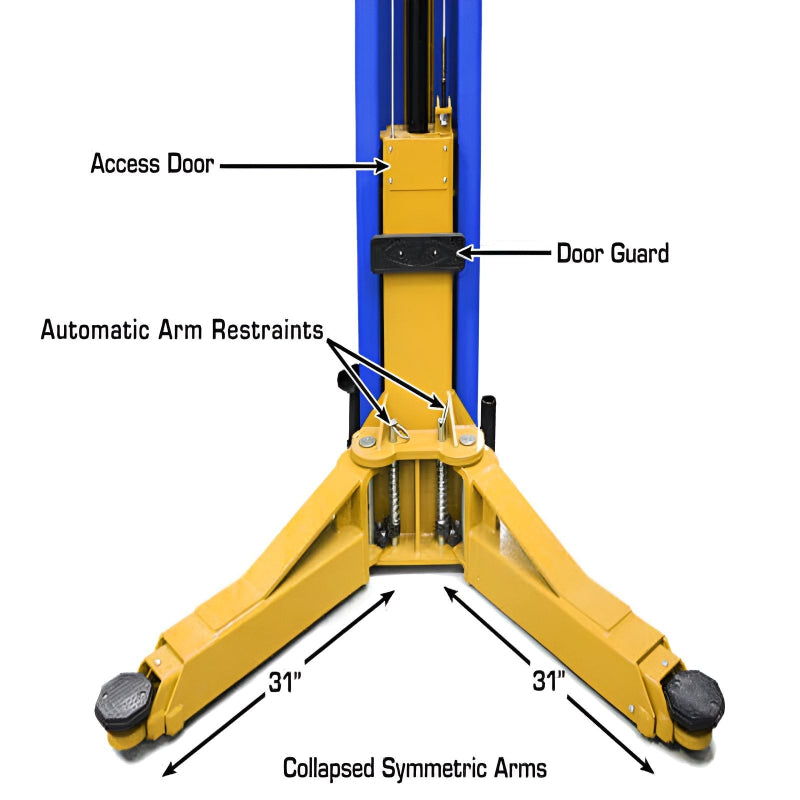

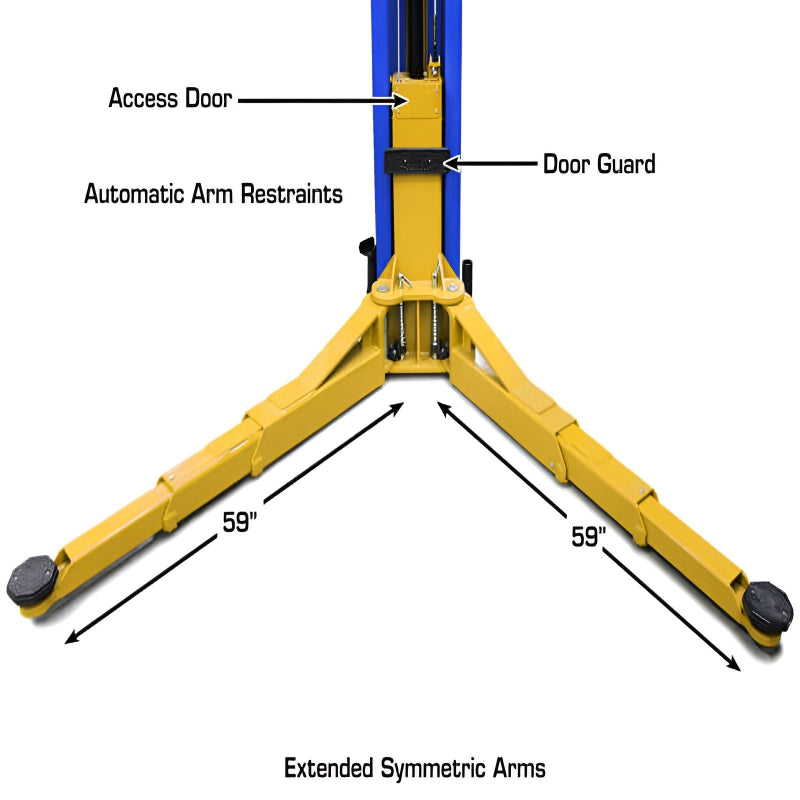

- Three-stage symmetric arms
- 4 1/2" minimum arm height
- 1.57" arm hole / adapter peg size
- Automatic arm restraints
- Single-point lock release
- Secondary lock system
- Thick carriage door guards
- Padded overhead shutoff bar
Adapters & Included Items

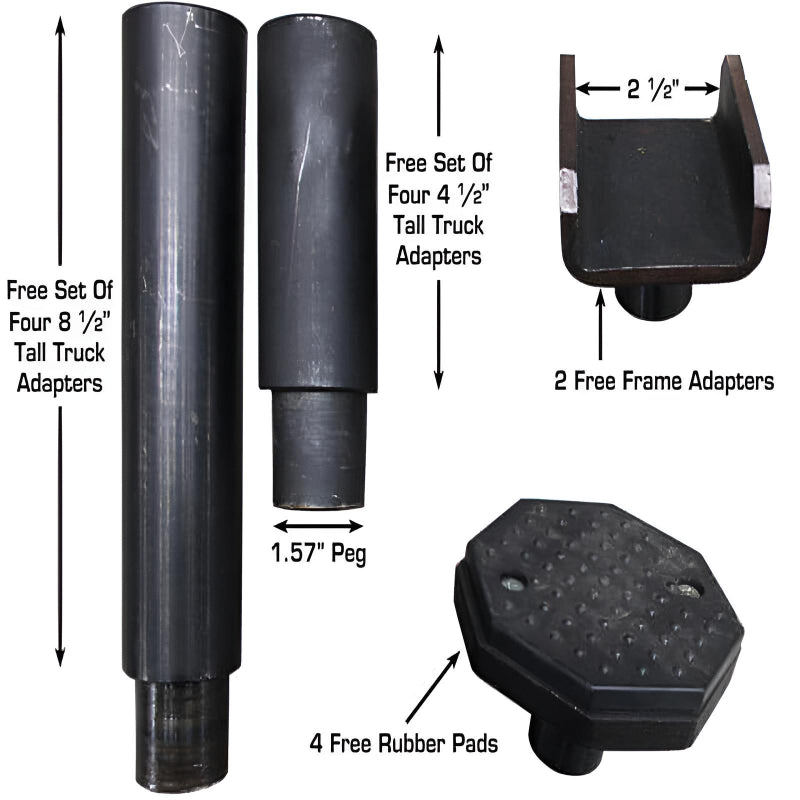

- 8-piece truck adapter set included
- Four 4.5" adapters
- Four 8.5" adapters
- Mounting hardware included
- Adapters must be used according to the manufacturer's instructions
Power & Electrical
- 220V single-phase electrical requirement
- 30A breaker recommended
- Requires 3–5 gallons of AW32/AW46 hydraulic oil
- Hydraulic oil not included
- Premium power unit
Warranty & Finish
- 5-year structural warranty
- 2-year hydraulic warranty
- 2-year power unit warranty (parts only)
- Powder coat finish
- Mounting hardware included
- 8-piece truck adapter set included
Specifications
Capacity & Height
- Capacity: 12,000 lb.
- Overall Height — Standard: 165" (13' 9")
- Overall Height — Alternate: 177" (14' 9")
- Maximum Lift Height Without Adapters: 73 5/8"
- Maximum Lift Height With Adapters: 85 1/2"
- Minimum Arm Height: 4 1/2"
Width & Clearance
- Overall Floor Width: 150 3/8" (12' 6 3/8")
- Outside Column to Outside Column: 139 1/8" (11' 7 1/8")
- Inside Column Clearance: 122 5/8" (10' 2 5/8")
- Drive-Through Width: 109 5/8" (9' 1 5/8")
Column & Base Dimensions
- Column Size: 7 1/2" x 14 1/2"
- Column Steel Thickness: 6 mm

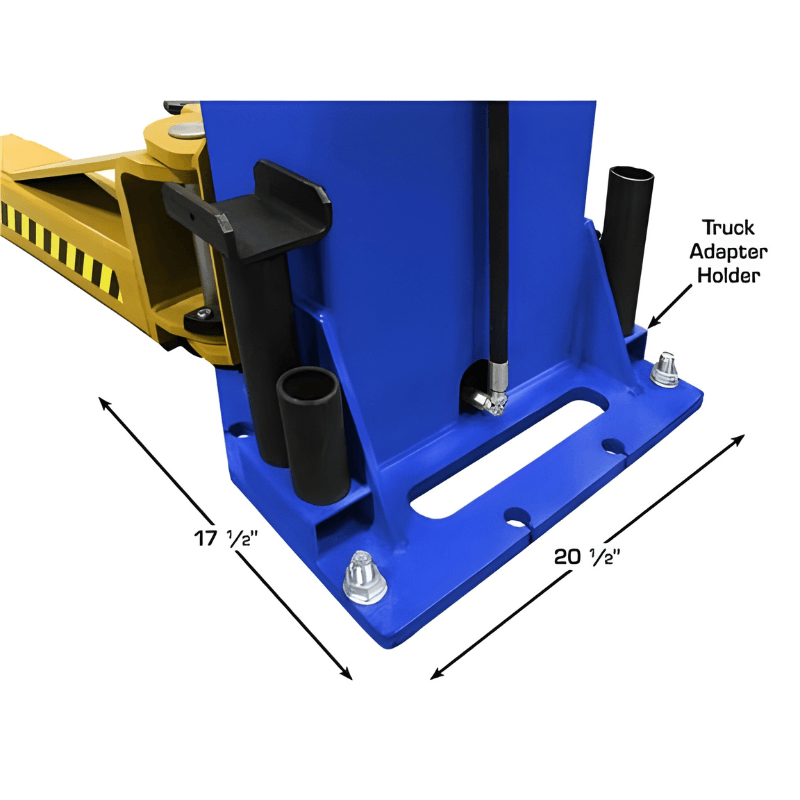

- Base Dimensions: 17 1/2" x 20 1/2"
- Arm Hole / Adapter Peg Size: 1.57"
- Included Adapter Heights: Four 4.5" and four 8.5"
Electrical & Hydraulic
- Motor / Electrical Requirement: 220V single-phase
- Recommended Breaker: 30A
- Hydraulic Oil: 3–5 gallons AW32/AW46
- Oil Included: No
- Power Unit: Premium power unit
Shipping & Installation

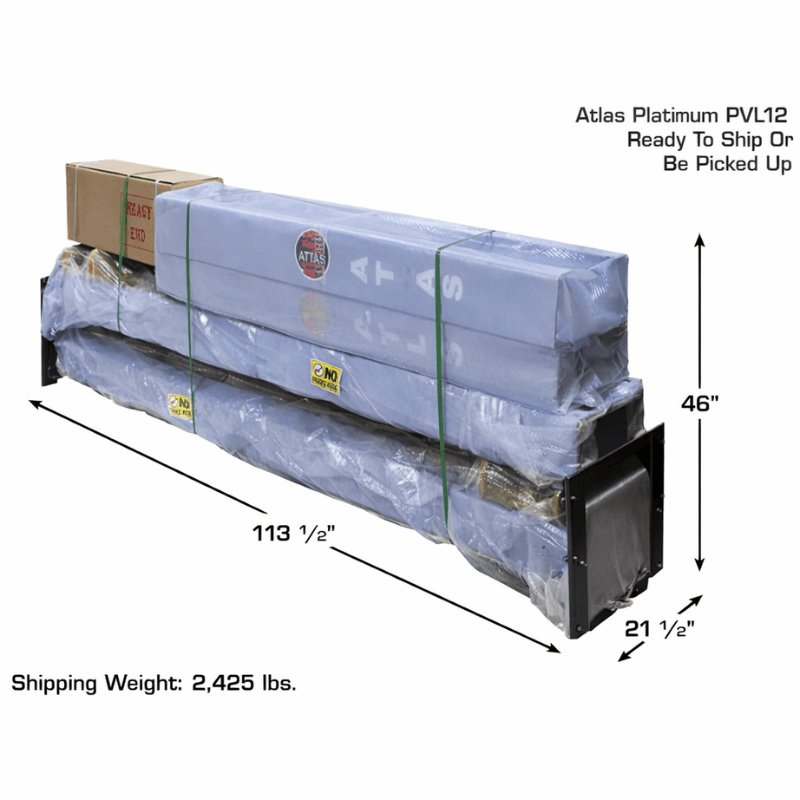

- Pallet Dimensions: 113 1/2" long x 46" tall x 21 1/2" wide
- Shipping Weight: 2,425 lb.
- Minimum Concrete Requirement: 6" thick at 3,000 PSI
- Mounting Hardware: Included
- Installation: Verify site requirements before installation
Certification & Warranty
- Certification: ALI Certified
- Structural Warranty: 5 years
- Hydraulic Warranty: 2 years
- Power Unit Warranty: 2 years, parts only
- Finish: Powder coat
PVL12 Product Manual
Atlas Platinum PVL12 Product Manual
Open or Download PVL12 Manual (PDF)
Important Installation Note: Before purchasing, verify ceiling height, overall floor width, column clearance, drive-through width, and concrete thickness and strength. The PVL12 requires a minimum 6" concrete slab rated at 3,000 PSI according to the supplied specifications. Hydraulic oil is not included. Confirm that the vehicle's weight, dimensions, lifting points, and weight distribution are compatible with the lift. Always follow the manufacturer's installation and operating instructions.
-
