Description

Pneumatic Tilt-Arm Automation. Integrated Assist Arm Rigging. Micro-Precision Balancer Telemetry for Elite Fleet and Custom Wheel Garages.

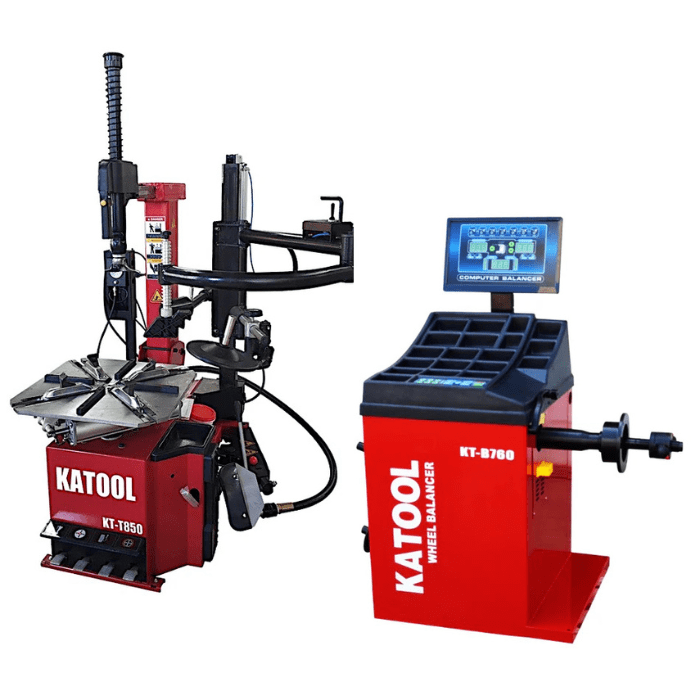

The Katool KT-T850 Tilt-Arm Tire Changer and KT-B760 Wheel Balancer Combo is an advanced commercial-grade shop equipment package engineered to conquer demanding low-profile tire beads, slow service lane turnovers, and expensive rim face gouges. By combining a heavy-duty, pneumatically driven tilt-arm tire changer with an automated microprocessor-controlled dynamic balancer, this elite equipment package optimizes daily workshop workflow. It is the ultimate asset for high-volume tire centers, commercial service bays, and performance-minded enthusiasts looking to process oversized wheel setups with effortless accuracy.

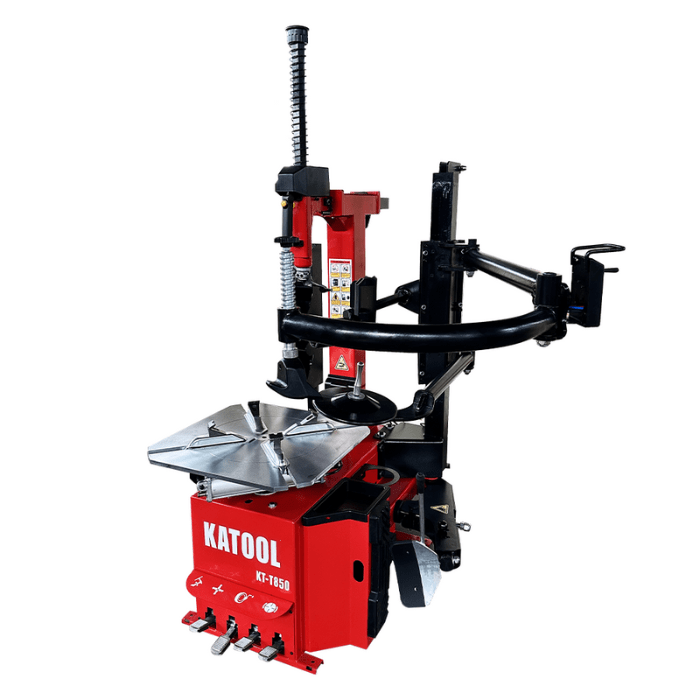

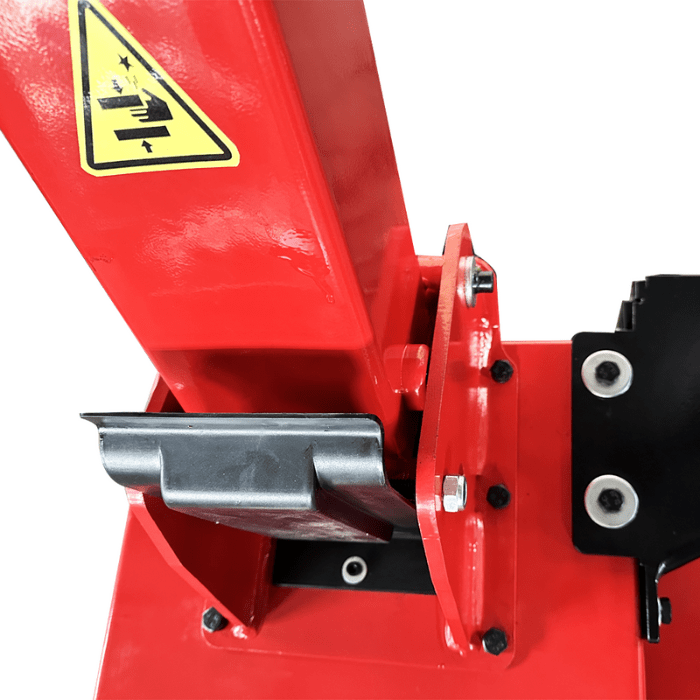

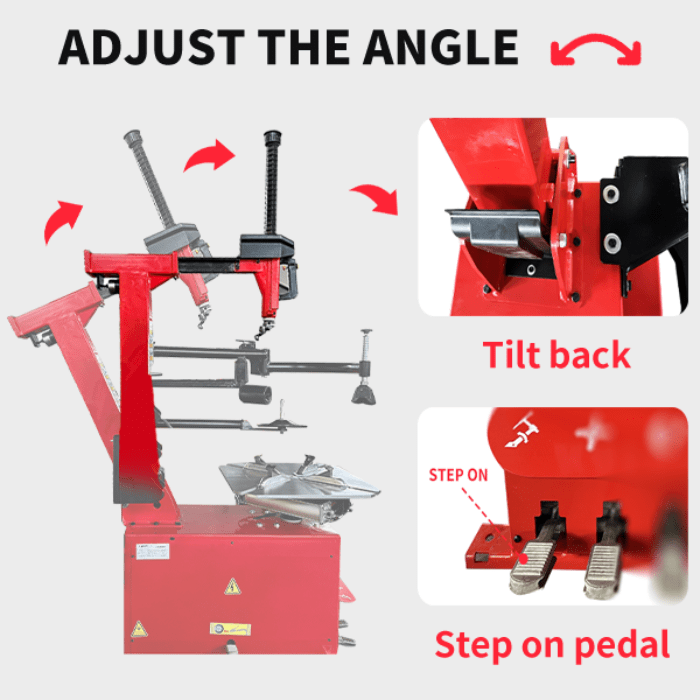

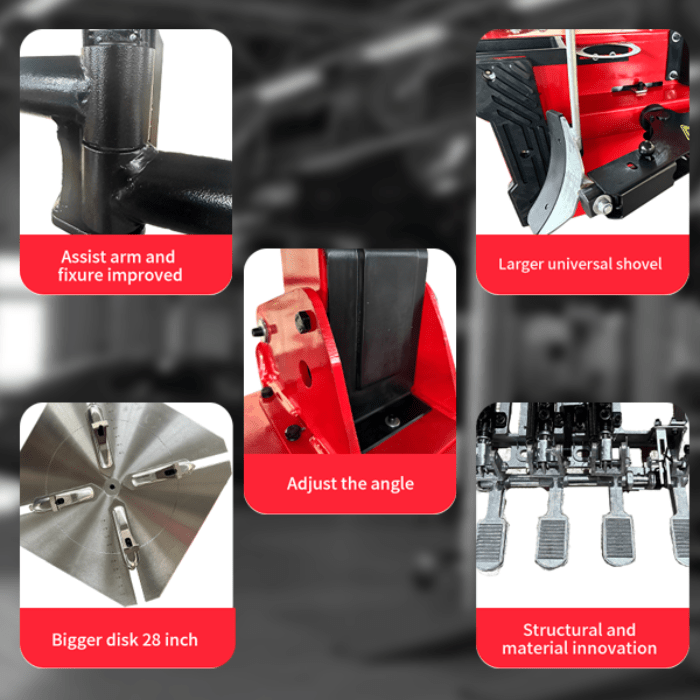

The KT-T850 tire changer is an absolute powerhouse, utilizing an industrial-grade 2.0 HP (1.5 kW) drive motor that maintains an uninterrupted 6.8 RPM turntable spin velocity under maximum load conditions. Built to handle heavy wide-profile tire assemblies up to 47 inches (1200 mm) in total diameter and 15 inches (380 mm) in tire width, its rigid chassis houses a professional pneumatic tilt-back tower. This system features an expansive outside clamping envelope of 14" – 26" and an inside rim capacity spanning 16" – 28". To safely master stiff low-profile performance beads and run-flat sidewalls without manual strain, the KT-T850 comes equipped with robust pneumatic assist arms, a high-velocity bead-blast seating system, and premium alloy steel jaws that anchor custom rims securely without scraping delicate clear-coats.

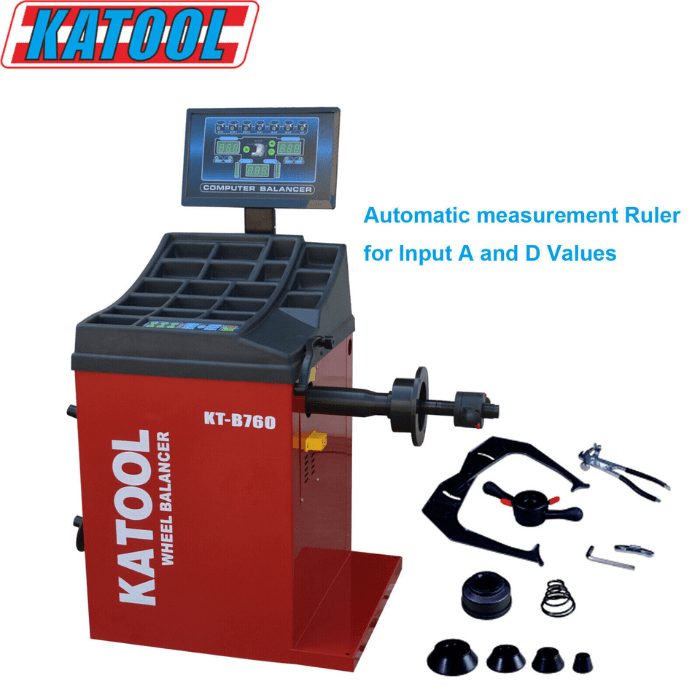

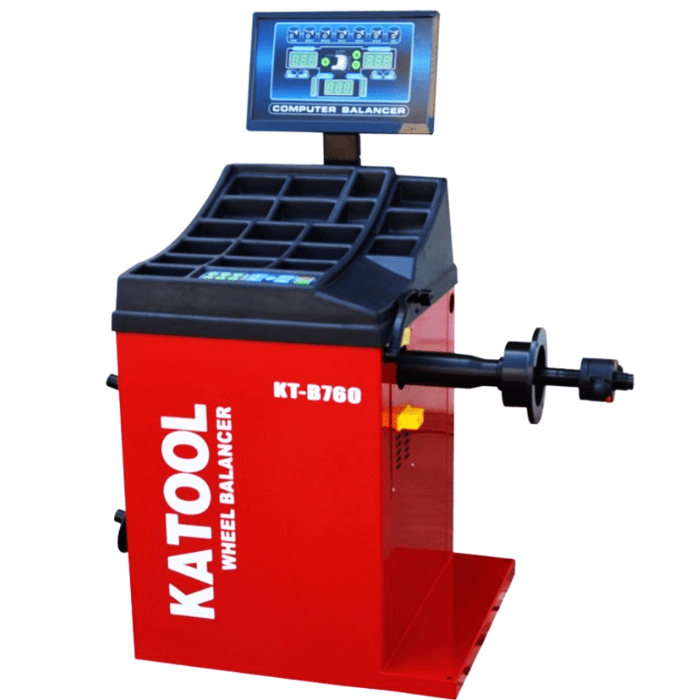

To eliminate steering wheel shudder and ensure pristine tire wear profiles, the accompanying KT-B760 digital wheel balancer measures structural wheel weight imbalances down to an ultra-precise ±1g calibration threshold. Driven by an efficient 0.25 kW motor spinning assemblies at 180 RPM, it computes weight placement metrics in a lightning-fast 7-second cycle window. The balancer supports large wheels weighing up to 143 lbs (65 kg) with maximum diameters up to 34.6" (880 mm), rim widths from 3" to 12", and center hub bores under 5.31" (135 mm). It uses an automated measurement ruler that auto-inputs Distance and Diameter data to simplify setups and keep service bays moving efficiently.

Engineered for continuous service in harsh, high-output garage environments, the KT-T850 changer weighs a rock-solid 750 lbs (340 kg) to minimize structural frame twisting during tough bead-breaking sequences. Both machines use accessible 110V single-phase electrical requirements and intuitive, foot-pedal control networks. This high-productivity Katool combo minimizes worker lower back fatigue and accelerates shop productivity while ensuring pristine finishes on custom alloy rims.
