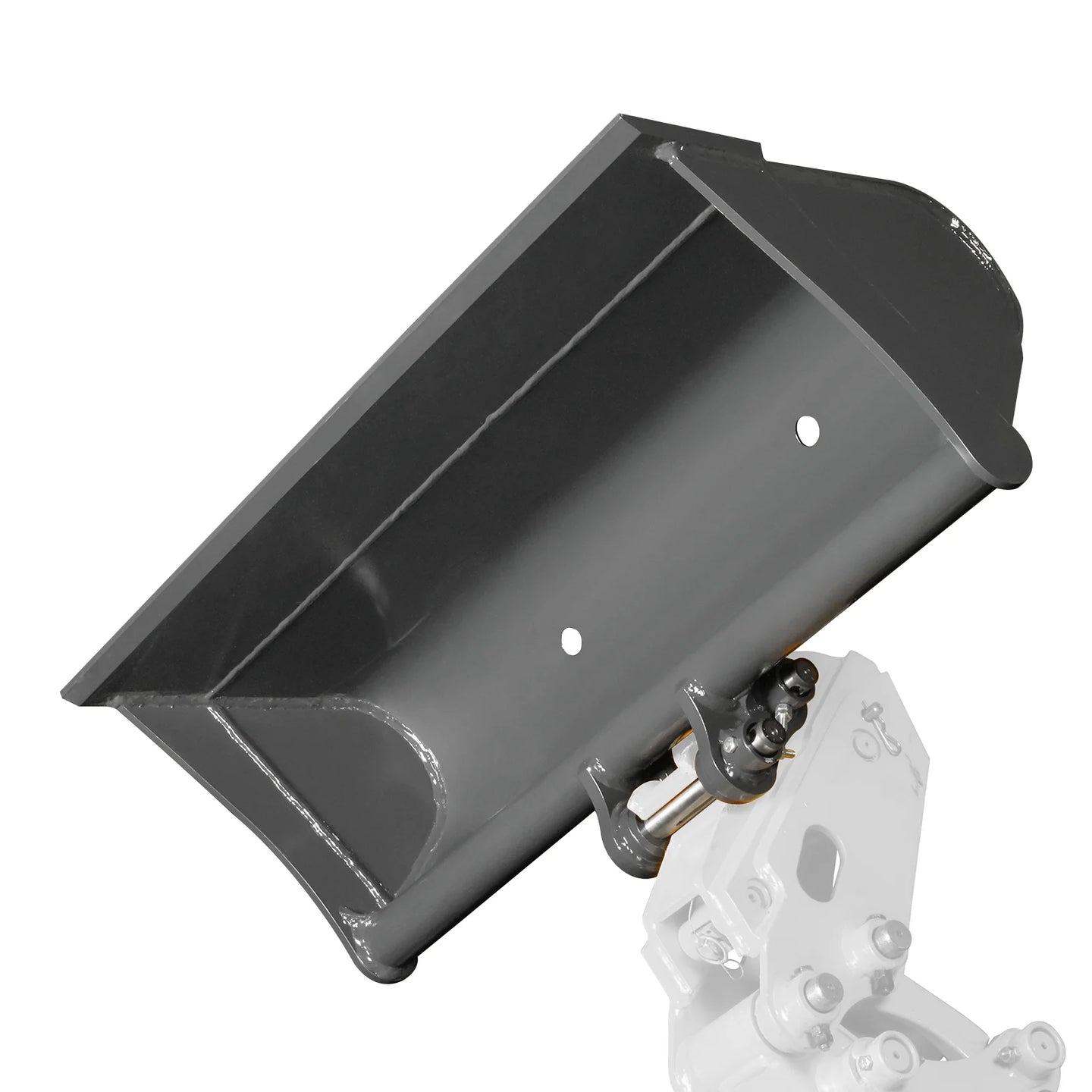

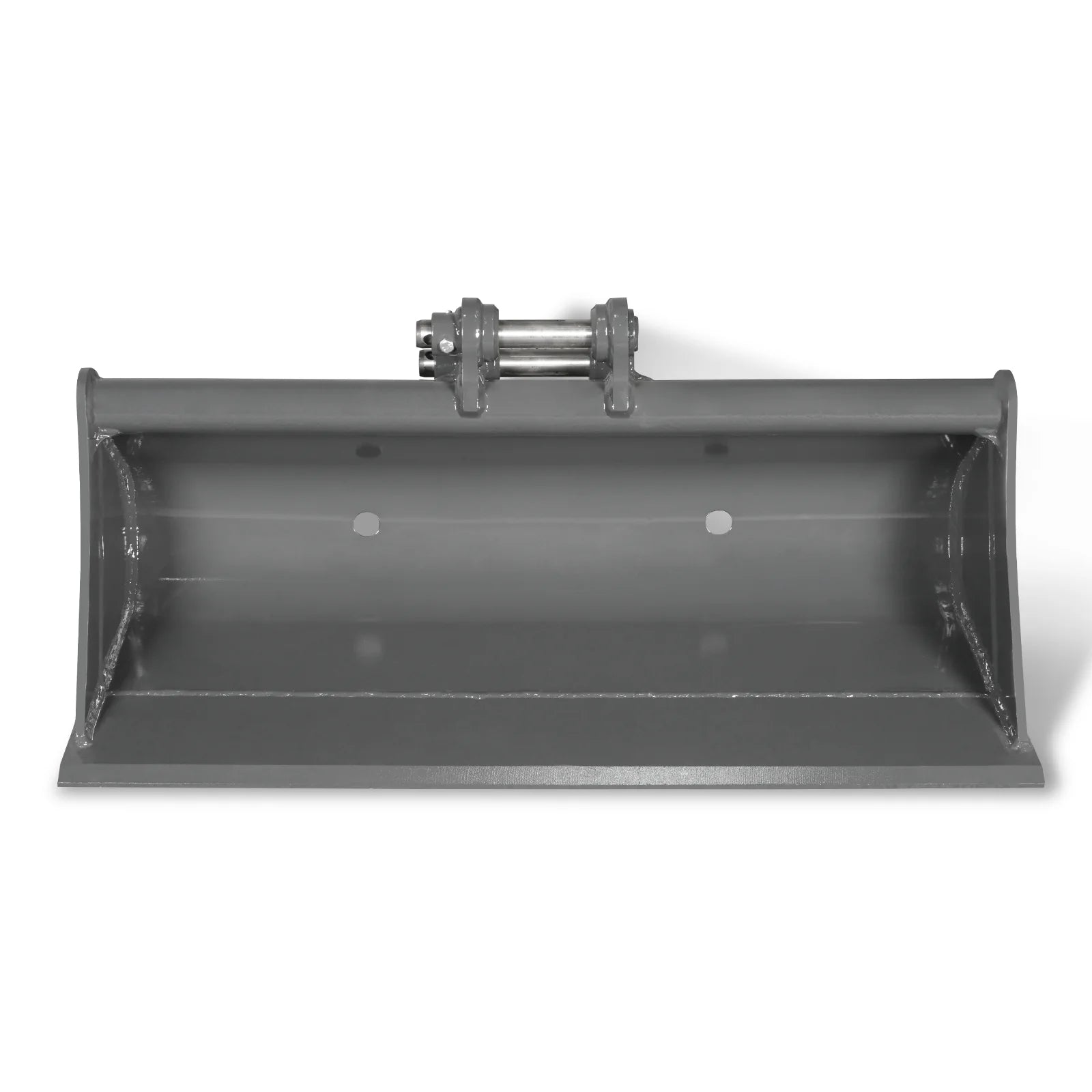

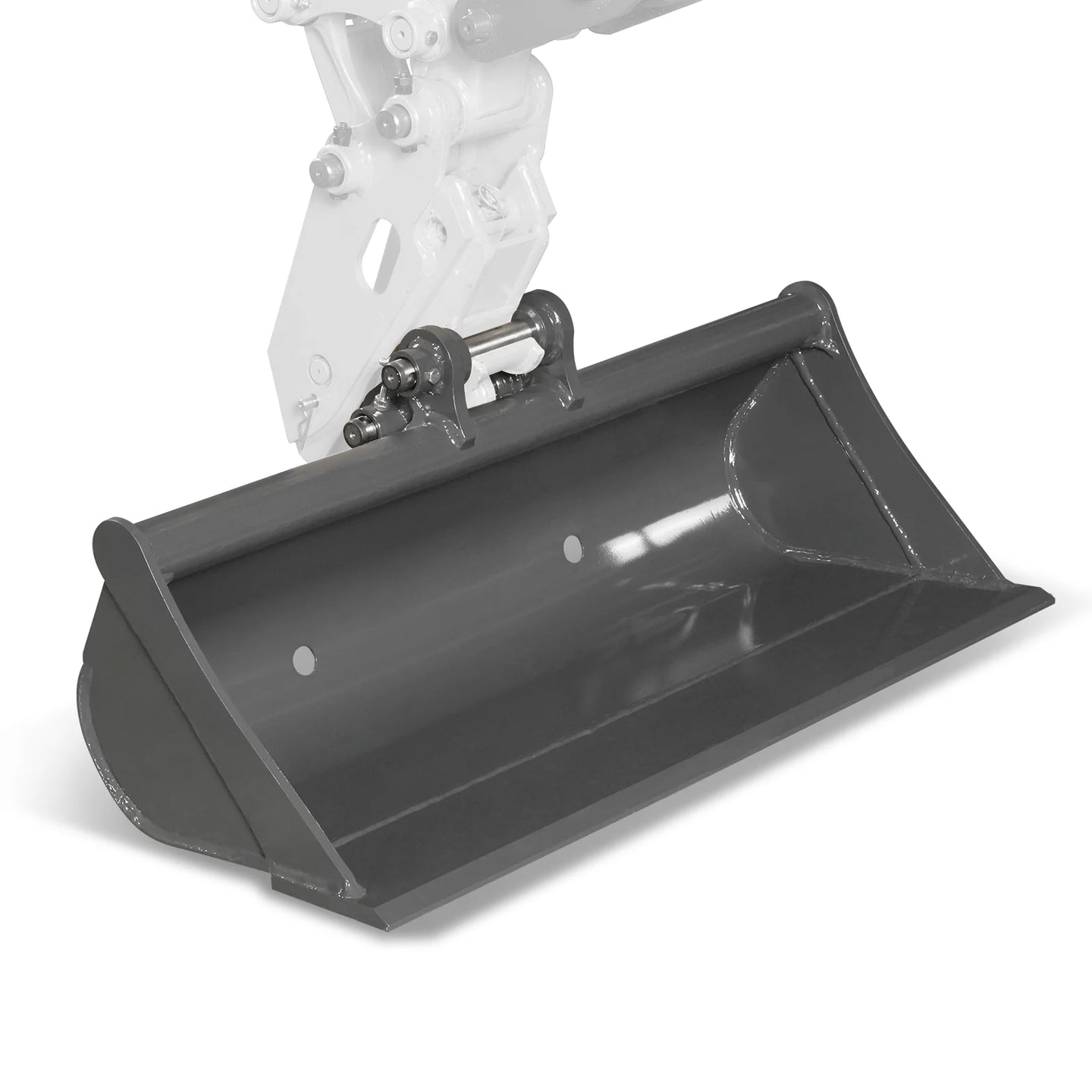

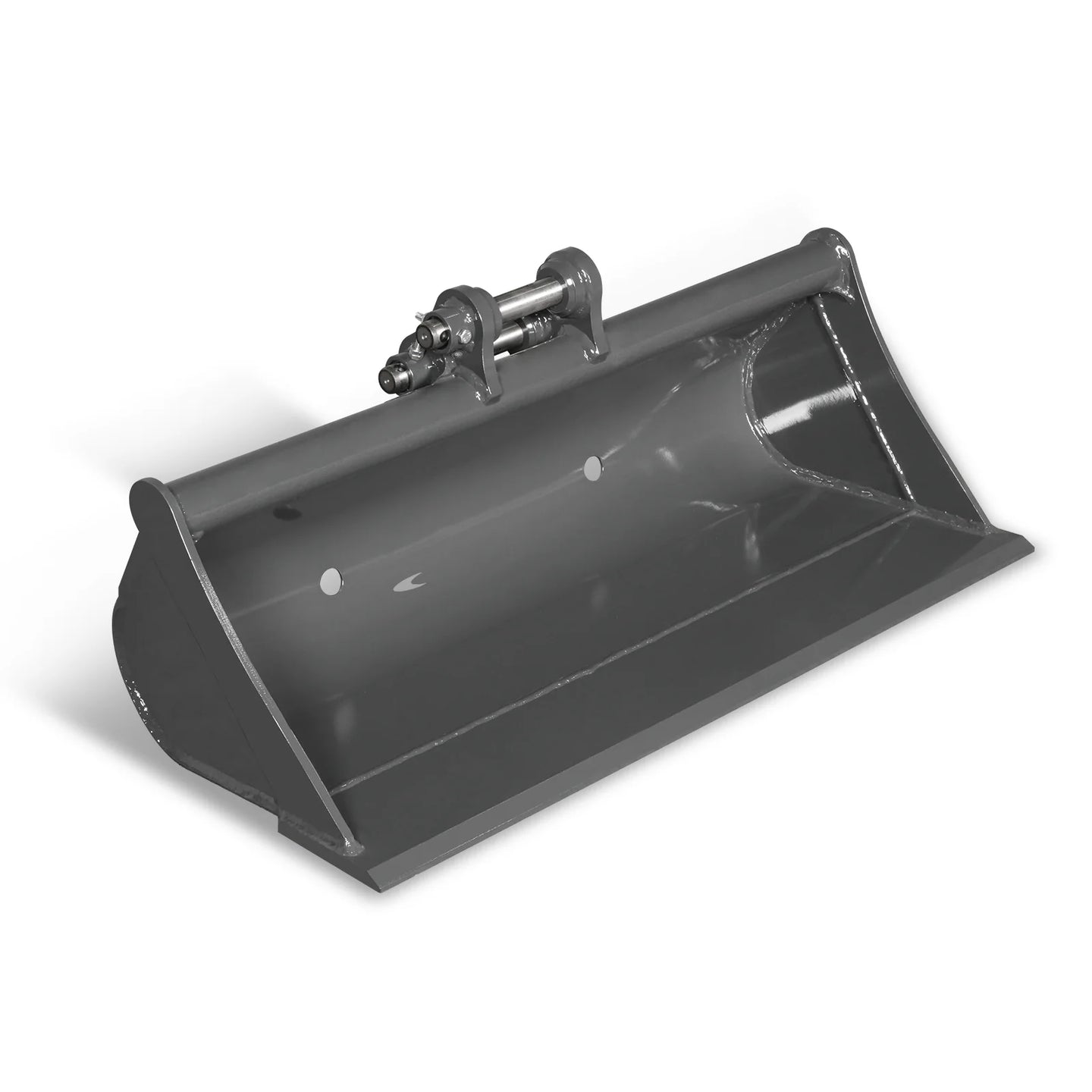

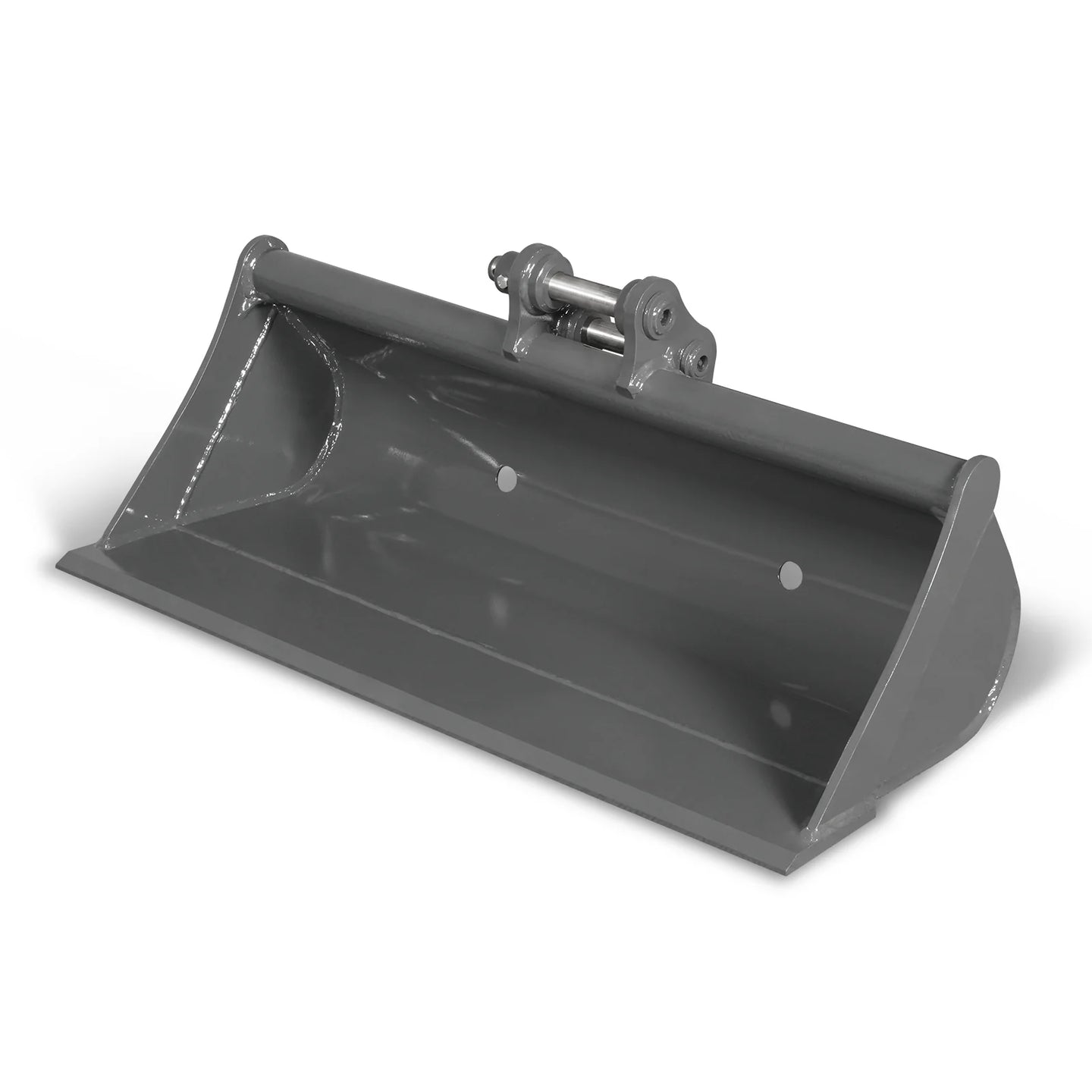

39" Digging Bucket for MechMaxx Mini Excavators

Compatible with Mini Excavator SKU: 150533 and 150534, this 39-inch digging bucket is designed to deliver an ideal combination of capacity, strength, and control for compact excavation equipment. Its balanced width allows operators to efficiently move soil and materials while maintaining maneuverability in tighter working areas.

Constructed from high-strength Q355 steel, the bucket body provides superior structural strength and durability compared to many standard attachments. Reinforced side plates and a hardened cutting edge help maintain reliable performance when working in demanding soil and excavation conditions.

The bucket floor is built using NM360 abrasion-resistant steel, increasing resistance to wear and significantly extending the life of the attachment in harsh environments. An optimized bucket design promotes smooth penetration into the ground, efficient loading, and quick material release to improve productivity and reduce strain on the machine.

Precision manufacturing is used for critical components. Pin holes are machined using a five-axis machining process, ensuring accurate alignment for smooth installation and reliable long-term operation.

The bucket pins are made from 40Cr alloy steel and are both tempered and induction hardened to provide enhanced wear resistance and impact durability. Bucket teeth and side cutters are produced from F2 and 30MnB materials, offering excellent performance under high-impact and abrasive digging conditions.

Whether used for trenching, grading, or general excavation work, this 39" digging bucket provides the durability, efficiency, and performance needed to maximize the capability of your mini excavator.

Specifications

• Bucket Width: 39 in
• Weight: 154 lbs
• Compatible Models: Mini Excavators (SKU: 150533, 150534)
• Bucket Material: Q355 High-Strength Steel
• Bucket Bottom: NM360 Wear-Resistant Steel
