Castair

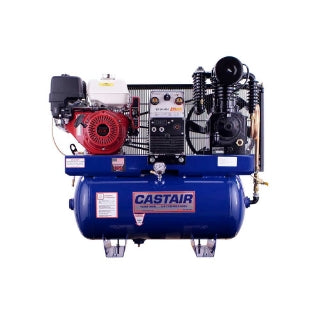

CASTAIR 30-Gallon Industrial Air Compressor Generator Welder – GX390, 19.7 CFM @ 175 PSI, 5000W
- Regular price
- $10,074.00
- Regular price
- $10,074.00
Couldn't load pickup availability
Freight Delivery Information
Freight Delivery Information
Large and heavy equipment ships via LTL freight. Because freight carriers charge extra fees for certain types of delivery, please review the details below so you know exactly what to expect.
Freight Delivery (Required)
Large and heavy equipment ships via LTL freight due to size and weight.
Product pricing includes standard shipping. However, freight delivery requires special carrier handling, which incurs a flat freight handling charge applied at checkout.
This charge covers carrier coordination, scheduling, and delivery of oversized equipment and applies to freight-shipped items regardless of destination.
Liftgate Service
(Optional – Based on Delivery Location)
Liftgate service is required if you cannot unload the equipment from the freight truck yourself. A liftgate is a hydraulic platform on the back of the truck that lowers the crate to the ground.
If you do not have a forklift or loading dock, the carrier will require liftgate service and apply a fee.
How do you know if additional services apply to your delivery?
If your delivery location does not have a forklift or loading dock, Liftgate Service will be required. You will see an option box on the product page where you can select the appropriate delivery option so the correct fee is added to your order.
If you're not sure which option you need, contact us at support@forgeworksupply.com or call us at (866) 671-5917 and we’ll help you determine the correct selection
before you place your order
Delivery Requirements Disclaimer
If you do not select the appropriate delivery option (such as Liftgate Service) and you do not have the equipment or personnel needed to safely unload your product(s), your shipment may be delayed. Selecting the correct option ensures fast, smooth delivery without interruptions.
Estimated shipping time
Estimated shipping time
You can typically expect your items to arrive within 4–7 business days after shipment, depending on your location and freight scheduling. Shipping Policy.
What is your Return Policy?
What is your Return Policy?
At Forge Work Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:
1. Return Window
You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.
2. Who Pays for Return Shipping?
- If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
- If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.
3. Damaged or Defective Items
Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.
4. Changed Your Mind?
If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).
5. Refund Processing
Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.
If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@forgeworksupply.com and we’ll look into it immediately.
6. Restocking Fees
In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.
Typically Ships in 7 Business Days
The CASTAIR 3-in-1 compressor, generator, and welder combo provides tons of utility, powered by a Honda GX390 engine. The compressor uses a two stage cast iron pump, running with oil lubrication at a low 808 RPM to make the machine quieter, with longer life than oil-less compressors. This compressor also has ASME-compliant safety valves installed, and a 30 gallon tank ASME-compliant tank. The generator has a 5000 watt running, 5500 watt surge output, with two 115V outlets and one 230V outlet. The 40A to 240 DC arc welder features universal 50mm quick connectors, duty cycle ranging from 100% at 130A, to 35% at 240A. The Honda GX390 engine features a 12V alternator, recoil and electric start, and a 1.6 gallon fuel tank to ensure this 3-in-1 machine performs.
Features
- 808 RPM, oil-lubed cast iron pump for quiet operation and long service life
- 24.7 CFM at 0 PSI, 19.7 CFM at 100 PSI
- Tapered roller bearings at both ends of crankshaft for superior support & reduced friction
- Precision steel connecting rods with automotive-style rod insert bearings at crankshaft and wrist pin
- Disc and spring valves for ease of service, efficiency, and maximum reliability
- Pistons feature four rings for higher efficiency and reduced oil carry-over
- Automotive-style filters with paper element for clean intake air and quiet operation
- Easy-to-read sight glass for monitoring proper oil level at a glance
- 5000-watt running / 5500-watt surge generator with two 115V 17A outlets and one 230V 23A outlet
- 40A–240A DC arc welder with universal 50mm quick connectors
- Welder Duty Cycle: 130A = 100%, 180A = 60%, 240A = 35%
- 30-Gallon ASME-compliant powder-coated tank with ASME safety valves
- Rigid metal guard keeps belt completely enclosed during operation
- Industrial-grade Honda GX390 engine with 12-volt alternator, recoil & electric start, and 1.6-gallon fuel tank
- Battery and cables sold separately
Specifications
| Pump Speed | 808 RPM |
| Air Delivery | 24.7 CFM @ 0 PSI 19.7 CFM @ 100 PSI |
| Tank Size | 30-Gallon ASME-Compliant Powder-Coated Tank |
| Generator Output | 5000W Running / 5500W Surge Two 115V 17A Outlets One 230V 23A Outlet |
| Welder Output | 40A–240A DC Arc Welder Duty Cycle: 130A = 100%, 180A = 60%, 240A = 35% |
| Engine | Honda GX390, 12V Alternator, Recoil & Electric Start |
| Pistons | Four-Ring Pistons for Higher Efficiency |
| Bearings | Tapered Roller Bearings on Both Ends of Crankshaft |
| Valves | Disc & Spring Valves for High Efficiency & Reliability |
| Air Intake | Automotive-Style Filter with Paper Element |
| Oil Monitoring | Easy-View Sight Glass |
| Discharge Tube | Copper or Stainless Braided Tube |
| Belt Guard | Rigid Fully Enclosed Metal Guard |
| Electrical Requirement | Battery & Cables Sold Separately |
| Dimensions (L×W×H) | 48 × 23 × 42 |
| Shipping Weight | 650 lbs |
-
